COGIS - WELL SCOUT CARD

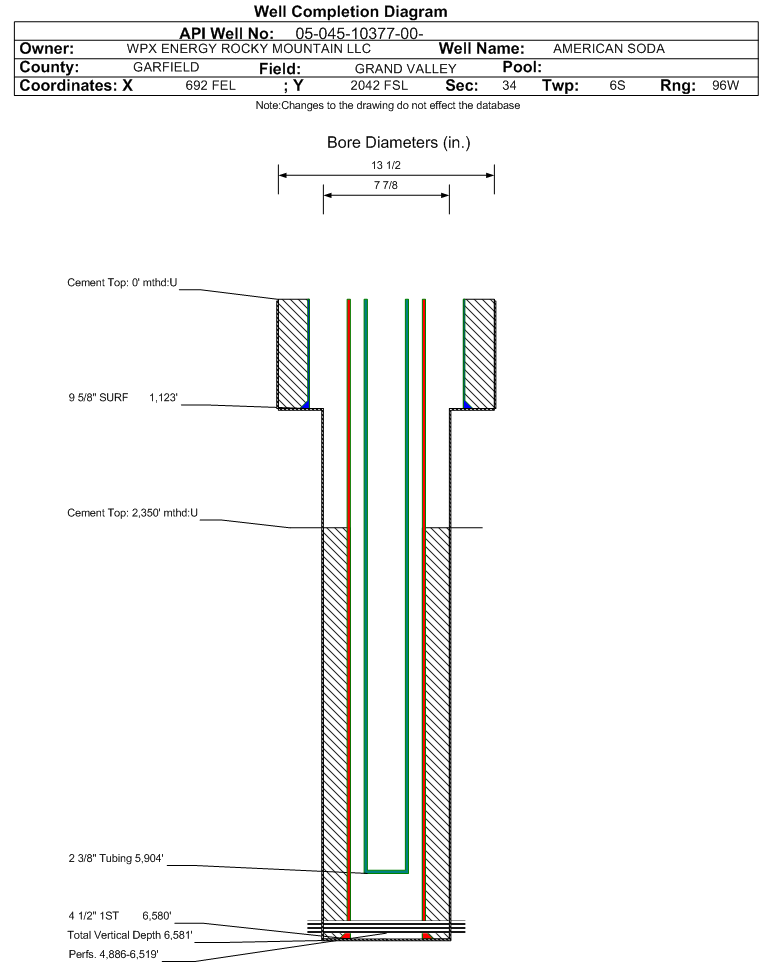

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10377		Well Classification: GW Status: PR - 8/29/2005
Well Name/No:AMERICAN SODA #GM 643-34
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/29/2005
FacilityID:275681LocationID:335261
County:GARFIELD #045Location:NESE 34 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5370 ft.
Basin:PICEANCE BASIN
Planned Location:2042FSL  692 FELLat/Long: 39.478848 / -108.087676Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.478924 / -108.087639Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/29/2005             Measured TD: 6617 ft.    Vertical TD: 6581 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/29/2005
Wellbore PermitDIRECTIONAL
Permit #:20043314 Expiration Date:1/20/2006
Proposed Top PZ Location:Sec: Twp: Footage: 2557 FSL  751 FEL
Bottom Hole Location:Sec: Twp: Footage: 2557 FSL  751 FEL
Proposed Depth/Form:6696 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:6/7/2005
Spud Date:4/4/2005Spud Date Is:ACTUAL
Measured TD:6617 ft.Measured PB depth:6565 ft.
True Vertical TD:6581 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2557 FSL  751 FEL
Bottom Hole Location:Sec: Twp: Footage: 2557 FSL  751 FEL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1123 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1123 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6580 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 900, Top: 2350 ft., Bottom: 6580 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1701 ft.NN
FORT UNION2018 ft.NN
MESAVERDE3458 ft.NN
CAMEO6071 ft.NN
ROLLINS6546 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/29/2005                 Interval Top: 4886 ft.    Interval Bottom: 6519 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.250 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/7/2005
Treatment Summary:4750 GALS 7 1/2% HCL, 739800# 30/50, 16908 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:5904 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/31/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1052
CASING_PRESS 1054
MCF_GAS 1052
TUBING_PRESS 903
Perforation Data:
Interval Top:4886 ft.# Of Holes:109
Interval Bottom:6519 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)19
Total Gas Produced (MCF)15102
GOR794842
GOR DeterminationMCFE
Average BOE per Day7.195
Average MCFE per Day41.722

 Federal Financial Assurance  i

 Tribal Well  i No
