COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10344		Well Classification: GW Status: PR - 8/23/2010
Well Name/No:GGU BROOME #34C-30-691
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/23/2010
FacilityID:275531LocationID:335227
County:GARFIELD #045Location:SESE 30 6S91W 6
Field:MAMM CREEK - #52500Elevation:5910 ft.
Basin:PICEANCE BASIN
Planned Location:874FSL  1022 FELLat/Long: 39.493631 / -107.590941Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.493812 / -107.590858Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/23/2010             Measured TD: 7430 ft.    Vertical TD: 7263 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/23/2010
Wellbore PermitDIRECTIONAL
Permit #:20043243 Expiration Date:1/9/2006
Proposed Top PZ Location:Sec:30 Twp: 6S 91W Footage: 932 FSL  1992 FEL
Bottom Hole Location:Sec:30 Twp: 6S 91W Footage: 932 FSL  1992 FEL
Proposed Depth/Form:7404 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH UN Unit Number:COC 052447X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:3/23/2005
Spud Date:2/4/2005Spud Date Is:ACTUAL
Measured TD:7430 ft.Measured PB depth:7365 ft.
True Vertical TD:7263 ft.True Vertical PB depth:7198 ft.
Top PZ Location:Sec:30 Twp: 6S 91WFootage: 932 FSL  1992 FEL
Bottom Hole Location:Sec:30 Twp: 6S 91WFootage: 932 FSL  1992 FEL
Log Types:HRI/SD/DSN/CBL/TEMP LOG

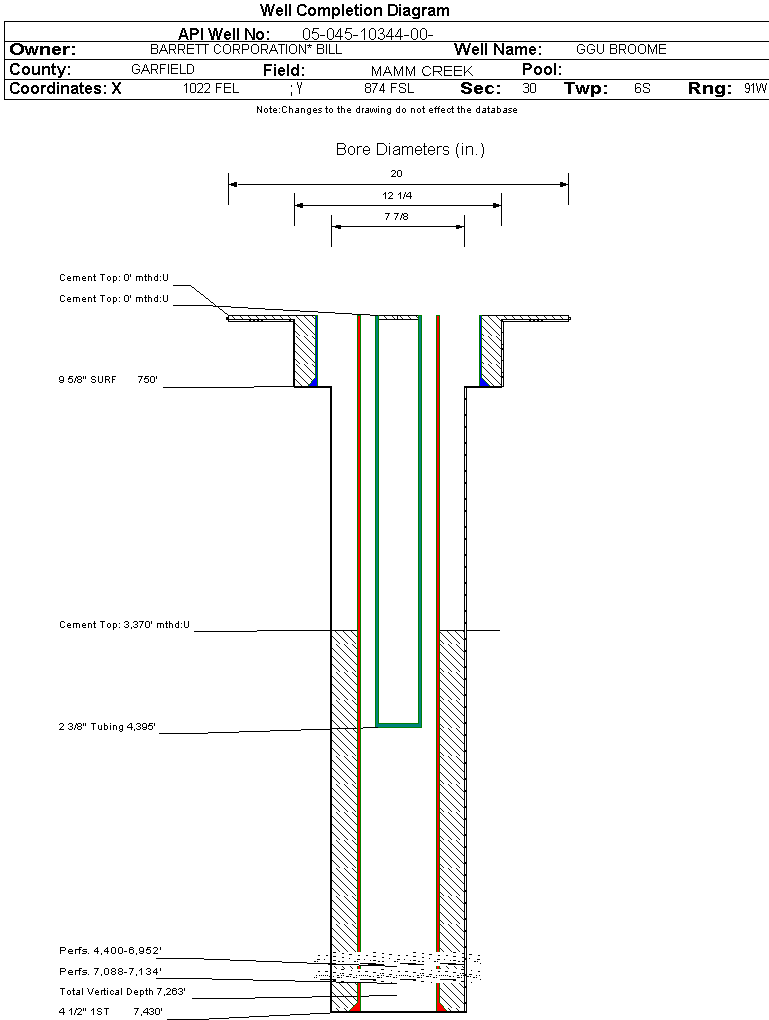

Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 750 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 230, Top: 0 ft., Bottom: 750 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7430 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1200, Top: 3370 ft., Bottom: 7430 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK - CAMEO3460 ft.NN
ROLLINS7088 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 7/19/2005                 Interval Top: 7088 ft.    Interval Bottom: 7134 ft.

 Completed Information for Formation ROLLINS
1st Production Date:N/AChoke Size:0.750 in.
Formation Name:ROLLINSCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/23/2005
Treatment Summary:1,845 BBLS OF SLICK WATER, 61,800 LBS OF 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:4395 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/19/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_GOR 65
CALC_MCF_GAS 65
CASING_PRESS 580
MCF_GAS 65
TUBING_PRESS 200
Perforation Data:
Interval Top:7088 ft.# Of Holes:16
Interval Bottom:7134 ft.Hole Size:0.36 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 8/23/2010                 Interval Top: 4400 ft.    Interval Bottom: 6952 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.750 in.
Formation Name:WILLIAMS FORKCommingled:Yes
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/23/2005
Treatment Summary:1,757 BBLS OF SLICK WATER, 109,300 LBS OF 20/40 SAND; 3,162 BBLS FR WATER, 155,600 LBS 20/40 SAND; 6,980 BBLS OF 2% CLAYFIX, 308,000 LBS OF 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:4395 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/19/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_GOR 1226
CALC_MCF_GAS 1226
CASING_PRESS 580
MCF_GAS 1226
TUBING_PRESS 200
Perforation Data:
Interval Top:4400 ft.# Of Holes:106
Interval Bottom:6952 ft.Hole Size:0.36 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)8
Total Gas Produced (MCF)4348
GOR543500
GOR DeterminationMCFE
Average BOE per Day2.082
Average MCFE per Day12.044

 Federal Financial Assurance  i

 Tribal Well  i No
