COGIS - WELL SCOUT CARD

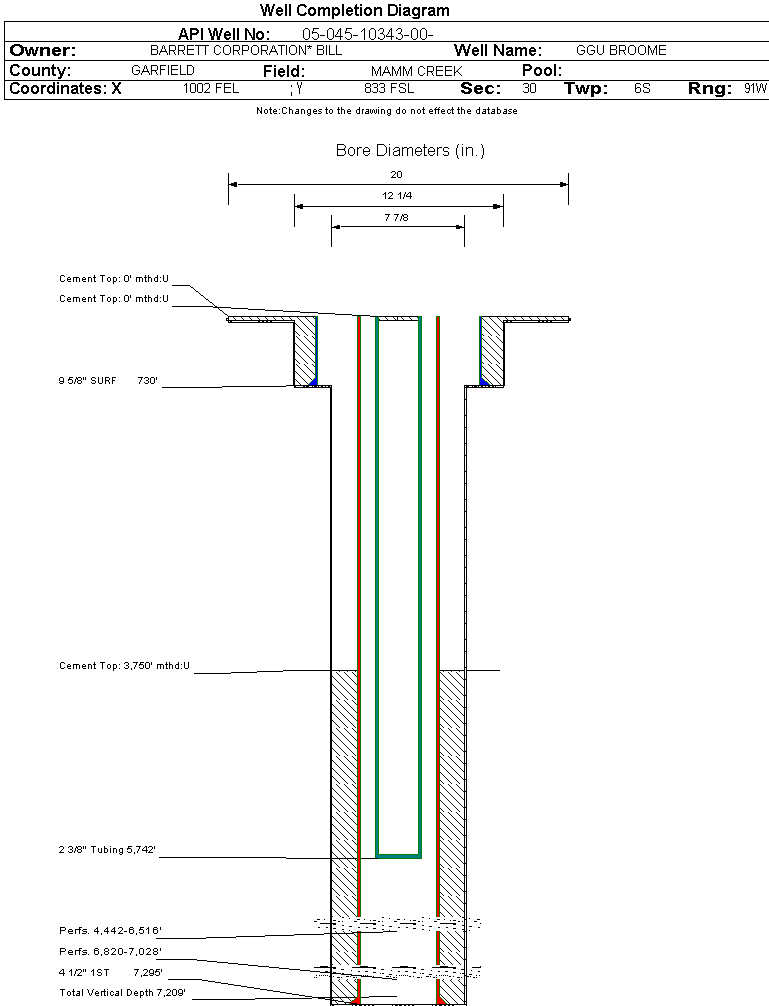

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10343		Well Classification: GW Status: PR - 8/4/2009
Well Name/No:GGU BROOME #44A-30-691
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/4/2009
FacilityID:275530LocationID:335227
County:GARFIELD #045Location:SESE 30 6S91W 6
Field:MAMM CREEK - #52500Elevation:5911 ft.
Basin:PICEANCE BASIN
Planned Location:833FSL  1002 FELLat/Long: 39.493511 / -107.590871Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.493702 / -107.590786Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/4/2009             Measured TD: 7295 ft.    Vertical TD: 7209 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/4/2009
Wellbore PermitDIRECTIONAL
Permit #:20043263 Expiration Date:1/9/2006
Proposed Top PZ Location:Sec:30 Twp: 6S 91W Footage: 238 FSL  673 FEL
Bottom Hole Location:Sec:30 Twp: 6S 91W Footage: 238 FSL  673 FEL
Proposed Depth/Form:7288 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEESurface Owner:FEE
Unit:GIBSON GULCH UN Unit Number:COC 052447X
Formation And Spacing:Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:5/15/2005
Spud Date:2/4/2005Spud Date Is:ACTUAL
Measured TD:7295 ft.Measured PB depth:7240 ft.
True Vertical TD:7209 ft.True Vertical PB depth:7154 ft.
Top PZ Location:Sec:30 Twp: 6S 91WFootage: 238 FSL  673 FEL
Bottom Hole Location:Sec:30 Twp: 6S 91WFootage: 238 FSL  673 FEL
Log Types:HRI/SD/DSN/MICRO LOG
Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method:
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 730 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 2530, Top: 0 ft., Bottom: 730 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7295 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1109, Top: 3750 ft., Bottom: 7295 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WILLIAMS FORK3346 ft.NN
ROLLINS6936 ft.NN

Formation RLNS                     Formation Classification:  GW                     Status:  PR - 7/30/2005                 Interval Top: 6820 ft.    Interval Bottom: 7028 ft.

 Completed Information for Formation ROLLINS
1st Production Date:N/AChoke Size:0.750 in.
Formation Name:ROLLINSCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/15/2005
Treatment Summary:2,598 BBLS. OF SLICKWATER, 190,000 LBS. OF 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5742 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/30/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_GOR 50
CALC_MCF_GAS 50
CASING_PRESS 200
MCF_GAS 50
Perforation Data:
Interval Top:6820 ft.# Of Holes:24
Interval Bottom:7028 ft.Hole Size:0.36 in.

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 8/4/2009                  Interval Top: 4442 ft.    Interval Bottom: 6516 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.750 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/15/2005
Treatment Summary:13,220 BBLS.OF SLICKWATER,528,900 LBS.OF 20/40 SAND; 2591 BBLS. OF FRESH WATER, 117,300 LBS.20/40 SAND; 2736 BBLS. 2% KCI WATER,120,200 20/40 SAND;AND 1792 BBLS 2% CLAYFIX,72,200 LBS.20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:5742 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:7/30/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 10
BBLS_OIL 10
BTU_GAS 10
CALC_BBLS_H2O 10
CALC_BBLS_OIL 10
CALC_GOR 99
CALC_MCF_GAS 943
CASING_PRESS 200
MCF_GAS 943
Perforation Data:
Interval Top:4442 ft.# Of Holes:156
Interval Bottom:6516 ft.Hole Size:0.36 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)10
Total Gas Produced (MCF)5559
GOR555900
GOR DeterminationMCFE
Average BOE per Day2.653
Average MCFE per Day15.402

 Federal Financial Assurance  i

 Tribal Well  i No
