Wellbore #00 Wellbore Classification: GW Status: TA - 10/1/2025 Measured TD: 8110 ft. Vertical TD: 8077 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW TA - 10/1/2025 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20043184 | Expiration Date: | 1/5/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2009 FSL 1995 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 2009 FSL 1995 FEL | | Proposed Depth/Form: | 8081 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GIBSON GULCH UN | Unit Number: | COC052447A | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

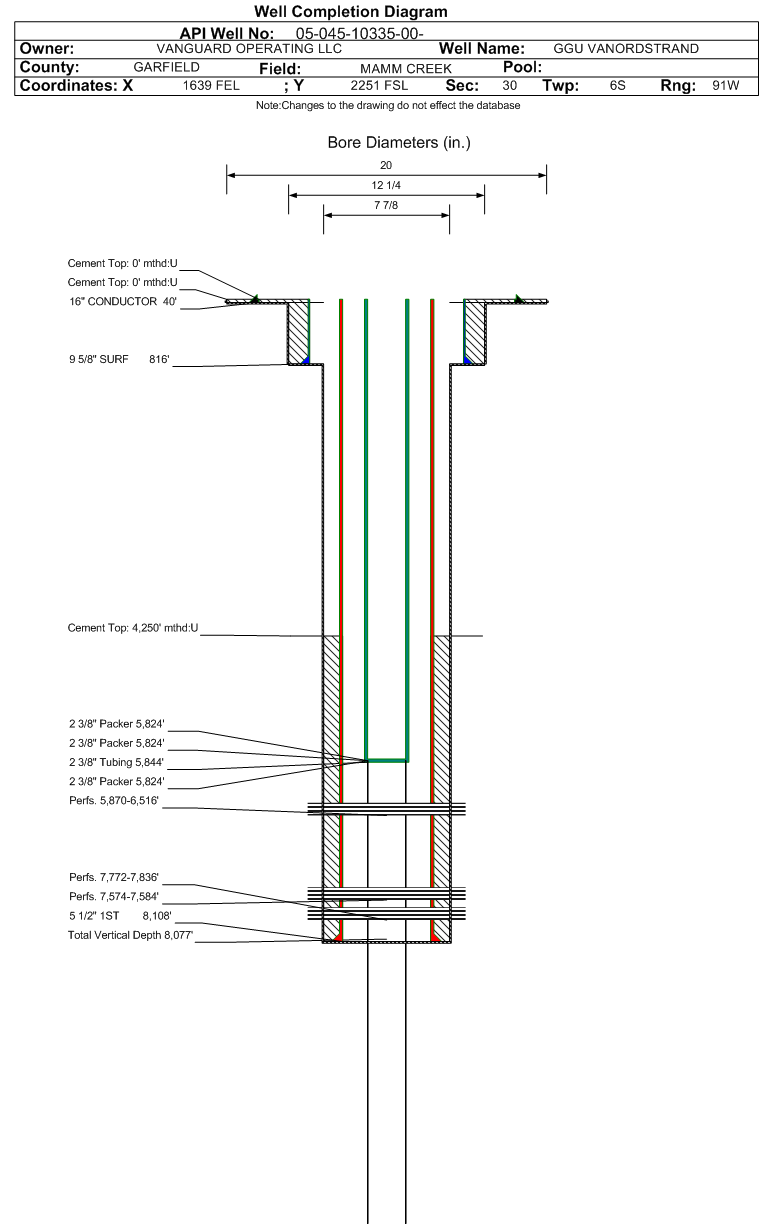

| Wellbore Completed | | Completion Date: | N/A | | Spud Date: | 1/25/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8110 ft. | Measured PB depth: | 7810 ft. | | True Vertical TD: | 8077 ft. | True Vertical PB depth: | 7777 ft. | | Top PZ Location: | Sec: Twp: | Footage: 2009 FSL 1995 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 2009 FSL 1995 FEL | | Log Types: | HRI / SD / DSN / MICROLOG | | Casing: | String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: .250 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 9.625 in., Top: 0 ft., Depth: 816 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 235, Top: 0 ft., Bottom: 816 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8108 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 1081, Top: 4250 ft., Bottom: 8108 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WILLIAMS FORK | 3329 ft. | | N | N | | ROLLINS | 6953 ft. | | N | N | | COZZETTE | 7561 ft. | | | | | CORCORAN | 7751 ft. | | | |
Formation CRCRN Formation Classification: GW Status: TA - 10/1/2025 Interval Top: 7772 ft. Interval Bottom: 7836 ft.| Completed Information for Formation CORCORAN | | 1st Production Date: | 5/9/2005 | Choke Size: | | | Formation Name: | CORCORAN | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 4/13/2005 | | Treatment Summary: | See Cozzette formation treatment summary as these two formations were completed together. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5844 ft. | | Tubing Packer Depth: | 5844 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation CRCRN. |
| | Perforation Data: | | Interval Top: | 7772 ft. | # Of Holes: | 32 | | Interval Bottom: | 7836 ft. | Hole Size: | 0.36 in. |
|
Formation COZZ Formation Classification: GW Status: TA - 10/1/2025 Interval Top: 7574 ft. Interval Bottom: 7584 ft.| Completed Information for Formation COZZETTE | | 1st Production Date: | 5/9/2006 | Choke Size: | | | Formation Name: | COZZETTE | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 4/14/2005 | | Treatment Summary: | Perforate and frac 3 stages in the COZZ and CRCRN formations. Used 30# Purgel with CO2 system. See below for a breakdown of what was used to complete both formations. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5844 ft. | | Tubing Packer Depth: | 5844 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation COZZ. |
| | Perforation Data: | | Interval Top: | 7574 ft. | # Of Holes: | 20 | | Interval Bottom: | 7584 ft. | Hole Size: | 0.36 in. |
|
Formation WMFK Formation Classification: GW Status: TA - 10/1/2025 Interval Top: 5870 ft. Interval Bottom: 6516 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | 5/9/2005 | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | Yes | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Date: | 5/9/2005 | | Treatment Summary: | previously submitted to COGCC |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5844 ft. | | Tubing Packer Depth: | 5844 ft. | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 295 | | CASING_PRESS | 225 | | MCF_GAS | 295 |
| | Perforation Data: | | Interval Top: | 5870 ft. | # Of Holes: | 64 | | Interval Bottom: | 6516 ft. | Hole Size: | 0.36 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2028 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive (TA ) | Y | Defined Inactive
05/20/2025 |
| Low Producing | Y | Production Period
11/2024 - 10/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | |
|
|
