COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10326		Well Classification: GW Status: PR - 10/28/2005
Well Name/No:FEDERAL #PA432-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC62740
Facility Status:PRStatus Date10/28/2005
FacilityID:275479LocationID:335246
County:GARFIELD #045Location:SWNE 32 6S95W 6
Field:PARACHUTE - #67350Elevation:5244 ft.
Basin:PICEANCE BASIN
Planned Location:1721FNL  2105 FELLat/Long: 39.483549 / -108.019994Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.483545 / -108.019965Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 10/28/2005             Measured TD: 6805 ft.    Vertical TD: 6728 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 10/28/2005
Wellbore PermitDIRECTIONAL
Permit #:20043142 Expiration Date:1/3/2006
Proposed Top PZ Location:Sec: Twp: Footage: 2463 FNL  1970 FEL
Bottom Hole Location:Sec: Twp: Footage: 2463 FNL  1970 FEL
Proposed Depth/Form:6900 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 160, Drill Unit: NE/4
Wellbore Completed
Completion Date:9/16/2005
Spud Date:8/3/2005Spud Date Is:ACTUAL
Measured TD:6805 ft.Measured PB depth:6745 ft.
True Vertical TD:6728 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2463 FNL  1970 FEL
Bottom Hole Location:Sec: Twp: Footage: 2463 FNL  1970 FEL
Log Types:CBL, HIGH RESOLUTION INDUCTION, SPECTRAL DENSITY, DUAL SPACED NEUTRON

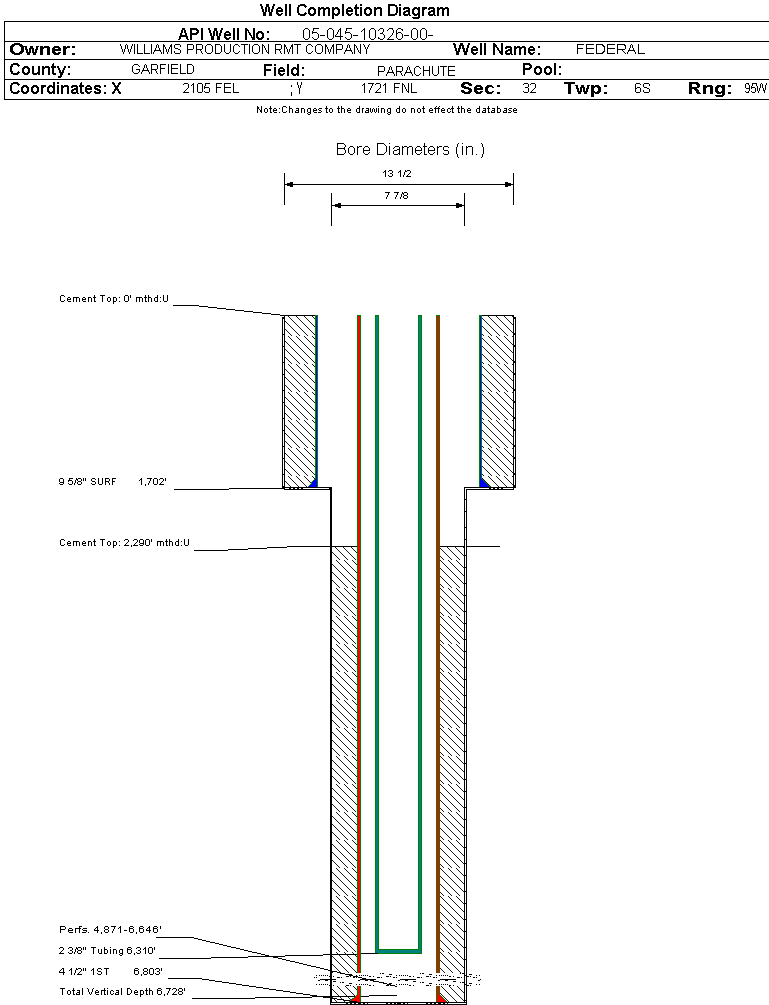

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1702 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 460, Top: 0 ft., Bottom: 1702 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6803 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 835, Top: 2290 ft., Bottom: 6803 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
FORT UNION1757 ft.NN
MESAVERDE3511 ft.NN
CAMEO6071 ft.NN
ROLLINS6705 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 10/28/2005                Interval Top: 4871 ft.    Interval Bottom: 6646 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:9/16/2005
Treatment Summary:3000 GALS 10% ACETIC ACID, 1000 GALS 7.5% HCL, 793,400# 30/50 SAND, 18,584 BBLS SLICKWATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6310 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:10/28/2005Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1285
CASING_PRESS 1579
TUBING_PRESS 1500
Perforation Data:
Interval Top:4871 ft.# Of Holes:123
Interval Bottom:6646 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)34
Total Gas Produced (MCF)16444
GOR483647
GOR DeterminationMCFE
Average BOE per Day7.863
Average MCFE per Day45.594

 Federal Financial Assurance  i Y

 Tribal Well  i No
