Wellbore #00 Wellbore Classification: GW Status: PR - 10/1/2020 Measured TD: 6676 ft. Vertical TD: 6539 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/1/2020 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20042152 | Expiration Date: | 9/30/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2150 FSL 1150 FWL | | Bottom Hole Location: | Sec:4 Twp: | Footage: 2150 FSL 1150 FWL | | Proposed Depth/Form: | 6702 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55972X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

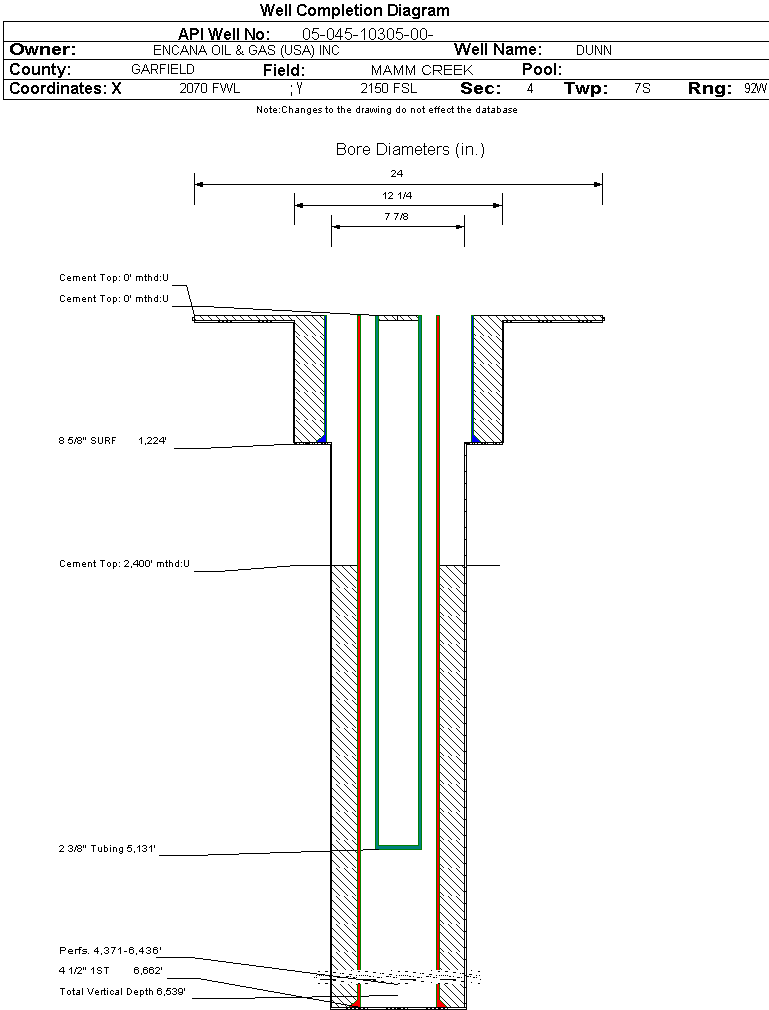

| Wellbore Completed | | Completion Date: | 2/24/2005 | | Spud Date: | 10/15/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 6676 ft. | Measured PB depth: | 5990 ft. | | True Vertical TD: | 6539 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 2150 FSL 1150 FWL | | Bottom Hole Location: | Sec:4 Twp: | Footage: 2150 FSL 1150 FWL | | Log Types: | PEX, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 42 ft., Weight: 0 , Citings Type: ACTUAL | | Cement: | Sacks: 4, Top: 0 ft., Bottom: 42 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1224 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 765, Top: 0 ft., Bottom: 1224 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6662 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1250, Top: 2400 ft., Bottom: 6676 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 3300 ft. | N | N | | WILLIAMS FORK | 3301 ft. | 6522 ft. | N | N | | ROLLINS | 6523 ft. | 6676 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 10/1/2020 Interval Top: 4371 ft. Interval Bottom: 6436 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/24/2005 | | Treatment Summary: | STAGES 1-6 TREATED WITH A TOTAL OF: 26,133 BBLS OF SLICKWATER, 1,070,080 LBS 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5131 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/25/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 230 | | BBLS_OIL | 1 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 230 | | CALC_BBLS_OIL | 1 | | CALC_GOR | 461000 | | CALC_MCF_GAS | 461 | | CASING_PRESS | 1400 | | MCF_GAS | 461 | | TUBING_PRESS | 850 |
| | Perforation Data: | | Interval Top: | 4371 ft. | # Of Holes: | 106 | | Interval Bottom: | 6436 ft. | Hole Size: | 0.32 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 63 |
| Total Gas Produced (MCF) | 16622 |
| GOR | 263841 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.968 |
| Average MCFE per Day | 46.232 |
| Federal Financial Assurance | i | Y |
|
|
