COGIS - WELL SCOUT CARD

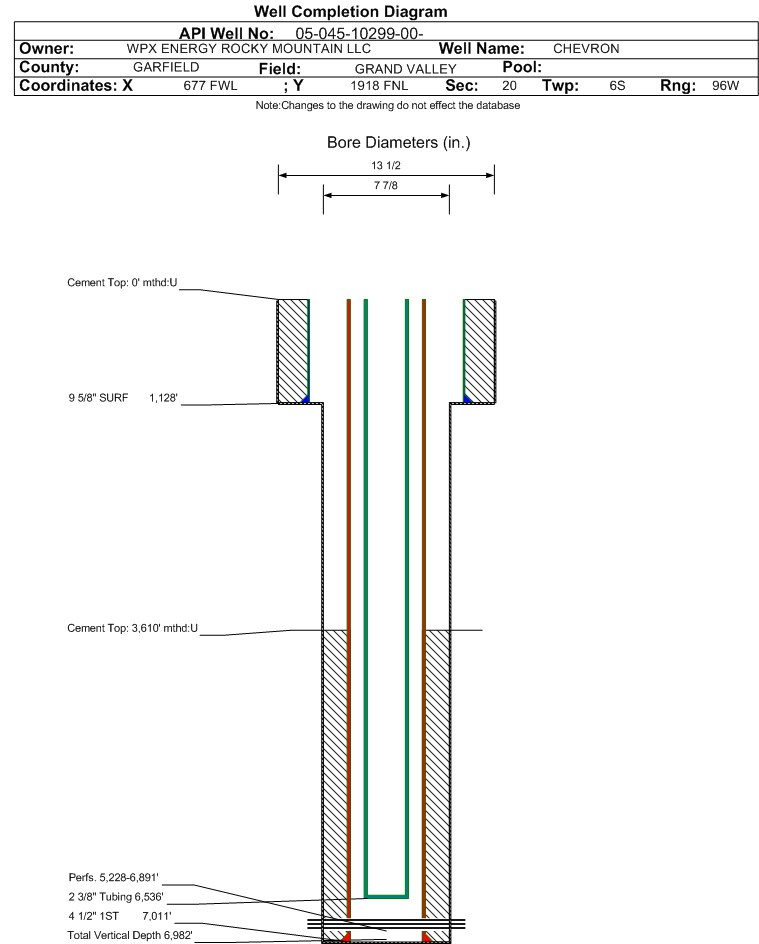

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10299		Well Classification: GW Status: PR - 7/1/2021
Well Name/No:CHEVRON #GM 512-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date7/1/2021
FacilityID:273940LocationID:335426
County:GARFIELD #045Location:SWNW 20 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5748 ft.
Basin:PICEANCE BASIN
Planned Location:1918FNL  677 FWLLat/Long: 39.511668 / -108.139578Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.511810 / -108.139480Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/1/2021             Measured TD: 7012 ft.    Vertical TD: 6982 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/1/2021
Wellbore PermitDIRECTIONAL
Permit #:20042162 Expiration Date:9/30/2005
Proposed Top PZ Location:Sec: Twp: Footage: 1790 FNL  1096 FWL
Bottom Hole Location:Sec: Twp: Footage: 1790 FNL  1096 FWL
Proposed Depth/Form:7071 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-8 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:3/5/2005
Spud Date:12/14/2004Spud Date Is:ACTUAL
Measured TD:7012 ft.Measured PB depth:6997 ft.
True Vertical TD:6982 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1790 FNL  1096 FWL
Bottom Hole Location:Sec: Twp: Footage: 1790 FNL  1096 FWL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1128 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 365, Top: 0 ft., Bottom: 1128 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7011 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 773, Top: 3610 ft., Bottom: 7010 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G2154 ft.NN
FORT UNION2488 ft.NN
MESAVERDE3867 ft.NN
CAMEO COAL6435 ft.NN
ROLLINS6910 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 7/1/2021                  Interval Top: 5228 ft.    Interval Bottom: 6891 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/5/2005
Treatment Summary:3250 GALS 7 1/2% HCL, 463900# 30/50, 10969 BBLS SICKWATER, 6449-6891' 1000 GALS 7 1/2% HCL, 132100# 30/50, 3054 BBLS SLICKWATER, 6020-6354' 750 GALS 7 1/2% HCL, 107800# 30/50, 2577 BBLS SLICKWATER,5430-5853' 750 GALS 7 1/2% HCL,115400# 30/50,2763 BBLS SLW
Tubing Size:2.375 in.Tubing Setting Depth:6536 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/13/2005Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 1539
CASING_PRESS 1306
TUBING_PRESS 1175
Perforation Data:
Interval Top:5228 ft.# Of Holes:77
Interval Bottom:6891 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)20
Total Gas Produced (MCF)15201
GOR760050
GOR DeterminationMCFE
Average BOE per Day7.233
Average MCFE per Day41.977

 Federal Financial Assurance  i

 Tribal Well  i No
