COGIS - WELL SCOUT CARD

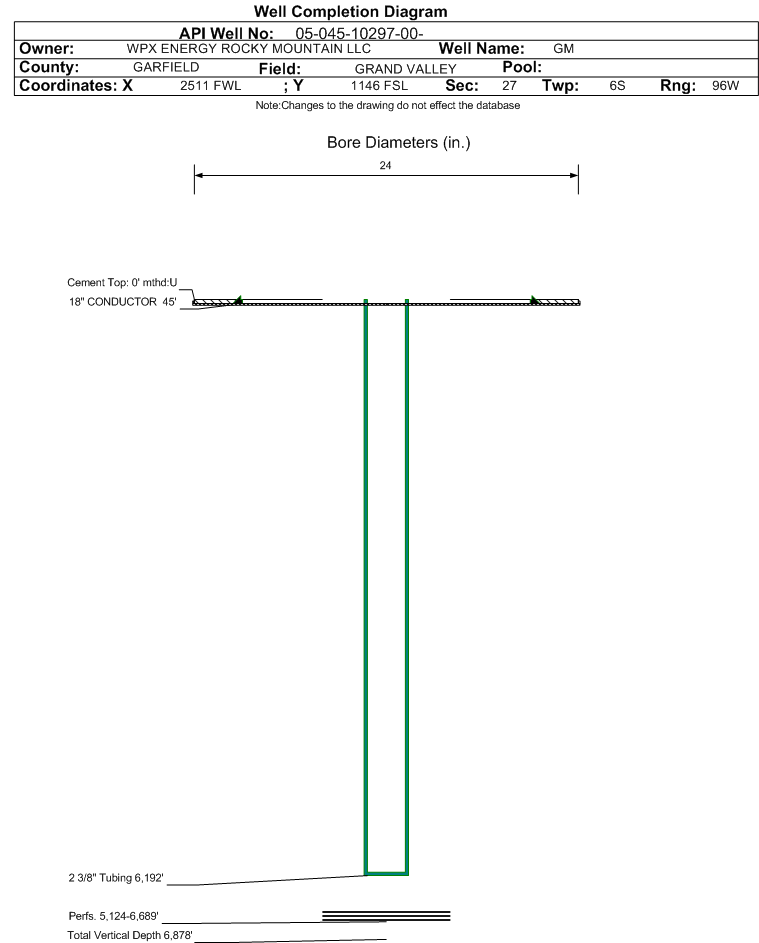

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10297		Well Classification: GW Status: PR - 12/14/2012
Well Name/No:GM #424-27
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 49009
Facility Status:PRStatus Date12/14/2012
FacilityID:273938LocationID:335397
County:GARFIELD #045Location:SESW 27 6S96W 6
Field:GRAND VALLEY - #31290Elevation:5599 ft.
Basin:PICEANCE BASIN
Planned Location:1146FSL  2511 FWLLat/Long: 39.490898 / -108.095236Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.491087 / -108.095197Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/14/2012             Measured TD: 6936 ft.    Vertical TD: 6878 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/14/2012
Wellbore PermitDIRECTIONAL
Permit #:20042173 Expiration Date:9/30/2005
Proposed Top PZ Location:Sec: Twp: Footage: 675 FSL  2050 FWL
Bottom Hole Location:Sec: Twp: Footage: 675 FSL  2050 FWL
Proposed Depth/Form:7023 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-8 , Unit Acreage: 320, Drill Unit: S/2
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1112 ft., Weight: 32.3 , Citings Type: PLANNED
Cement:Sacks: 496, Top: 0 ft., Bottom: 1112 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7023 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 200, Top: , Bottom:
Wellbore Completed
Completion Date:2/13/2005
Spud Date:11/19/2004Spud Date Is:ACTUAL
Measured TD:6936 ft.Measured PB depth:6864 ft.
True Vertical TD:6878 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 675 FSL  2050 FWL
Bottom Hole Location:Sec: Twp: Footage: 675 FSL  2050 FWL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 32 , Citings Type: ACTUAL
Cement:Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method:

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/14/2012                Interval Top: 5124 ft.    Interval Bottom: 6689 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.281 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/13/2005
Treatment Summary:3250 GALS 7 1/2% HCL, 437400# 20/40, 10268 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6192 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/16/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1308
CASING_PRESS 1144
MCF_GAS 1308
TUBING_PRESS 950
Perforation Data:
Interval Top:5124 ft.# Of Holes:72
Interval Bottom:6689 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)9
Total Gas Produced (MCF)5075
GOR563888
GOR DeterminationMCFE
Average BOE per Day2.424
Average MCFE per Day14.062

 Federal Financial Assurance  i

 Tribal Well  i No
