COGIS - WELL SCOUT CARD

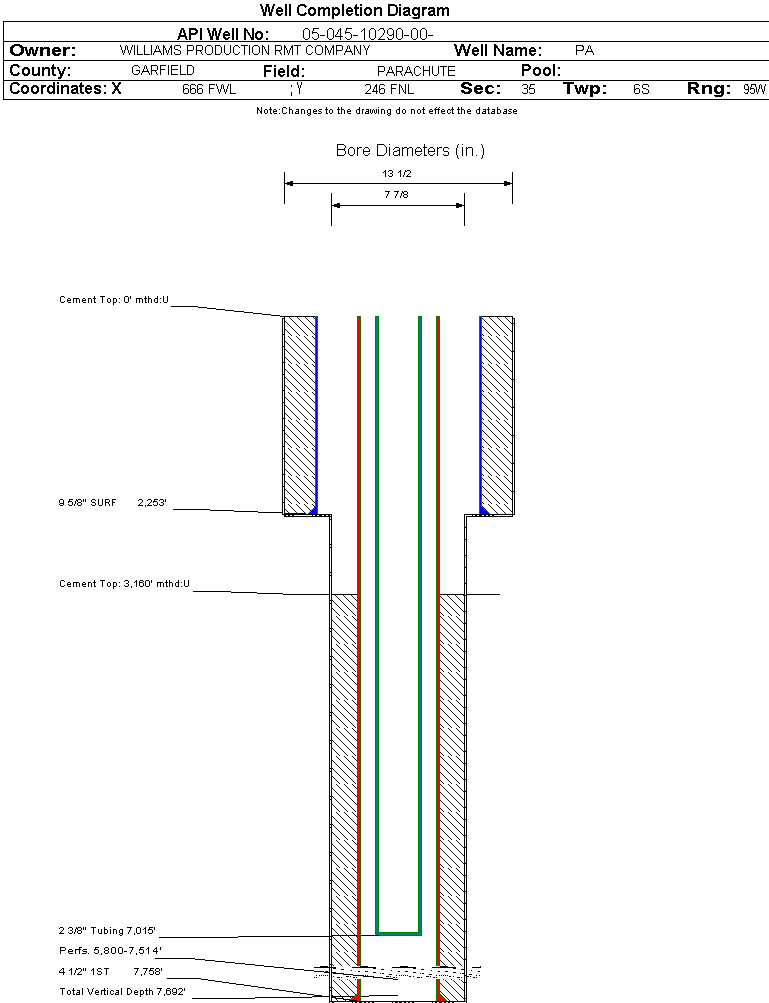

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10290		Well Classification: GW Status: PR - 4/11/2005
Well Name/No:PA #511-35
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/11/2005
FacilityID:273873LocationID:335391
County:GARFIELD #045Location:NWNW 35 6S95W 6
Field:PARACHUTE - #67350Elevation:5465 ft.
Basin:PICEANCE BASIN
Planned Location:246FNL  666 FWLLat/Long: 39.487769 / -107.972992Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.487815 / -107.973070Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/11/2005             Measured TD: 7775 ft.    Vertical TD: 7692 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/11/2005
Wellbore PermitDIRECTIONAL
Permit #:20042175 Expiration Date:9/28/2005
Proposed Depth/Form:7790 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:2/16/2005
Spud Date:11/24/2004Spud Date Is:ACTUAL
Measured TD:7775 ft.Measured PB depth:7750 ft.
True Vertical TD:7692 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1090 FNL  323 FWL
Bottom Hole Location:Sec: Twp: Footage: 1090 FNL  323 FWL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2253 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 600, Top: 0 ft., Bottom: 2252 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7758 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 875, Top: 3160 ft., Bottom: 7758 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G2047 ft.NN
FORT UNION2326 ft.NN
MESAVERDE4320 ft.NN
CAMEO6998 ft.NN
ROLLINS7748 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 4/11/2005                 Interval Top: 5800 ft.    Interval Bottom: 7514 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/16/2005
Treatment Summary:2500 GALS 7 1/2% HCL,439400# 20/40,10905 BBLS SLICKWATER, 7178-7514' 500 GALS 7.5% HCL; 92600# 20/40 SAND & 2276 BBLS SLICKWATER, 6790-7080 500 GALS 7.5% HCL; 84700# 20/40 SAND&2197 BBLS SLICKWATER,6523-6713' 500 GALS 7.5% HCL;69100# 20/40 SD&1724 BBLS SL
Tubing Size:2.375 in.Tubing Setting Depth:7015 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/11/2005Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 744
CASING_PRESS 903
TUBING_PRESS 765
Perforation Data:
Interval Top:5800 ft.# Of Holes:78
Interval Bottom:7514 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)8605
GOR782272
GOR DeterminationMCFE
Average BOE per Day4.097
Average MCFE per Day23.763

 Federal Financial Assurance  i

 Tribal Well  i No
