Wellbore #00 Wellbore Classification: GW Status: PR - 9/8/2004 Measured TD: 7780 ft. Vertical TD: 7775 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/8/2004 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20042178 | Expiration Date: | 9/28/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 175 FNL 687 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 175 FNL 687 FWL | | Proposed Depth/Form: | 7910 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N/2 |
| | |

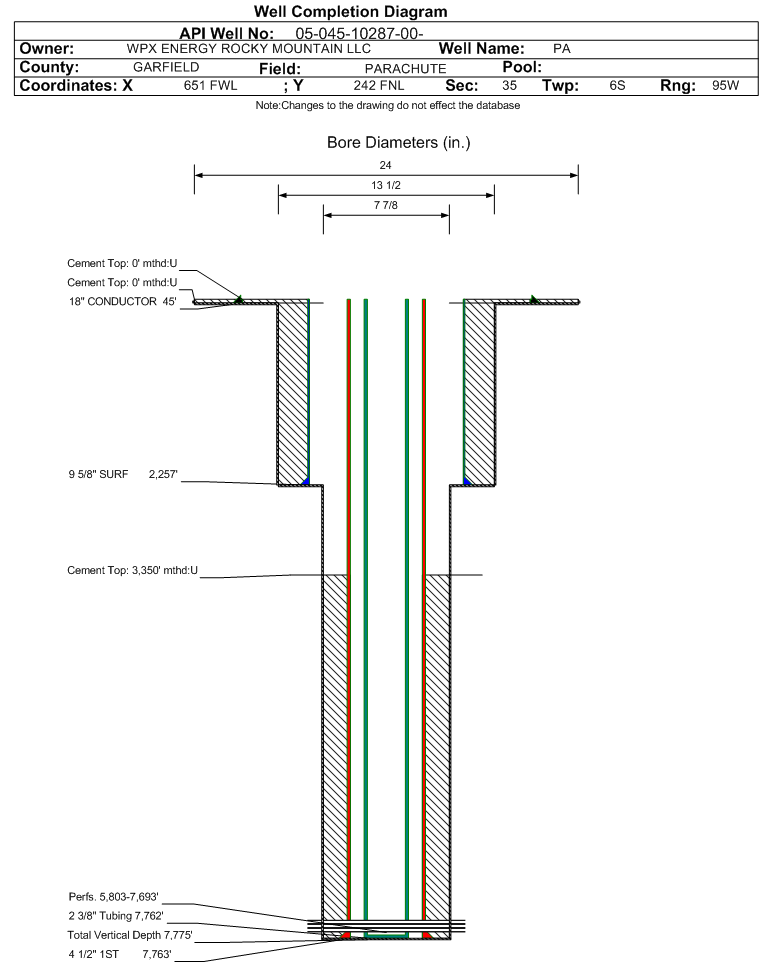

| Wellbore Completed | | Completion Date: | 2/16/2005 | | Spud Date: | 11/8/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 7780 ft. | Measured PB depth: | 7750 ft. | | True Vertical TD: | 7775 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 175 FNL 687 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 175 FNL 687 FWL | | Log Types: | HIGH RESOLUTION IND,SPECTRAL DEN.DUAL SPACED NEU.,CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2257 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 635, Top: 0 ft., Bottom: 2257 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7763 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 932, Top: 3350 ft., Bottom: 7762 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2056 ft. | | N | N | | FORT UNION | 2331 ft. | | N | N | | MESAVERDE | 4306 ft. | | N | N | | CAMEO | 7042 ft. | | N | N | | ROLLINS | 7763 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 4/9/2005 Interval Top: 5803 ft. Interval Bottom: 7693 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 2/16/2005 | | Treatment Summary: | 4000 GALS 7 1/2% HCL, 495200# 20/40, 11624 BBLS SLICKWATER, 7308-7693' 1000 GALS 7 1/2% HCL, 116200# 20/40, 2744 BBLS SLICKWATER, 6752-7093' 1500 GALS 7 1/2% HCL, 104300# 20/40, 5062 BBLS SLICKWATER, 6222-6439' 750 GALS 7 1/2% HCL, 135700# 20/40,3259 BBLS |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7762 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/9/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CASING_PRESS | 1099 | | MCF_GAS | 1072 | | TUBING_PRESS | 1000 |
| | Perforation Data: | | Interval Top: | 5803 ft. | # Of Holes: | 83 | | Interval Bottom: | 7693 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 18 |
| Total Gas Produced (MCF) | 13952 |
| GOR | 775111 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.643 |
| Average MCFE per Day | 38.546 |
