Wellbore #00 Wellbore Classification: GW Status: PR - 10/1/2024 Measured TD: 8135 ft. Vertical TD: 7950 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20042082 | Expiration Date: | 9/21/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1970 FNL 1320 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1970 FNL 1320 FWL | | Proposed Depth/Form: | 8200 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GRASS MESA UNIT | Unit Number: | COC56608X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

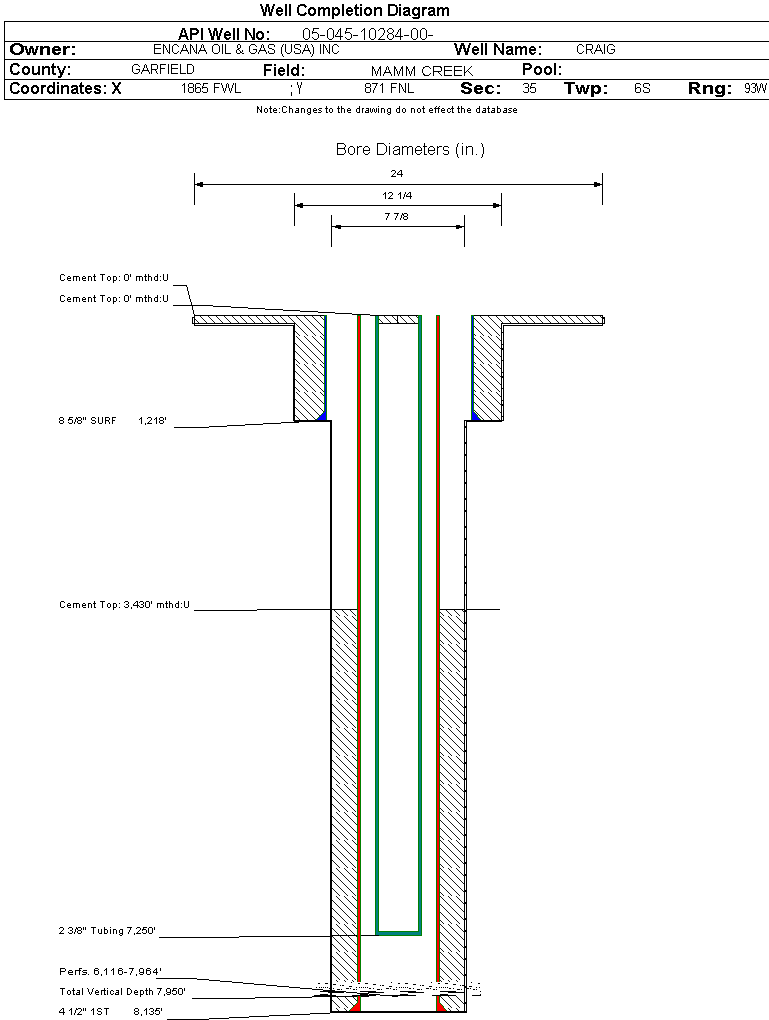

| Wellbore Completed | | Completion Date: | 3/3/2005 | | Spud Date: | 11/20/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 8135 ft. | Measured PB depth: | 8080 ft. | | True Vertical TD: | 7950 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 1970 FNL 1320 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1970 FNL 1320 FWL | | Log Types: | PEX, CBL, RST | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 84 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: 350, Top: 0 ft., Bottom: 84 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1218 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 850, Top: 0 ft., Bottom: 1218 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8135 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1755, Top: 3430 ft., Bottom: 8135 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 4674 ft. | N | N | | WILLIAMS FORK | 4675 ft. | 8135 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 10/1/2024 Interval Top: 6116 ft. Interval Bottom: 7964 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/3/2005 | | Treatment Summary: | STAGES 1-6 TREATED WITH A TOTAL OF 23,480 BBLS OF SLICKWATER, 870,000 LBS 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7250 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/4/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 224 | | BBLS_OIL | 4 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 224 | | CALC_BBLS_OIL | 4 | | CALC_GOR | 339000 | | CALC_MCF_GAS | 1356 | | CASING_PRESS | 1750 | | MCF_GAS | 1356 | | TUBING_PRESS | 1340 |
| | Perforation Data: | | Interval Top: | 6116 ft. | # Of Holes: | 110 | | Interval Bottom: | 7964 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 75 |
| Total Gas Produced (MCF) | 19890 |
| GOR | 265200 |
| GOR Determination | MCFE |
| Average BOE per Day | 9.593 |
| Average MCFE per Day | 55.628 |
| Federal Financial Assurance | i | Y |
|
|
