COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10276		Well Classification: GW Status: PR - 3/30/2005
Well Name/No:PA #534-27
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 66631
Facility Status:PRStatus Date3/30/2005
FacilityID:273768LocationID:335220
County:GARFIELD #045Location:SWSE 27 6S95W 6
Field:PARACHUTE - #67350Elevation:5465 ft.
Basin:PICEANCE BASIN
Planned Location:640FSL  2018 FELLat/Long: 39.490119 / -107.982513Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.490189 / -107.982593Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/30/2005             Measured TD: 7790 ft.    Vertical TD: 7768 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/30/2005
Wellbore PermitDIRECTIONAL
Permit #:20042031 Expiration Date:9/21/2005
Proposed Top PZ Location:Sec: Twp: Footage: 178 FSL  1991 FEL
Bottom Hole Location:Sec: Twp: Footage: 178 FSL  1991 FEL
Proposed Depth/Form:7814 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:3/31/2005
Spud Date:2/4/2005Spud Date Is:ACTUAL
Measured TD:7790 ft.Measured PB depth:7549 ft.
True Vertical TD:7768 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 178 FSL  1991 FEL
Bottom Hole Location:Sec: Twp: Footage: 178 FSL  1991 FEL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL

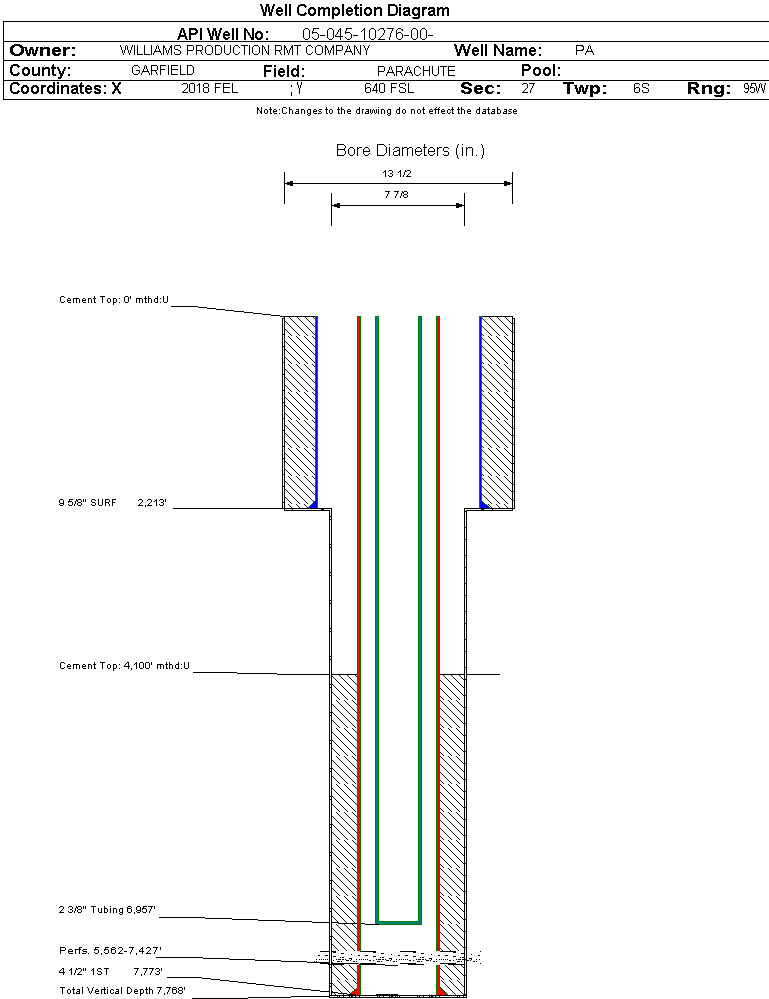

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2213 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 581, Top: 0 ft., Bottom: 2213 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7773 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 931, Top: 4100 ft., Bottom: 7772 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1981 ft.NN
FORT UNION2287 ft.NN
MESAVERDE4214 ft.NN
CAMEO6907 ft.NN
ROLLINS7665 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/30/2005                 Interval Top: 5562 ft.    Interval Bottom: 7427 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/31/2005
Treatment Summary:5000 GALS 7 1/2% HCL, 706500# 30/50, 16650 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:6957 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/26/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1215
CASING_PRESS 1939
MCF_GAS 1215
TUBING_PRESS 1950
Perforation Data:
Interval Top:5562 ft.# Of Holes:110
Interval Bottom:7427 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)27
Total Gas Produced (MCF)20304
GOR752000
GOR DeterminationMCFE
Average BOE per Day9.662
Average MCFE per Day56.068

 Federal Financial Assurance  i

 Tribal Well  i No
