COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10270		Well Classification: GW Status: PR - 4/2/2005
Well Name/No:CLOUGH #RWF 33-22
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date4/2/2005
FacilityID:273707LocationID:335367
County:GARFIELD #045Location:NWSE 22 6S94W 6
Field:RULISON - #75400Elevation:5226 ft.
Basin:PICEANCE BASIN
Planned Location:2201FSL  2294 FELLat/Long: 39.509419 / -107.873249Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.509545 / -107.873164Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/2/2005             Measured TD: 7435 ft.    Vertical TD: 7414 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/2/2005
Wellbore PermitDIRECTIONAL
Permit #:20042016 Expiration Date:9/15/2005
Proposed Top PZ Location:Sec: Twp: Footage: 2460 FSL  1916 FEL
Bottom Hole Location:Sec: Twp: Footage: 2460 FSL  1916 FEL
Proposed Depth/Form:7568 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-8 , Unit Acreage: 320, Drill Unit: S/2

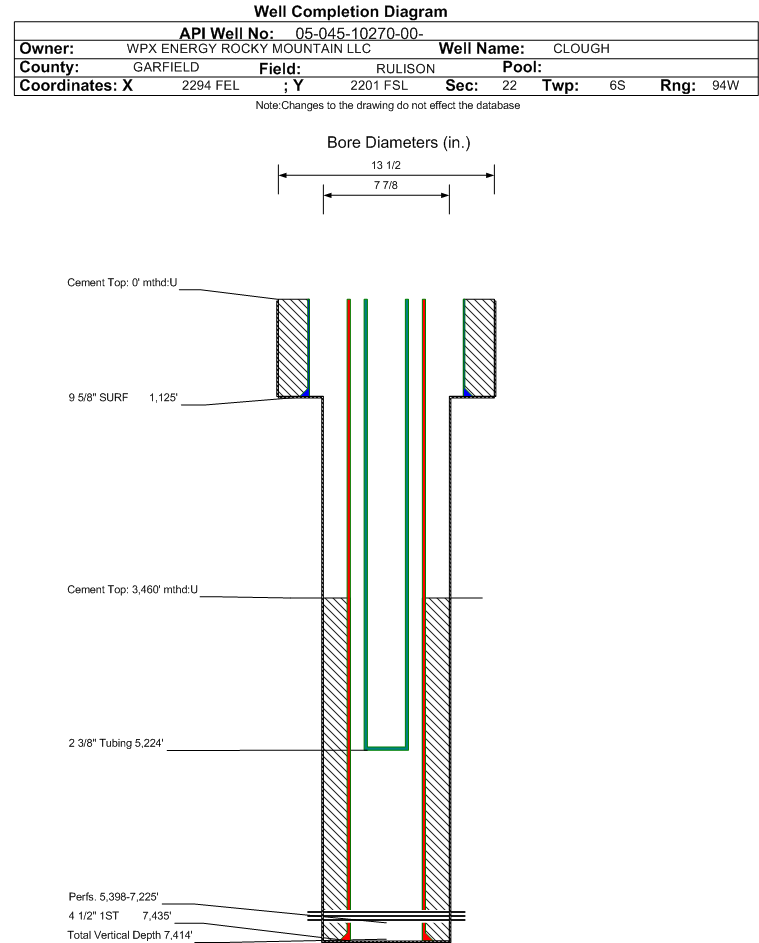

Wellbore Completed
Completion Date:3/1/2005
Spud Date:1/14/2005Spud Date Is:ACTUAL
Measured TD:7435 ft.Measured PB depth:7321 ft.
True Vertical TD:7414 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2460 FSL  1916 FEL
Bottom Hole Location:Sec: Twp: Footage: 2460 FSL  1916 FEL
Log Types:HIGH RESOLUTION IND.,SPECATRAL DEN.DUAL SPACED NEU.,CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: , Depth: 1125 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 375, Top: 0 ft., Bottom: 1124 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7435 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1030, Top: 3460 ft., Bottom: 7435 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1440 ft.NN
MESAVERDE3953 ft.NN
CAMEO6777 ft.NN
ROLLINS7725 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 4/2/2005                  Interval Top: 5398 ft.    Interval Bottom: 7225 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.313 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:3/1/2005
Treatment Summary:4000 GALS 7 1/2% HCL, 1127400# 20/40, 11675 BBLS SLICKWATER, 7023-7225' 1000 GALS 7 1/2% HCL,17000 # 20/40,2325 BBLS SLICKWATER, 6371-6725' 750 GALS 7 1/2% HCL,249000# 20/40,1478 BBLS SLICKWATER, 6037-6209' 750 GALS 7 1/2% HCL,248700# 20/40,2678 BBLS SLKW
Tubing Size:2.375 in.Tubing Setting Depth:5224 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:4/2/2005Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_MCF_GAS 710
CASING_PRESS 705
TUBING_PRESS 590
Perforation Data:
Interval Top:5398 ft.# Of Holes:75
Interval Bottom:7225 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)6933
GOR630272
GOR DeterminationMCFE
Average BOE per Day3.306
Average MCFE per Day19.183

 Federal Financial Assurance  i

 Tribal Well  i No
