Wellbore #00 Wellbore Classification: GW Status: PR - 4/8/2005 Measured TD: 7442 ft. Vertical TD: 7423 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/8/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20042015 | Expiration Date: | 9/15/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2148 FSL 1896 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 2148 FSL 1896 FEL | | Proposed Depth/Form: | 7550 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-8 , Unit Acreage: 320, Drill Unit: S/2 |
| | |

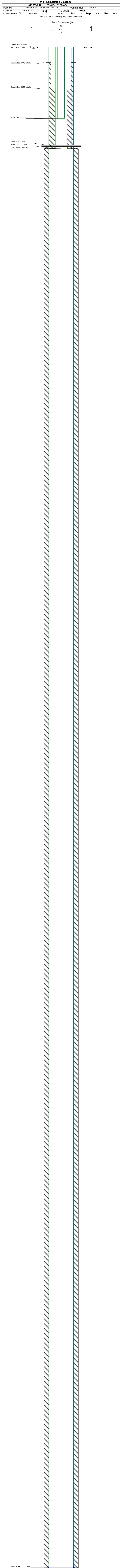

| Wellbore Completed | | Completion Date: | 3/1/2005 | | Spud Date: | 12/29/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 7442 ft. | Measured PB depth: | 7419 ft. | | True Vertical TD: | 7423 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 2148 FSL 1896 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 2148 FSL 1896 FEL | | Log Types: | RESERVOIR MONITOR TOOL ELITE, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 111636 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 0, Top: 1116 ft., Bottom: , Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7428 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 950, Top: 3070 ft., Bottom: 7428 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 1427 ft. | | N | N | | MESAVERDE | 3943 ft. | | N | N | | CAMEO | 6754 ft. | | N | N | | ROLLINS | 7700 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 4/8/2005 Interval Top: 5380 ft. Interval Bottom: 7320 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.234 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 3/1/2005 | | Treatment Summary: | 4000 GALS 7 1/2% HCL, 565700# 20/40, 13084 BBLS SLICK WATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5225 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/8/2005 | Test Method: | | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| CALC_MCF_GAS | 936 | | CASING_PRESS | 1016 | | TUBING_PRESS | 899 |
| | Perforation Data: | | Interval Top: | 5380 ft. | # Of Holes: | 72 | | Interval Bottom: | 7320 ft. | Hole Size: | 0.42 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 12 |
| Total Gas Produced (MCF) | 10053 |
| GOR | 837750 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.778 |
| Average MCFE per Day | 27.742 |
| Federal Financial Assurance | i | |
|
|
