Wellbore #00 Wellbore Classification: GW Status: PR - 1/18/2005 Measured TD: 7591 ft. Vertical TD: 7207 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 1/18/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20041879 | Expiration Date: | 8/29/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1980 FNL 660 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1980 FNL 660 FEL | | Proposed Depth/Form: | 8000 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

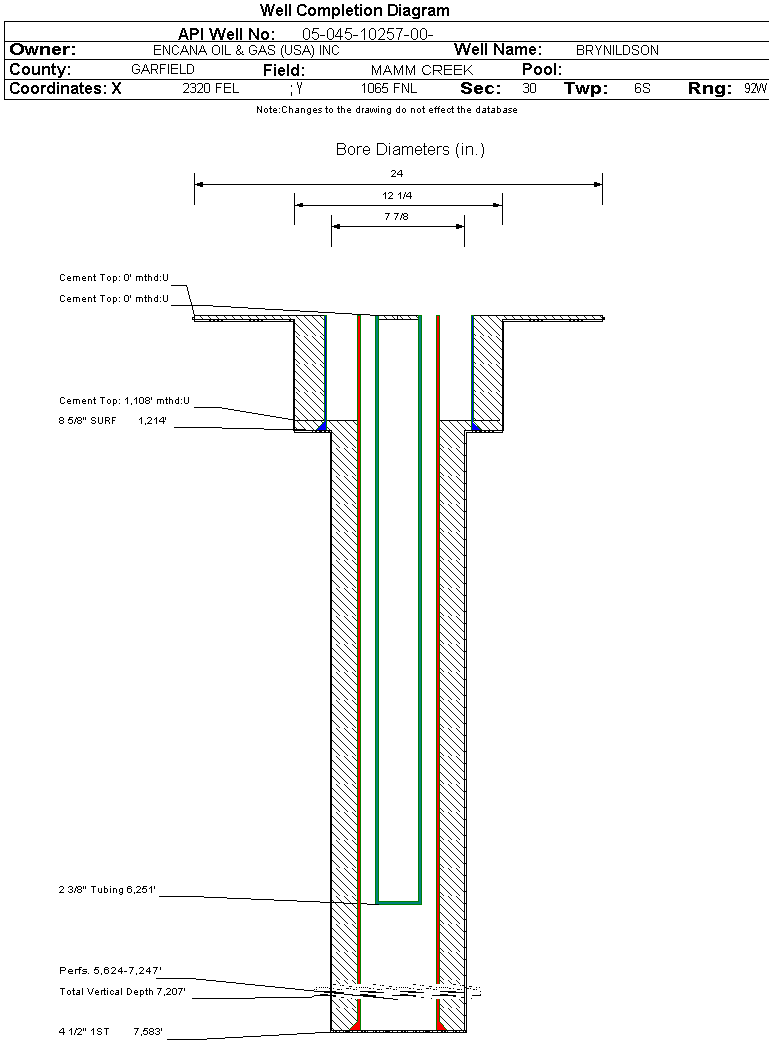

| Wellbore Completed | | Completion Date: | 1/17/2005 | | Spud Date: | 9/21/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 7591 ft. | Measured PB depth: | 7512 ft. | | True Vertical TD: | 7207 ft. | True Vertical PB depth: | 7128 ft. | | Top PZ Location: | Sec: Twp: | Footage: 1980 FNL 660 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1980 FNL 660 FEL | | Log Types: | PEX, GR-CBL/TEM | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 0 , Citings Type: ACTUAL | | Cement: | Sacks: 0, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1214 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 640, Top: 0 ft., Bottom: 1217 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7583 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 2175, Top: 1108 ft., Bottom: 7591 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 4380 ft. | N | N | | WILLIAMS FORK | 4381 ft. | 7492 ft. | N | N | | ROLLINS | 7493 ft. | 7591 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 1/18/2005 Interval Top: 5624 ft. Interval Bottom: 7247 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.375 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/17/2005 | | Treatment Summary: | STAGES 1-4 TREATED WITH: 14,872 BBLS OF SLICKWATER, 640,140 LBS 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6251 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 1/18/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 85 | | BBLS_OIL | 25 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 85 | | CALC_BBLS_OIL | 25 | | CALC_GOR | 35080 | | CALC_MCF_GAS | 877 | | CASING_PRESS | 1300 | | MCF_GAS | 877 | | TUBING_PRESS | 845 |
| | Perforation Data: | | Interval Top: | 5624 ft. | # Of Holes: | 64 | | Interval Bottom: | 7247 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 76 |
| Total Gas Produced (MCF) | 10398 |
| GOR | 136815 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.123 |
| Average MCFE per Day | 29.713 |
| Federal Financial Assurance | i | |
|
|
