Wellbore #00 Wellbore Classification: OW Status: PA - 10/26/2022 Measured TD: 8375 ft. Vertical TD: 8135 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: OW PA - 10/26/2022 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20041615 | Expiration Date: | 8/23/2005 | | Proposed Top PZ Location: | Sec:11 Twp: | Footage: 10 FSL 1420 FEL | | Bottom Hole Location: | Sec:11 Twp: | Footage: 10 FSL 1420 FEL | | Proposed Depth/Form: | 8700 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA FED | Unit Number: | COC 55972X | | Formation And Spacing: | Code: ILES , Formation: ILES , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

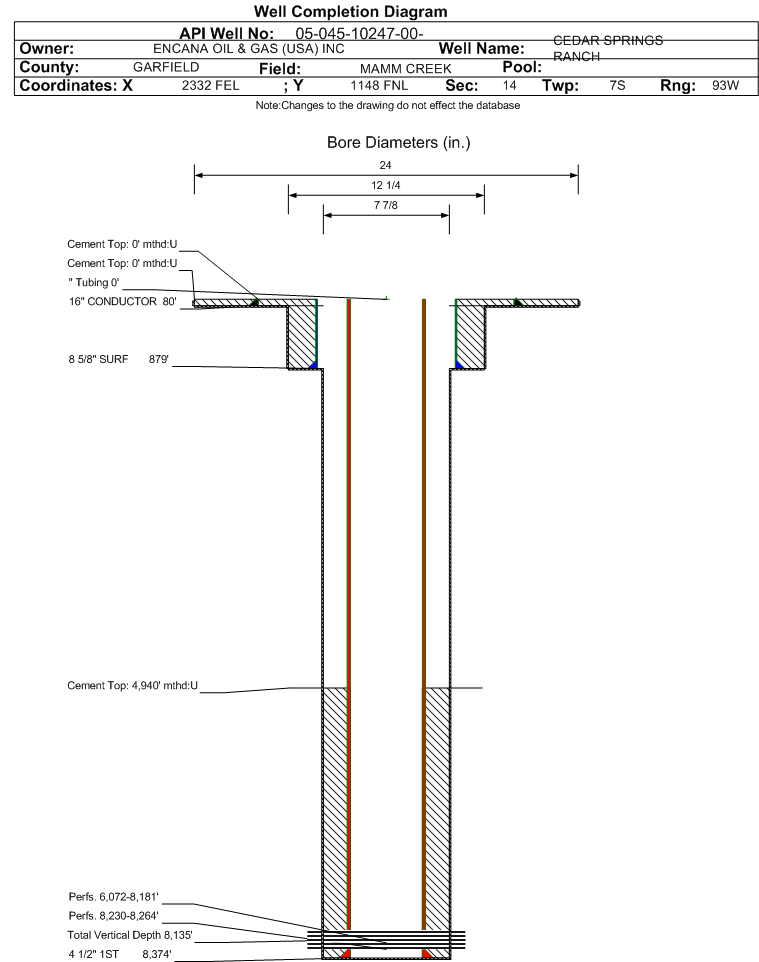

| Wellbore Completed | | Completion Date: | 2/3/2005 | | Spud Date: | 10/15/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 8375 ft. | Measured PB depth: | 8328 ft. | | True Vertical TD: | 8135 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:11 Twp: | Footage: 10 FSL 1420 FEL | | Bottom Hole Location: | Sec:11 Twp: | Footage: 10 FSL 1420 FEL | | Log Types: | CBL, RST | | Casing: | String Type: CONDUCTOR, Hole Size: , Size: , Top: 0 ft., Depth: 80 ft., Weight: 42# , Citings Type: ACTUAL | | Cement: | Sacks: 240, Top: 0 ft., Bottom: 80 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 879 ft., Weight: 24# , Citings Type: ACTUAL | | Cement: | Sacks: 585, Top: 0 ft., Bottom: 880 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8374 ft., Weight: 11.6# , Citings Type: ACTUAL | | Cement: | Sacks: 1145, Top: 4940 ft., Bottom: 8375 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 5197 ft. | N | N | | WILLIAMS FORK | 5198 ft. | 8219 ft. | N | N | | ROLLINS | 8220 ft. | 8375 ft. | N | N |
Formation RLNS Formation Classification: OW Status: AB - 11/11/2013 Interval Top: 8230 ft. Interval Bottom: 8264 ft.| Completed Information for Formation ROLLINS | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | ROLLINS | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 10/23/2013 | Treatment End Date: | 10/23/2013 | | Treatment Summary: | formation temporarily abandoned by CIBP @ 6000' and topped with 2 sx cement | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 2/3/2005 | | Treatment Summary: | STAGE 1 WAS TREATED WITH 5565 BBLS SLICKWATER AND 220,000# OF 20-40 SAND. TESTED WITH WILLIAMSFORK. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | No Initial Test Data was found for formation RLNS. |
| | Perforation Data: | | Interval Top: | 8230 ft. | # Of Holes: | 20 | | Interval Bottom: | 8264 ft. | Hole Size: | 0.37 in. |
|
Formation WMFK Formation Classification: OW Status: AB - 11/11/2013 Interval Top: 6072 ft. Interval Bottom: 8181 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | | | Formation Name: | WILLIAMS FORK | Commingled: | | | Production Method: | | | Open Hole Completion: | |
| | Formation Treatment | | Treatment Type: | | | Treatment Date: | 10/23/2013 | Treatment End Date: | 10/23/2013 | | Treatment Summary: | well temporarily abandoned with a CIBP set @ 6000' and topped with 2 sx cement | | Total fluid used in treatment (bbls): | | Max pressure during treatment (psi): | | | Total gas used in treatment (mcf): | | Fluid density (lbs/gal): | | | Type Of gas: | | Number Of staged intervals: | | | Total acid used in treatment (bbls): | | Min frac gradient (psi/ft): | | | Recycled water used in treatment (bbls): | | Total flowback volume recovered (bbls): | | | Fresh water used in treatment (bbls): | | Disposition method For flowback: | | | Total proppant used (lbs): | | Green completions techniques utilized: | -- | | Reason green techniques Not utilized: | | Formation Treatment | | Treatment Date: | 2/3/2005 | | Treatment Summary: | STAGES 2 THROUGH 7 WERE TREATED WITH A TOTAL OF 41,134 BBLS SLICKWATER AND 899,700# OF 20-40 SAND. |
| | Tubing Size: | | Tubing Setting Depth: | | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | N/A | Test Method: | | | Hours Tested: | | Gas Type: | | | Gas Disposal: | | |
| Test Type | Measure |
|---|
| BBLS_H2O | 19 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 19 | | CALC_BBLS_OIL | 0 | | CALC_GOR | 0 | | CALC_MCF_GAS | 1400 | | CASING_PRESS | 2150 | | MCF_GAS | 1400 | | TUBING_PRESS | 1809 |
| | Perforation Data: | | Interval Top: | 6072 ft. | # Of Holes: | 112 | | Interval Bottom: | 8181 ft. | Hole Size: | 0.37 in. |
|
|
|
|
|
|
|
| Reported Plugged | Y | 10/26/2022 |
| Out Of Service Repurposed | N | |
| Out Of Service | Y | Plugging Due Date
12/31/2029 |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 0 |
| GOR | |
| GOR Determination | |
| Average BOE per Day | 0.000 |
| Average MCFE per Day | 0.000 |
| Federal Financial Assurance | i | Y |
|
|
