COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10241		Well Classification: GW Status: PA - 3/5/2015
Well Name/No:PA #421-6
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62162
Facility Status:PAStatus Date3/5/2015
FacilityID:273333LocationID:334628
County:GARFIELD #045Location:NENW 6 7S95W 6
Field:PARACHUTE - #67350Elevation:5401 ft.
Basin:PICEANCE BASIN
Planned Location:745FNL  1438 FWLLat/Long: 39.472119 / -108.043774Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.472039 / -108.043820Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PA - 3/5/2015             Measured TD: 6748 ft.    Vertical TD: 6725 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PA - 3/5/2015
Wellbore PermitDIRECTIONAL
Permit #:20041789 Expiration Date:8/11/2005
Proposed Top PZ Location:Sec: Twp: Footage: 815 FNL  1830 FWL
Bottom Hole Location:Sec: Twp: Footage: 815 FNL  1830 FWL
Proposed Depth/Form:6877 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-10 , Unit Acreage: 160, Drill Unit: NW/4
Wellbore Completed
Completion Date:11/20/2005
Spud Date:9/17/2004Spud Date Is:ACTUAL
Measured TD:6748 ft.Measured PB depth:6721 ft.
True Vertical TD:6725 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 815 FNL  1830 FWL
Bottom Hole Location:Sec: Twp: Footage: 815 FNL  1830 FWL
Log Types:HIGH DEFINITION IND.,COMP.Z-DESNILOG COMP.NEU,GR,CBL

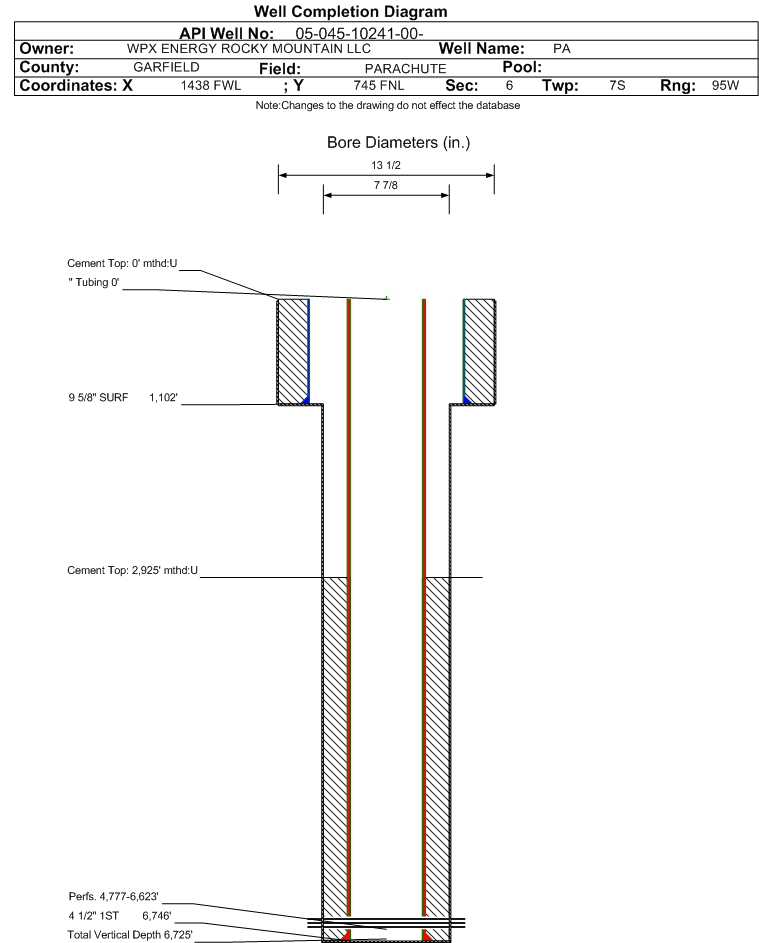

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1102 ft., Weight: 32.2# , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 0 ft., Bottom: 1102 ft., Determination Method: VISU
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6746 ft., Weight: 11.6# , Citings Type: ACTUAL
Cement:Sacks: 835, Top: 2925 ft., Bottom: 6746 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1705 ft.NN
FORT UNION1996 ft.NN
MESAVERDE3691 ft.NN
CAMEO6217 ft.NN
ROLLINS6718 ft.NN

Formation WFCM                     Formation Classification:  SI                     Status:  AB - 3/5/2015                  Interval Top: 4777 ft.    Interval Bottom: 6623 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:11/20/2005
Treatment Summary:400 GALS 7 1/2% HCL, 557576# 30/50, 13511 BBLS SLICK WATER (SUMMARY)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1175
CASING_PRESS 1055
MCF_GAS 1175
TUBING_PRESS 774
Perforation Data:
Interval Top:4777 ft.# Of Holes:94
Interval Bottom:6623 ft.Hole Size:0.35 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedY03/05/2015
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)0
Total Gas Produced (MCF)0
GOR
GOR Determination
Average BOE per Day0.000
Average MCFE per Day0.000

 Federal Financial Assurance  i

 Tribal Well  i No
