Wellbore #00 Wellbore Classification: GW Status: PR - 12/1/2018 Measured TD: 8000 ft. Vertical TD: 7987 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/1/2018 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20041754 | Expiration Date: | 8/11/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 829 FSL 1980 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 829 FSL 1980 FEL | | Proposed Depth/Form: | 8092 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 510-9 , Unit Acreage: 320, Drill Unit: S/2 |
| | |

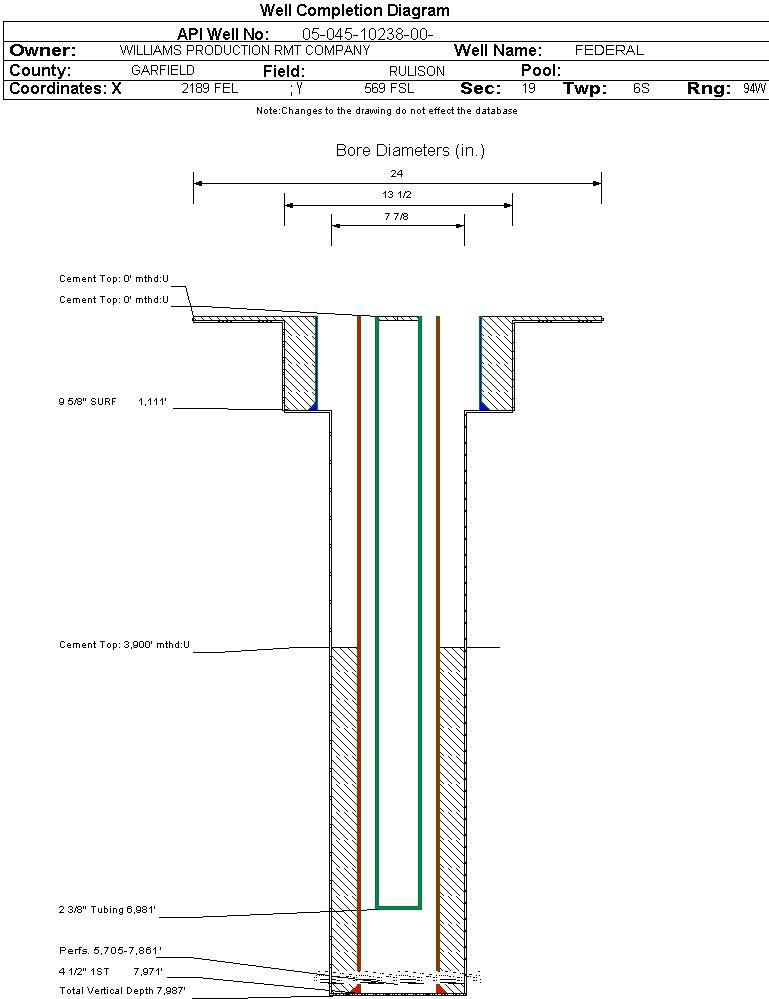

| Wellbore Completed | | Completion Date: | 1/31/2005 | | Spud Date: | 10/26/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 8000 ft. | Measured PB depth: | 7973 ft. | | True Vertical TD: | 7987 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 829 FSL 1980 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 829 FSL 1980 FEL | | Log Types: | RESERVOIR MONITOR TOOL ELITE, CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 45 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1111 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 480, Top: 0 ft., Bottom: 1111 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7971 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1025, Top: 3900 ft., Bottom: 7971 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 2204 ft. | | N | N | | MESAVERDE | 4536 ft. | | N | N | | CAMEO | 7139 ft. | | N | N | | ROLLINS | 8020 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 12/1/2018 Interval Top: 5705 ft. Interval Bottom: 7861 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/31/2005 | | Treatment Summary: | 4750 GALS 7 1/2% HCL, 599200# 20/40,15108 BBLS SLICKWATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6981 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 3/2/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1660 | | CASING_PRESS | 1662 | | MCF_GAS | 1660 | | TUBING_PRESS | 1537 |
| | Perforation Data: | | Interval Top: | 5705 ft. | # Of Holes: | 110 | | Interval Bottom: | 7861 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 18 |
| Total Gas Produced (MCF) | 13768 |
| GOR | 764888 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.548 |
| Average MCFE per Day | 37.982 |
| Federal Financial Assurance | i | Y |
|
|
