COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10224		Well Classification: GW Status: PR - 12/28/2004
Well Name/No:FEDERAL #GM 321-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:C 24603
Facility Status:PRStatus Date12/28/2004
FacilityID:273256LocationID:334809
County:GARFIELD #045Location:NENW 11 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5555 ft.
Basin:PICEANCE BASIN
Planned Location:721FNL  1642 FWLLat/Long: 39.457079 / -108.081205Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.457358 / -108.081165Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/28/2004             Measured TD: 6573 ft.    Vertical TD: 6496 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/28/2004
Wellbore PermitDIRECTIONAL
Permit #:20041626 Expiration Date:8/1/2005
Proposed Top PZ Location:Sec: Twp: Footage: 250 FNL  2274 FWL
Bottom Hole Location:Sec: Twp: Footage: 250 FNL  2274 FWL
Proposed Depth/Form:6600 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-10 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:11/25/2004
Spud Date:10/21/2004Spud Date Is:ACTUAL
Measured TD:6573 ft.Measured PB depth:6483 ft.
True Vertical TD:6496 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 250 FNL  2274 FWL
Bottom Hole Location:Sec: Twp: Footage: 250 FNL  2274 FWL
Log Types:RESERVOIR PERFORMANCE MONITOR, CBL

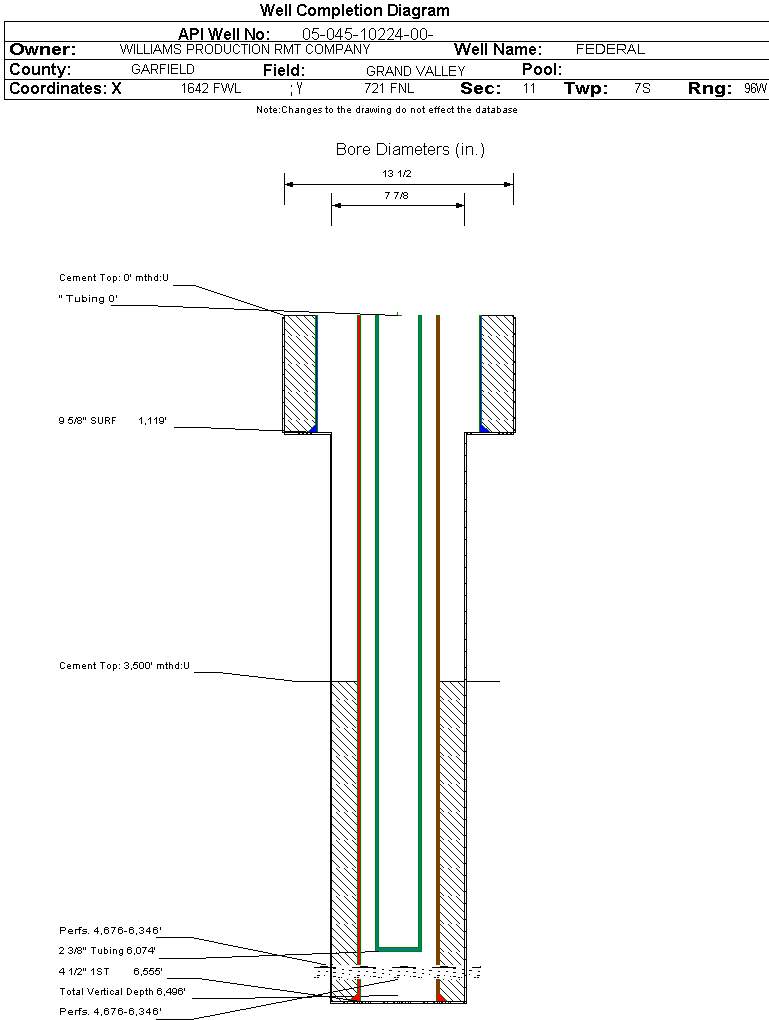

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1119 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 0 ft., Bottom: 1119 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6555 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 800, Top: 3500 ft., Bottom: 6555 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1710 ft.NN
FORT UNION2014 ft.NN
MESAVERDE3460 ft.NN
CAMEO5963 ft.NN
ROLLINS6461 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/28/2004                Interval Top: 4676 ft.    Interval Bottom: 6346 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/25/2004
Treatment Summary:4000 GALS 7 1/2% HCL, 421714# 30/50, 103598# 20/40, 12422 BBLS SLICK WATER
Tubing Size:2.375 in.Tubing Setting Depth:6074 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/15/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1347
CASING_PRESS 1427
MCF_GAS 1347
TUBING_PRESS 1317
Perforation Data:
Interval Top:4676 ft.# Of Holes:90
Interval Bottom:6346 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 12/28/2004                Interval Top: 4676 ft.    Interval Bottom: 6346 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:11/25/2004
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:4676 ft.# Of Holes:90
Interval Bottom:6346 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)15
Total Gas Produced (MCF)12751
GOR850066
GOR DeterminationMCFE
Average BOE per Day6.066
Average MCFE per Day35.186

 Federal Financial Assurance  i Y

 Tribal Well  i No
