COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10222		Well Classification: GW Status: PR - 3/25/2005
Well Name/No:FEDERAL #GM 422-3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 34553A
Facility Status:PRStatus Date3/25/2005
FacilityID:273258LocationID:334882
County:GARFIELD #045Location:SENW 3 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5593 ft.
Basin:PICEANCE BASIN
Planned Location:1702FNL  1683 FWLLat/Long: 39.468549 / -108.098496Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.468610 / -108.098423Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/25/2005             Measured TD: 6596 ft.    Vertical TD: 6570 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/25/2005
Wellbore PermitDIRECTIONAL
Permit #:20041613 Expiration Date:8/1/2005
Proposed Top PZ Location:Sec: Twp: Footage: 1991 FNL  2050 FWL
Bottom Hole Location:Sec: Twp: Footage: 1991 FNL  2050 FWL
Proposed Depth/Form:6599 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-10 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:12/24/2004
Spud Date:10/15/2004Spud Date Is:ACTUAL
Measured TD:6596 ft.Measured PB depth:6450 ft.
True Vertical TD:6570 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1991 FNL  2050 FWL
Bottom Hole Location:Sec: Twp: Footage: 1991 FNL  2050 FWL
Log Types:RESERVOIR MONITOR TOOL ELITE, C B L

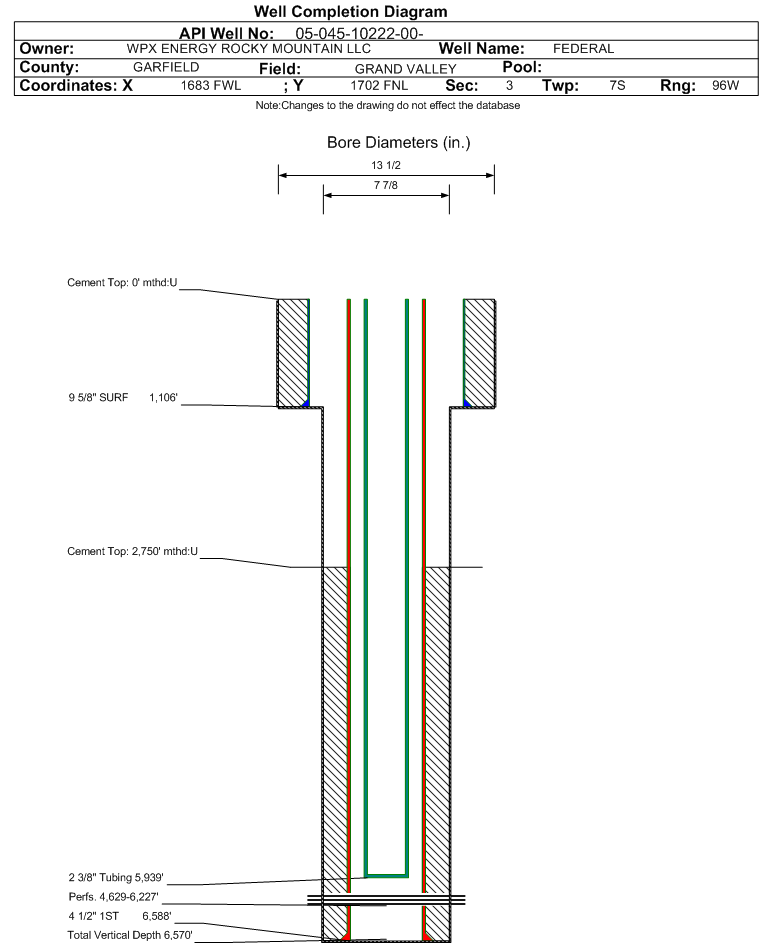

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1106 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 0 ft., Bottom: 1105 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 6588 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 750, Top: 2750 ft., Bottom: 6587 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1792 ft.NN
FORT UNION2080 ft.NN
MESAVERDE3475 ft.NN
CAMEO5955 ft.NN
ROLLINS6422 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/25/2005                 Interval Top: 4629 ft.    Interval Bottom: 6227 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.344 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/24/2004
Treatment Summary:4000 GALS 7 1/2% HCL, 428500# 30/50, 10215 BBLS SLICKWATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:5939 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/25/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 975
CASING_PRESS 523
MCF_GAS 975
TUBING_PRESS 373
Perforation Data:
Interval Top:4629 ft.# Of Holes:82
Interval Bottom:6227 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)21
Total Gas Produced (MCF)15888
GOR756571
GOR DeterminationMCFE
Average BOE per Day7.566
Average MCFE per Day43.883

 Federal Financial Assurance  i Y

 Tribal Well  i No
