COGIS - WELL SCOUT CARD

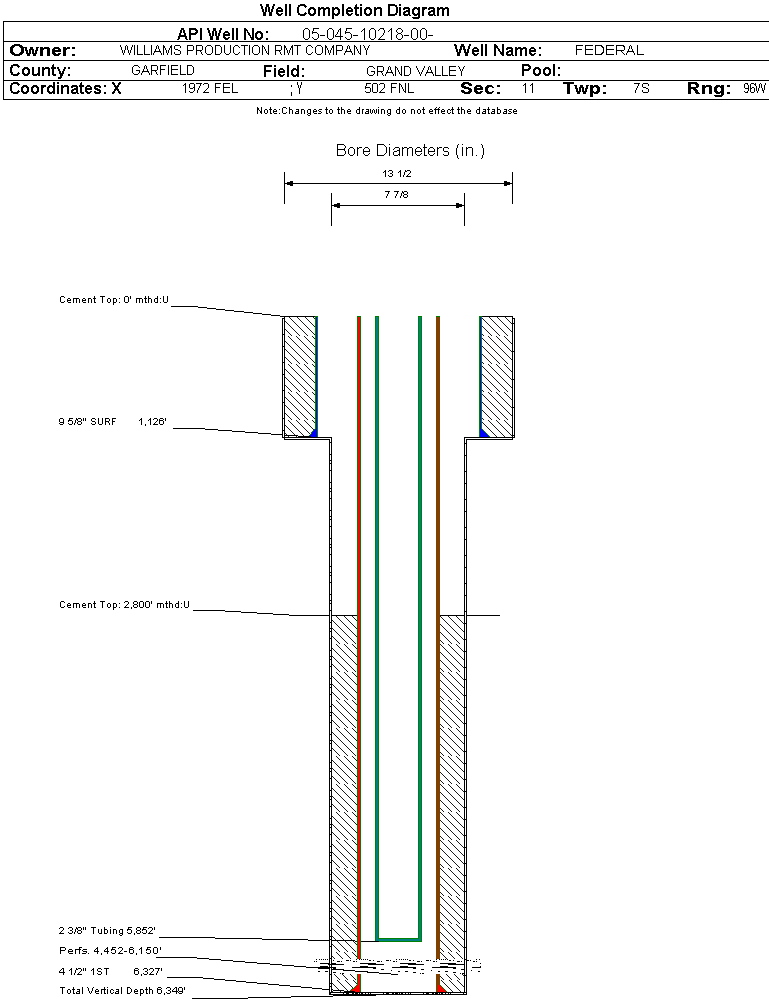

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10218		Well Classification: GW Status: PR - 11/21/2004
Well Name/No:FEDERAL #GM 331-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:070P088712
Facility Status:PRStatus Date11/21/2004
FacilityID:273092LocationID:334982
County:GARFIELD #045Location:NWNE 11 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5348 ft.
Basin:PICEANCE BASIN
Planned Location:502FNL  1972 FELLat/Long: 39.457929 / -108.074985Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.458253 / -108.075241Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/21/2004             Measured TD: 6365 ft.    Vertical TD: 6349 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/21/2004
Wellbore PermitDIRECTIONAL
Permit #:20041571 Expiration Date:7/21/2005
Proposed Top PZ Location:Sec: Twp: Footage: 262 FNL  1872 FEL
Bottom Hole Location:Sec: Twp: Footage: 262 FNL  1872 FEL
Proposed Depth/Form:6337 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-10 , Unit Acreage: 320, Drill Unit: N2
Wellbore Completed
Completion Date:10/12/2004
Spud Date:9/9/2004Spud Date Is:ACTUAL
Measured TD:6365 ft.Measured PB depth:6294 ft.
True Vertical TD:6349 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 262 FNL  1872 FEL
Bottom Hole Location:Sec: Twp: Footage: 262 FNL  1872 FEL
Log Types:RESERVOIR PERFORMANCE MONITOR, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1126 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 0 ft., Bottom: 1126 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6327 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 800, Top: 2800 ft., Bottom: 6327 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1517 ft.NN
FORT UNION1838 ft.NN
MESAVERDE3254 ft.NN
CAMEO5740 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/21/2004                Interval Top: 4452 ft.    Interval Bottom: 6150 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/12/2004
Treatment Summary:4750 GAL 7 1/2% HCL, 729578# 30/50 SAND, 16593 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:5852 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/21/2004Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1298
CASING_PRESS 1595
MCF_GAS 1298
TUBING_PRESS 1356
Perforation Data:
Interval Top:4452 ft.# Of Holes:114
Interval Bottom:6150 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)17
Total Gas Produced (MCF)14743
GOR867235
GOR DeterminationMCFE
Average BOE per Day7.013
Average MCFE per Day40.669

 Federal Financial Assurance  i Y

 Tribal Well  i No
