COGIS - WELL SCOUT CARD

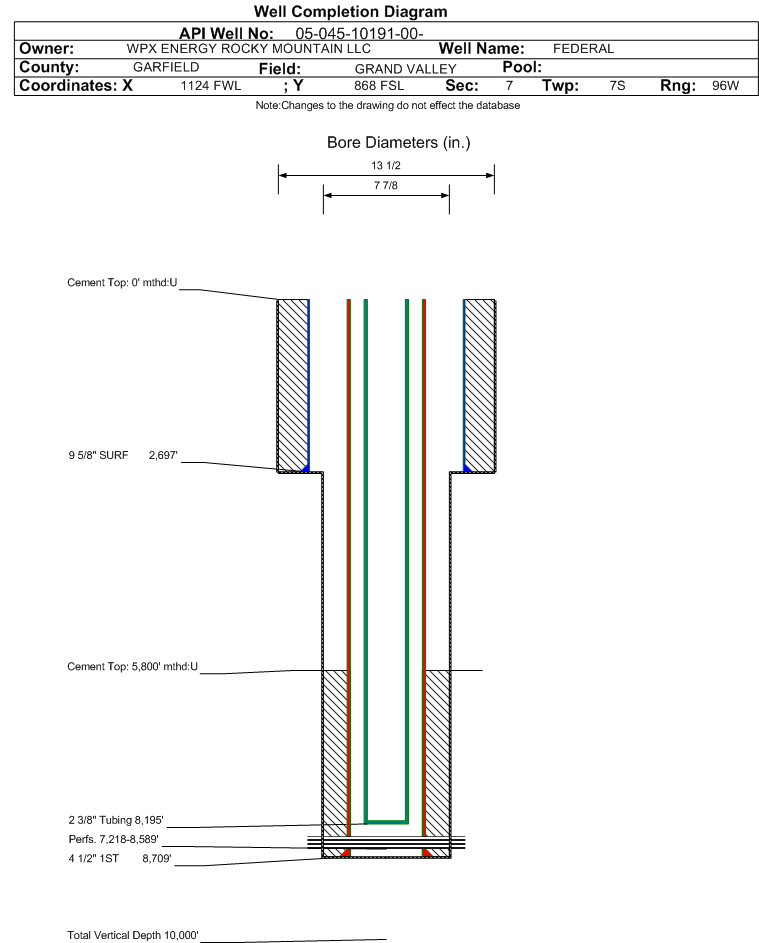

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10191		Well Classification: GW Status: PR - 11/28/2004
Well Name/No:FEDERAL #GM 14-7
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 56827
Facility Status:PRStatus Date11/28/2004
FacilityID:272899LocationID:324276
County:GARFIELD #045Location:SWSW 7 7S96W 6
Field:GRAND VALLEY - #31290Elevation:8527 ft.
Basin:PICEANCE BASIN
Planned Location:868FSL  1124 FWLLat/Long: 39.446899 / -108.155177Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.446963 / -108.155212Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/28/2004             Measured TD: 8756 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/28/2004
Wellbore Permit
Permit #:20041433 Expiration Date:7/6/2005
Proposed Depth/Form:8785 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-1 , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:11/19/2004
Spud Date:8/26/2004Spud Date Is:ACTUAL
Measured TD:8756 ft.Measured PB depth:8712 ft.
True Vertical TD:True Vertical PB depth:
Log Types:HIGH DEFINITION INDUCTION LOG, COMPENSATED Z-DENSILOG, COMPENSATED NEUTRON, GR, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2697 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 1110, Top: 0 ft., Bottom: 2697 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 8709 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 800, Top: 5800 ft., Bottom: 8709 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G4406 ft.NN
FORT UNION4632 ft.NN
MESAVERDE5762 ft.NN
CAMEO8185 ft.NN
ROLLINS8620 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/28/2004                Interval Top: 7218 ft.    Interval Bottom: 8589 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:11/19/2004Choke Size:0.313 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:11/19/2004
Treatment Summary:3250 GALS 7 1/2% HCL, 431260# 20/40, 8634 BBLS SLICK WATER, 272 TONS CO2 (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:8195 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/28/2004Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1540
CASING_PRESS 1073
MCF_GAS 1540
TUBING_PRESS 866
Perforation Data:
Interval Top:7218 ft.# Of Holes:85
Interval Bottom:8589 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
October 2024 - September 2025i
Total Oil Produced (Barrels)28
Total Gas Produced (MCF)23211
GOR828964
GOR DeterminationMCFE
Average BOE per Day11.048
Average MCFE per Day64.082

 Federal Financial Assurance  i Y

 Tribal Well  i No
