Wellbore #00 Wellbore Classification: GW Status: PR - 5/1/2013 Measured TD: 6622 ft. Vertical TD: 6570 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 5/1/2013 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20051140 | Expiration Date: | 4/28/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1640 FSL 1783 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1640 FSL 1783 FEL | | Proposed Depth/Form: | 6691 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: S2 | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: , Depth: 45 ft., Weight: 32 , Citings Type: PLANNED | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft. |
| | |

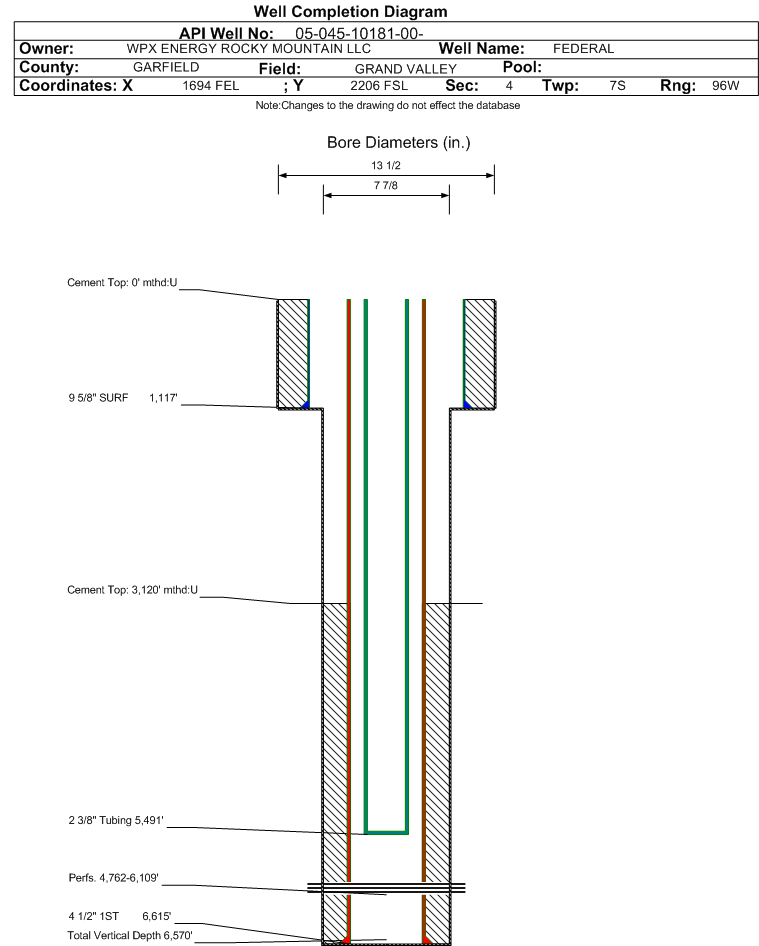

| Wellbore Completed | | Completion Date: | 9/2/2005 | | Spud Date: | 7/10/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 6622 ft. | Measured PB depth: | 6607 ft. | | True Vertical TD: | 6570 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 1640 FSL 1783 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1640 FSL 1783 FEL | | Log Types: | CBL, RESERVOIR MONITOR TOOL ELITE | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1117 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 375, Top: 0 ft., Bottom: 1117 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6615 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 780, Top: 3120 ft., Bottom: 6615 ft., Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2009 ft. | | N | N | | FORT UNION | 2335 ft. | | N | N | | MESAVERDE | 3577 ft. | | N | N | | CAMEO | 6084 ft. | | N | N | | ROLLINS | 6533 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 5/1/2013 Interval Top: 4762 ft. Interval Bottom: 6109 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/2/2005 | | Treatment Summary: | 3250 GALS 7 1/2% HCL, 1750 10% ACETIC, 483000# 30/50, 10759 BBLS SLICK WATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 5491 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/2/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1003 | | CASING_PRESS | 987 | | MCF_GAS | 1003 | | TUBING_PRESS | 727 |
| | Perforation Data: | | Interval Top: | 4762 ft. | # Of Holes: | 85 | | Interval Bottom: | 6109 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | Y | Production Period
10/2024 - 09/2025 |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 540 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 0.249 |
| Average MCFE per Day | 1.480 |
| Federal Financial Assurance | i | Y |
|
|
