COGIS - WELL SCOUT CARD

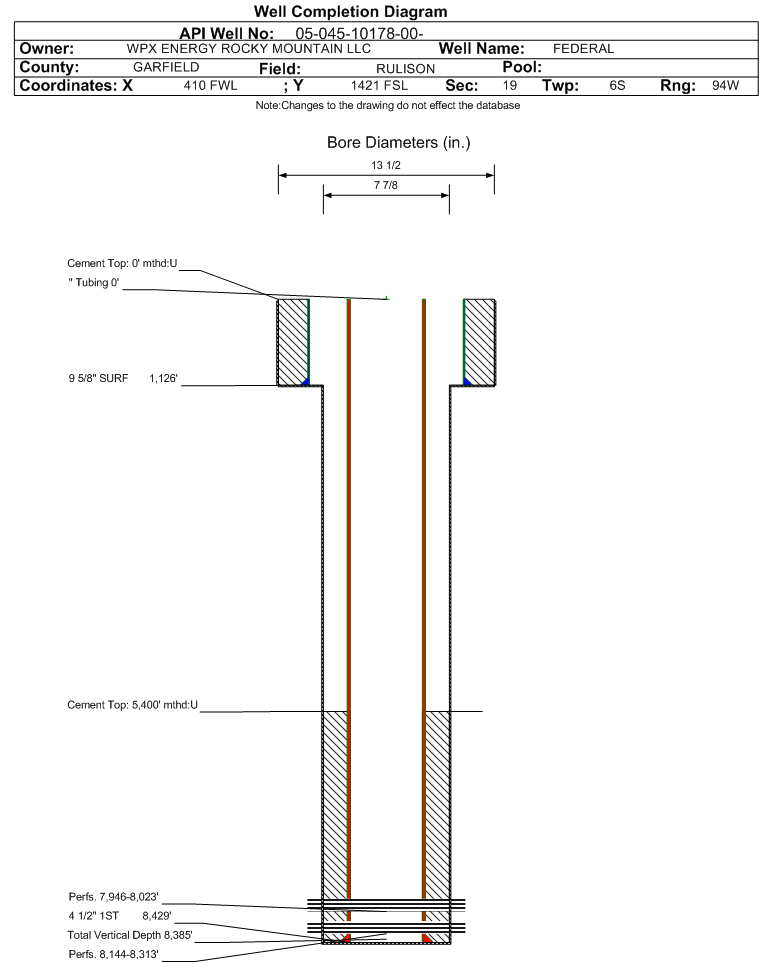

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10178		Well Classification: GW Status: PR - 7/1/2021
Well Name/No:FEDERAL #RWF 413-19
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62160
Facility Status:PRStatus Date7/1/2021
FacilityID:272859LocationID:335434
County:GARFIELD #045Location:NWSW 19 6S94W 6
Field:RULISON - #75400Elevation:5730 ft.
Basin:PICEANCE BASIN
Planned Location:1421FSL  410 FWLLat/Long: 39.507009 / -107.936801Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.507061 / -107.936785Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 7/1/2021             Measured TD: 8445 ft.    Vertical TD: 8385 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 7/1/2021
Wellbore Permit
Permit #:20041420 Expiration Date:7/1/2005
Proposed Depth/Form:8430 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 510-10 , Unit Acreage: 320, Drill Unit: S/2
Wellbore Completed
Completion Date:1/4/2005
Spud Date:10/17/2004Spud Date Is:ACTUAL
Measured TD:8445 ft.Measured PB depth:
True Vertical TD:8385 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2173 FSL  234 FWL
Bottom Hole Location:Sec: Twp: Footage: 2163 FSL  233 FWL
Log Types:HIGH RESOLUTION INDUCTION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1126 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 0 ft., Bottom: 1126 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8429 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 990, Top: 5400 ft., Bottom: 8429 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2453 ft.NN
MESAVERDE4880 ft.NN
CAMEO7431 ft.NN
ROLLINS8382 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 7/1/2021                  Interval Top: 8144 ft.    Interval Bottom: 8313 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:7/12/2011Choke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:7/12/2011
Treatment Summary:1000 GALS 7 1/2% HCL; 56300 # 30/50 SAND; 1704 BBLS SLICKWATER (SUMMARY)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:8144 ft.# Of Holes:14
Interval Bottom:8313 ft.Hole Size:0.42 in.

Formation WFCM                     Formation Classification:  GW                     Status:  AB - 7/12/2011                 Interval Top: 7946 ft.    Interval Bottom: 8023 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:
Formation Treatment
Treatment Date:7/12/2011
Treatment Summary:750 GALS 7 1/2% HCL; 63000# 30/50, 1618 BBLS SLICK WATER
Formation Treatment
Treatment Date:1/4/2005
Treatment Summary:5750 GALS 7 1/2% HCL, 774500# 30/50, 19324 BBLS SLICK WATER (SUMMARY)
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:N/ATest Method:
Hours Tested:Gas Type:
Gas Disposal:
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1472
CASING_PRESS 1966
MCF_GAS 1472
TUBING_PRESS 1969
Perforation Data:
Interval Top:7946 ft.# Of Holes:11
Interval Bottom:8023 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)31
Total Gas Produced (MCF)18739
GOR604483
GOR DeterminationMCFE
Average BOE per Day8.936
Average MCFE per Day51.837

 Federal Financial Assurance  i Y

 Tribal Well  i No
