COGIS - WELL SCOUT CARD

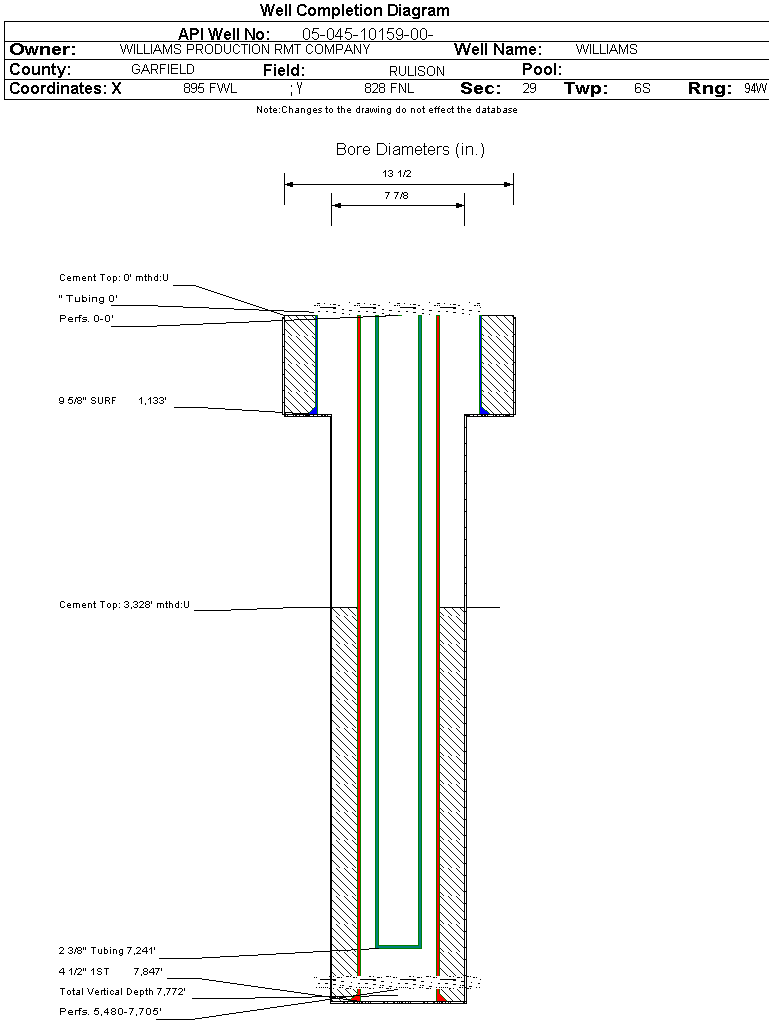

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10159		Well Classification: GW Status: PR - 12/3/2004
Well Name/No:WILLIAMS #RWF 12-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date12/3/2004
FacilityID:272787LocationID:335141
County:GARFIELD #045Location:NWNW 29 6S94W 6
Field:RULISON - #75400Elevation:5263 ft.
Basin:PICEANCE BASIN
Planned Location:828FNL  895 FWLLat/Long: 39.501009 / -107.917861Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.501092 / -107.918035Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 12/3/2004             Measured TD: 7860 ft.    Vertical TD: 7772 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 12/3/2004
Wellbore PermitDIRECTIONAL
Permit #:20041354 Expiration Date:6/28/2005
Proposed Top PZ Location:Sec: Twp: Footage: 1520 FNL  450 FWL
Bottom Hole Location:Sec: Twp: Footage: 1520 FNL  450 FWL
Proposed Depth/Form:7555 ft.
Surface Mineral Owner Same:No
Mineral Owner:FEDERALSurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-28 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:10/30/2004
Spud Date:10/3/2004Spud Date Is:ACTUAL
Measured TD:7860 ft.Measured PB depth:7790 ft.
True Vertical TD:7772 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1520 FNL  450 FWL
Bottom Hole Location:Sec: Twp: Footage: 1520 FNL  450 FWL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1133 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 0 ft., Bottom: 1133 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7847 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1082, Top: 3328 ft., Bottom: 7847 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1809 ft.NN
MESAVERDE4206 ft.NN
CAMEO6830 ft.NN
ROLLINS7768 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 12/3/2004                 Interval Top: 5480 ft.    Interval Bottom: 7705 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/30/2004
Treatment Summary:6000 GALS 7 1/2% HCL, 586652# 20/40, 14735 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:7241 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/3/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1351
CASING_PRESS 2033
MCF_GAS 1351
TUBING_PRESS 1835
Perforation Data:
Interval Top:5480 ft.# Of Holes:100
Interval Bottom:7705 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 12/3/2004

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:10/30/2004
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:# Of Holes:
Interval Bottom:Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)18
Total Gas Produced (MCF)10853
GOR602944
GOR DeterminationMCFE
Average BOE per Day5.178
Average MCFE per Day30.063

 Federal Financial Assurance  i Y

 Tribal Well  i No
