Wellbore #00 Wellbore Classification: GW Status: PR - 8/29/2005 Measured TD: 7950 ft. Vertical TD: 7810 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 8/29/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20041358 | Expiration Date: | 6/28/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1890 FSL 189 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1890 FSL 189 FWL | | Proposed Depth/Form: | 8041 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: S/2 |
| | |

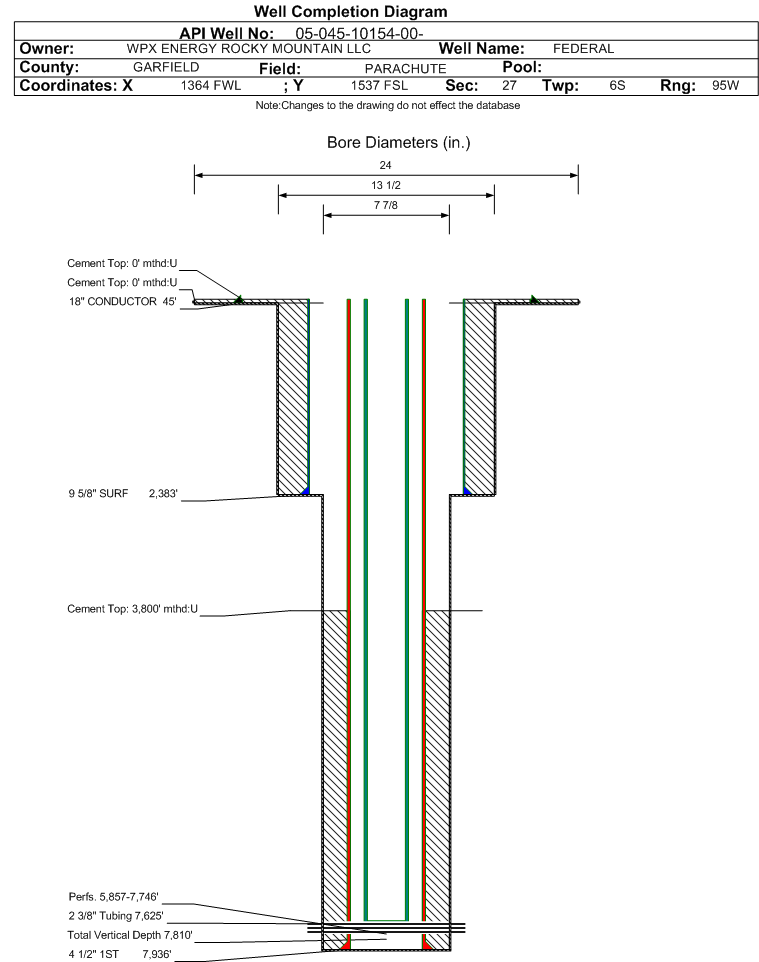

| Wellbore Completed | | Completion Date: | 1/11/2005 | | Spud Date: | 10/30/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 7950 ft. | Measured PB depth: | 7910 ft. | | True Vertical TD: | 7810 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec: Twp: | Footage: 1890 FSL 189 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 1890 FSL 189 FWL | | Log Types: | HIGH RESOLUTION IND-SPECTRAL DEN-SPACE NEU,CBL | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 45 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2383 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 635, Top: 0 ft., Bottom: 2383 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7936 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 875, Top: 3800 ft., Bottom: 7935 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2159 ft. | | N | N | | FORT UNION | 2414 ft. | | N | N | | MESAVERDE | 4437 ft. | | N | N | | CAMEO | 7154 ft. | | N | N | | ROLLINS | 7899 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 8/29/2005 Interval Top: 5857 ft. Interval Bottom: 7746 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 1/11/2005 | | Treatment Summary: | 4000 GALS 7 1/2% HCL, 589200# 30/50, 13597 BBLS SLICK WATER (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7625 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 2/16/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1001 | | CASING_PRESS | 1324 | | MCF_GAS | 1001 | | TUBING_PRESS | 1151 |
| | Perforation Data: | | Interval Top: | 5857 ft. | # Of Holes: | 93 | | Interval Bottom: | 7746 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 11 |
| Total Gas Produced (MCF) | 7580 |
| GOR | 689090 |
| GOR Determination | MCFE |
| Average BOE per Day | 3.610 |
| Average MCFE per Day | 20.945 |
| Federal Financial Assurance | i | Y |
|
|
