Wellbore #00 Wellbore Classification: GW Status: PR - 10/10/2005 Measured TD: 8022 ft. Vertical TD: 8002 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 10/10/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20051123 | Expiration Date: | 4/26/2006 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 1604 FSL 578 FEL | | Bottom Hole Location: | Sec: Twp: | Footage: 1604 FSL 578 FEL | | Proposed Depth/Form: | 8118 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: S2 |
| | |

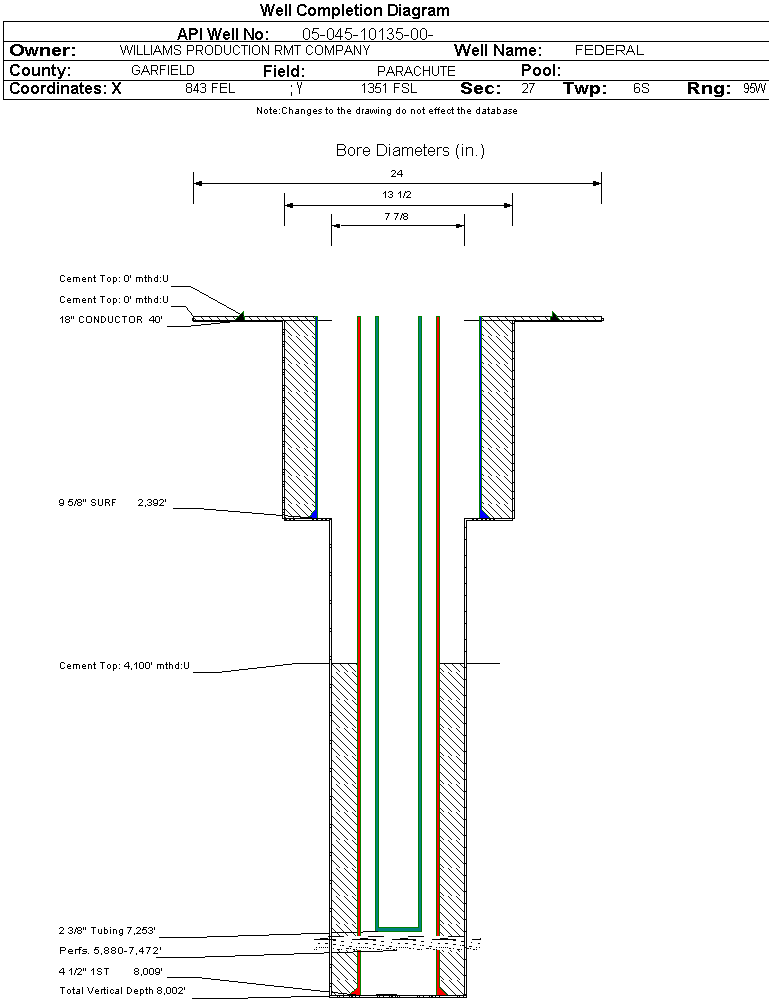

| Wellbore Completed | | Completion Date: | 8/23/2005 | | Spud Date: | 8/12/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 8022 ft. | Measured PB depth: | 7948 ft. | | True Vertical TD: | 8002 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:27 Twp: 6S 95W | Footage: 1624 FSL 566 FEL | | Bottom Hole Location: | Sec:27 Twp: 6S 95W | Footage: 1624 FSL 566 FEL | | Log Types: | CBL; RESERVOIR MONITOR TOOL ELITE; MUD; CHI PROCESSED TRIPLE COMBO | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 18 in., Top: 0 ft., Depth: 40 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 25, Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2392 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 632, Top: 0 ft., Bottom: 2392 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8009 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 885, Top: 4100 ft., Bottom: 8009 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH G | 2168 ft. | | N | N | | FORT UNION | 2443 ft. | | N | N | | MESAVERDE | 4473 ft. | | N | N | | CAMEO | 7279 ft. | | N | N | | ROLLINS | 7960 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 10/10/2005 Interval Top: 5880 ft. Interval Bottom: 7472 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | 9/9/2005 | Choke Size: | 0.203 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/2/2005 | | Treatment Summary: | 9/2/05 1750 GALS 10% ACETIC ACID; 1500 GALS 7 1/2% HCL; 625100# 30/50 SAND; 14688 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7253 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/10/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1480 | | CASING_PRESS | 1935 | | MCF_GAS | 14810 | | TUBING_PRESS | 1825 |
| | Perforation Data: | | Interval Top: | 5880 ft. | # Of Holes: | 97 | | Interval Bottom: | 7472 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 24 |
| Total Gas Produced (MCF) | 12287 |
| GOR | 511958 |
| GOR Determination | MCFE |
| Average BOE per Day | 5.877 |
| Average MCFE per Day | 34.084 |
| Federal Financial Assurance | i | Y |
|
|
