COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10096		Well Classification: GW Status: PR - 11/22/2004
Well Name/No:FEDERAL #RWF 442-19
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date11/22/2004
FacilityID:272541LocationID:335109
County:GARFIELD #045Location:SENE 19 6S94W 6
Field:RULISON - #75400Elevation:5521 ft.
Basin:PICEANCE BASIN
Planned Location:2238FNL  1026 FELLat/Long: 39.511459 / -107.924851Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.511518 / -107.924854Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/22/2004             Measured TD: 8095 ft.    Vertical TD: 8056 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/22/2004
Wellbore PermitDIRECTIONAL
Permit #:20041103 Expiration Date:6/7/2005
Proposed Top PZ Location:Sec: Twp: Footage: 2054 FNL  489 FEL
Bottom Hole Location:Sec: Twp: Footage: 2054 FNL  489 FEL
Proposed Depth/Form:8125 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: N/2
Casing:String Type: CONDUCTOR, Hole Size: , Size: 16 in., Top: , Depth: 45 ft., Weight: , Citings Type: PLANNED
Cement:Sacks: , Top: , Bottom:
Wellbore Completed
Completion Date:10/2/2004
Spud Date:8/22/2004Spud Date Is:ACTUAL
Measured TD:8095 ft.Measured PB depth:7865 ft.
True Vertical TD:8056 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2054 FNL  489 FEL
Bottom Hole Location:Sec: Twp: Footage: 2054 FNL  489 FEL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL

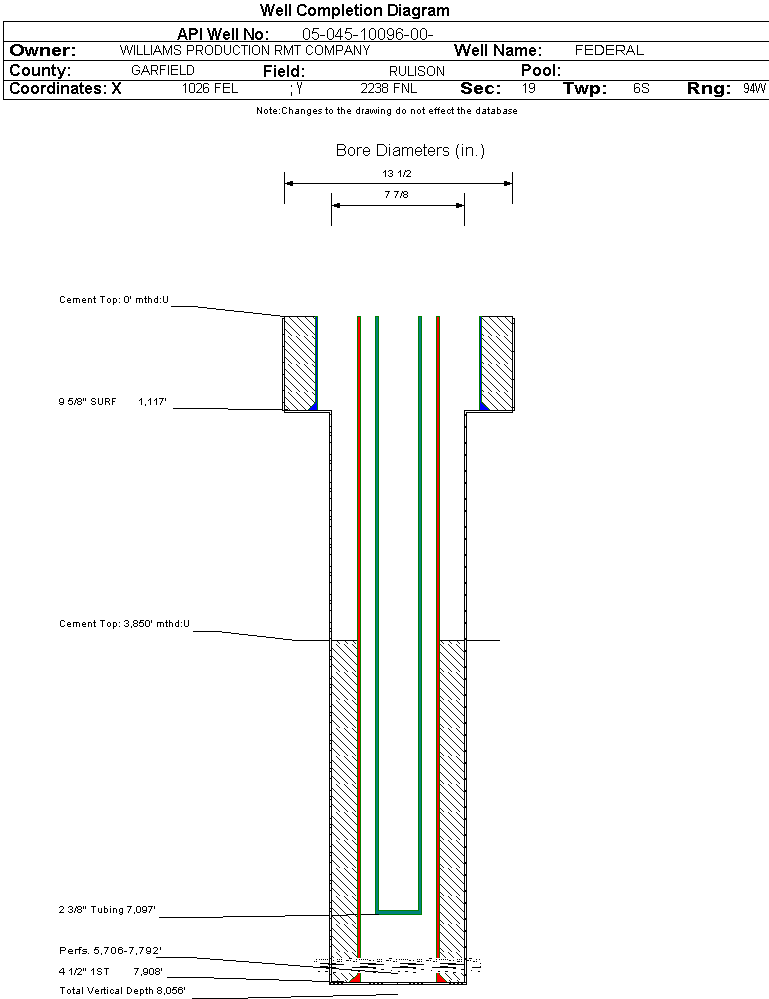

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1117 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 0 ft., Bottom: 1117 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7908 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 970, Top: 3850 ft., Bottom: 7908 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH2092 ft.NN
MESAVERDE4528 ft.NN
CAMEO7128 ft.NN
ROLLINS8059 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/22/2004                Interval Top: 5706 ft.    Interval Bottom: 7792 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/2/2004
Treatment Summary:4000 GALS 7 1/2% HCL, 59919# 30/50, 14287 BBLS SLICK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:7097 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/22/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1681
CASING_PRESS 2038
MCF_GAS 1681
TUBING_PRESS 1935
Perforation Data:
Interval Top:5706 ft.# Of Holes:88
Interval Bottom:7792 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)17
Total Gas Produced (MCF)11812
GOR694823
GOR DeterminationMCFE
Average BOE per Day5.628
Average MCFE per Day32.645

 Federal Financial Assurance  i Y

 Tribal Well  i No
