COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10070		Well Classification: GW Status: PR - 11/12/2004
Well Name/No:FEDERAL #PA 342-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:C19572
Facility Status:PRStatus Date11/12/2004
FacilityID:272393LocationID:335450
County:GARFIELD #045Location:SENE 29 6S95W 6
Field:PARACHUTE - #67350Elevation:6124 ft.
Basin:PICEANCE BASIN
Planned Location:2111FNL  783 FELLat/Long: 39.496691 / -108.015137Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.496702 / -108.015124Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/12/2004             Measured TD: 7895 ft.    Vertical TD: 7883 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/12/2004
Wellbore PermitDIRECTIONAL
Permit #:20041000 Expiration Date:5/24/2005
Proposed Top PZ Location:Sec: Twp: Footage: 2351 FNL  552 FEL
Bottom Hole Location:Sec: Twp: Footage: 2351 FNL  552 FEL
Proposed Depth/Form:7955 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: ILES , Formation: ILES , Order: 139-46 , Unit Acreage: 640, Drill Unit: ALL
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-44 , Unit Acreage: 640, Drill Unit: ALL
Casing:String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: , Depth: 40 ft., Weight: LINEPIPE , Citings Type: PLANNED
Cement:Sacks: 5, Top: 0 ft., Bottom: 40 ft.
Casing:String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: , Depth: 750 ft., Weight: 24 , Citings Type: PLANNED
Cement:Sacks: 480, Top: 0 ft., Bottom: 750 ft.
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: , Depth: 7123 ft., Weight: 11.6 , Citings Type: PLANNED
Cement:Sacks: 696, Top: , Bottom: 7123 ft.
Wellbore Completed
Completion Date:10/4/2004
Spud Date:8/20/2004Spud Date Is:ACTUAL
Measured TD:7895 ft.Measured PB depth:7839 ft.
True Vertical TD:7883 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 490 FNL  1980 FWL
Bottom Hole Location:Sec:30 Twp: 7S 95WFootage: 490 FNL  1980 FWL
Log Types:RESERVOIR PERFORMANCE MONITOR, CBL

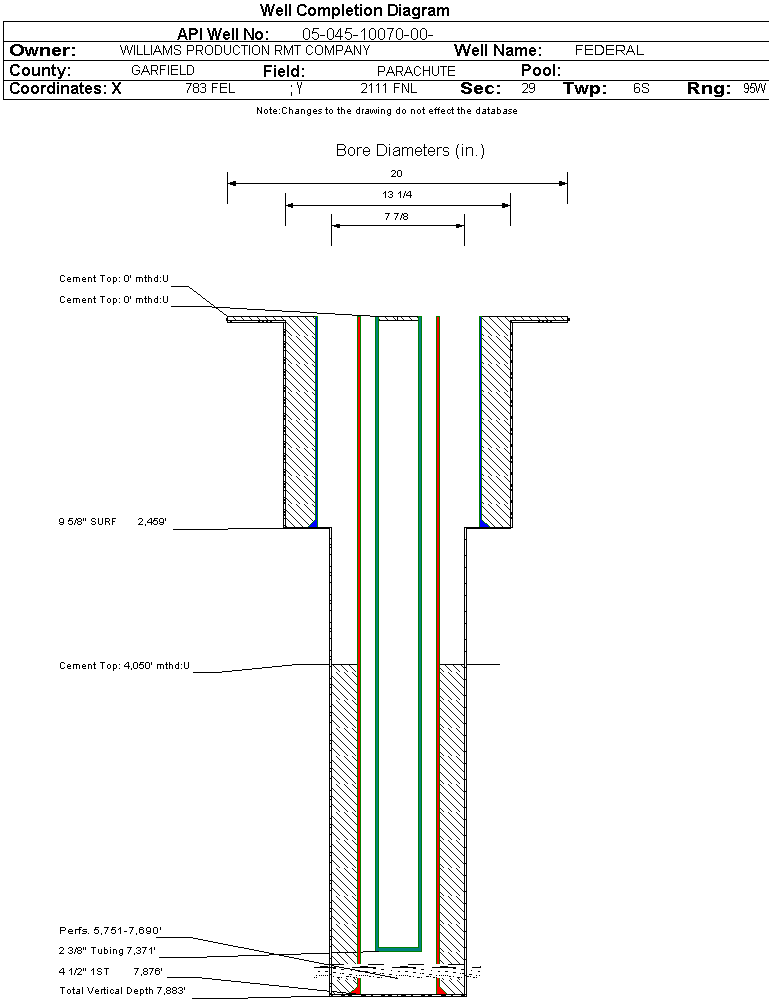

Casing:String Type: CONDUCTOR, Hole Size: 20 in., Size: 16 in., Top: 0 ft., Depth: 45 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 25, Top: 0 ft., Bottom: 45 ft., Determination Method: CALC
Casing:String Type: SURF, Hole Size: 13.25 in., Size: 9.625 in., Top: 0 ft., Depth: 2459 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 770, Top: 0 ft., Bottom: 2459 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7876 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 930, Top: 4050 ft., Bottom: 7875 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2265 ft.NN
FORT UNION2617 ft.NN
MESAVERDE4423 ft.NN
CAMEO7229 ft.NN
ROLLINS7780 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/12/2004                Interval Top: 5751 ft.    Interval Bottom: 7690 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/4/2004
Treatment Summary:4000 GALS 7 1/2% HCL, 573337# 20/40,13802 BBLS SLICKWATER(SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:7371 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/12/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1183
CASING_PRESS 1284
MCF_GAS 1183
TUBING_PRESS 1141
Perforation Data:
Interval Top:5751 ft.# Of Holes:79
Interval Bottom:7690 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)11
Total Gas Produced (MCF)6941
GOR631000
GOR DeterminationMCFE
Average BOE per Day3.313
Average MCFE per Day19.201

 Federal Financial Assurance  i Y

 Tribal Well  i No
