COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10067		Well Classification: GW Status: PR - 3/8/2005
Well Name/No:CLOUGH #RWF 442-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COGJ05
Facility Status:PRStatus Date3/8/2005
FacilityID:272382LocationID:335263
County:GARFIELD #045Location:SENE 20 6S94W 6
Field:RULISON - #75400Elevation:5442 ft.
Basin:PICEANCE BASIN
Planned Location:1494FNL  1129 FELLat/Long: 39.513789 / -107.906811Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.513885 / -107.906859Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 3/8/2005             Measured TD: 7940 ft.    Vertical TD: 7889 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 3/8/2005
Wellbore PermitDIRECTIONAL
Permit #:20041008 Expiration Date:5/24/2005
Proposed Top PZ Location:Sec: Twp: Footage: 2111 FNL  748 FEL
Bottom Hole Location:Sec: Twp: Footage: 2111 FNL  748 FEL
Proposed Depth/Form:7985 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: E/2

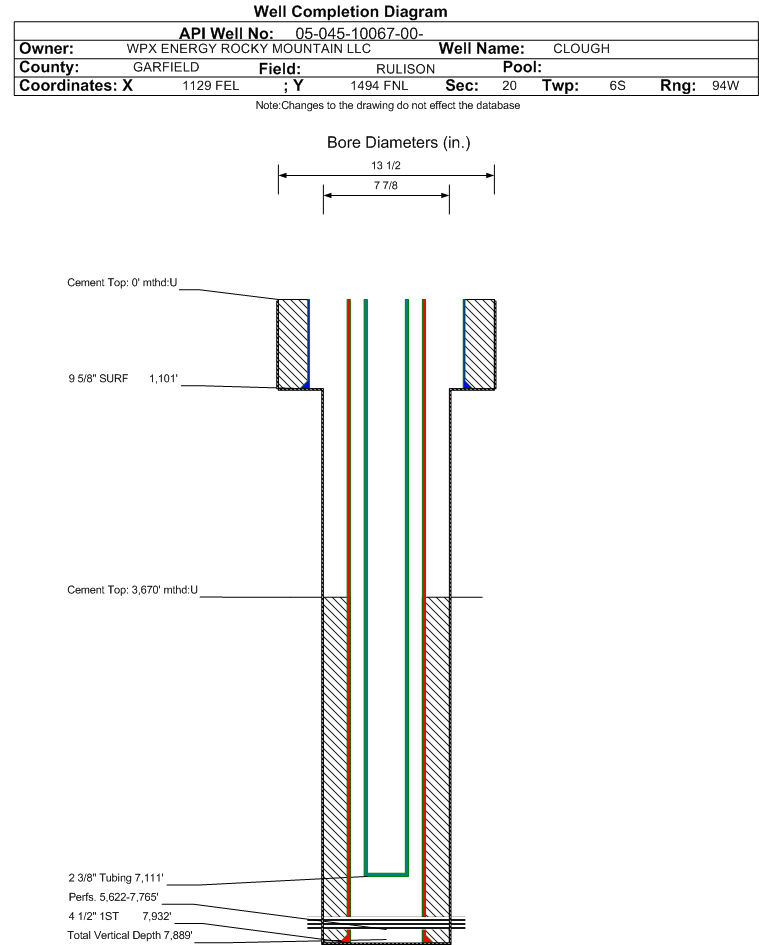

Wellbore Completed
Completion Date:2/2/2005
Spud Date:1/1/2005Spud Date Is:ACTUAL
Measured TD:7940 ft.Measured PB depth:7864 ft.
True Vertical TD:7889 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 2111 FNL  748 FEL
Bottom Hole Location:Sec: Twp: Footage: 2111 FNL  748 FEL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1101 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 365, Top: 0 ft., Bottom: 1101 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7932 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1070, Top: 3670 ft., Bottom: 7932 ft., Determination Method:
FormationInterval TopLog BottomCoredDSTs
WASATCH G1871 ft.NN
MESAVERDE4300 ft.NN
CAMEO6995 ft.NN
ROLLINS7955 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 3/8/2005                  Interval Top: 5622 ft.    Interval Bottom: 7765 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:2/2/2005
Treatment Summary:3500 GALS 7 1/2% HCL, 705200# 20/40, 16771 BBLS SLCIK WATER (SUMMARY)
Tubing Size:2.375 in.Tubing Setting Depth:7111 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:3/8/2005Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1286
CASING_PRESS 1449
MCF_GAS 1286
TUBING_PRESS 1328
Perforation Data:
Interval Top:5622 ft.# Of Holes:110
Interval Bottom:7765 ft.Hole Size:0.42 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)52
Total Gas Produced (MCF)18920
GOR363846
GOR DeterminationMCFE
Average BOE per Day9.083
Average MCFE per Day52.681

 Federal Financial Assurance  i

 Tribal Well  i No
