COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10063		Well Classification: GW Status: PR - 1/27/2006
Well Name/No:PA #534-32
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date1/27/2006
FacilityID:272375LocationID:334700
County:GARFIELD #045Location:SWSE 32 6S95W 6
Field:PARACHUTE - #67350Elevation:5140 ft.
Basin:PICEANCE BASIN
Planned Location:811FSL  2046 FELLat/Long: 39.476049 / -108.019614Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.476078 / -108.019591Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 1/27/2006             Measured TD: 6617 ft.    Vertical TD: 6530 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 1/27/2006
Wellbore PermitDIRECTIONAL
Permit #:20051106 Expiration Date:4/25/2006
Proposed Top PZ Location:Sec: Twp: Footage: 540 FSL  2040 FEL
Bottom Hole Location:Sec: Twp: Footage: 540 FSL  2040 FEL
Proposed Depth/Form:6580 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 160, Drill Unit: SE4
Wellbore Completed
Completion Date:11/21/2005
Spud Date:11/12/2005Spud Date Is:ACTUAL
Measured TD:6617 ft.Measured PB depth:6582 ft.
True Vertical TD:6530 ft.True Vertical PB depth:
Top PZ Location:Sec:32 Twp: 6S 95WFootage: 186 FSL  1558 FEL
Bottom Hole Location:Sec:32 Twp: 6S 95WFootage: 186 FSL  1558 FEL
Log Types:CBL; RESERVOIR MONITOR TOOL ELITE, MUD

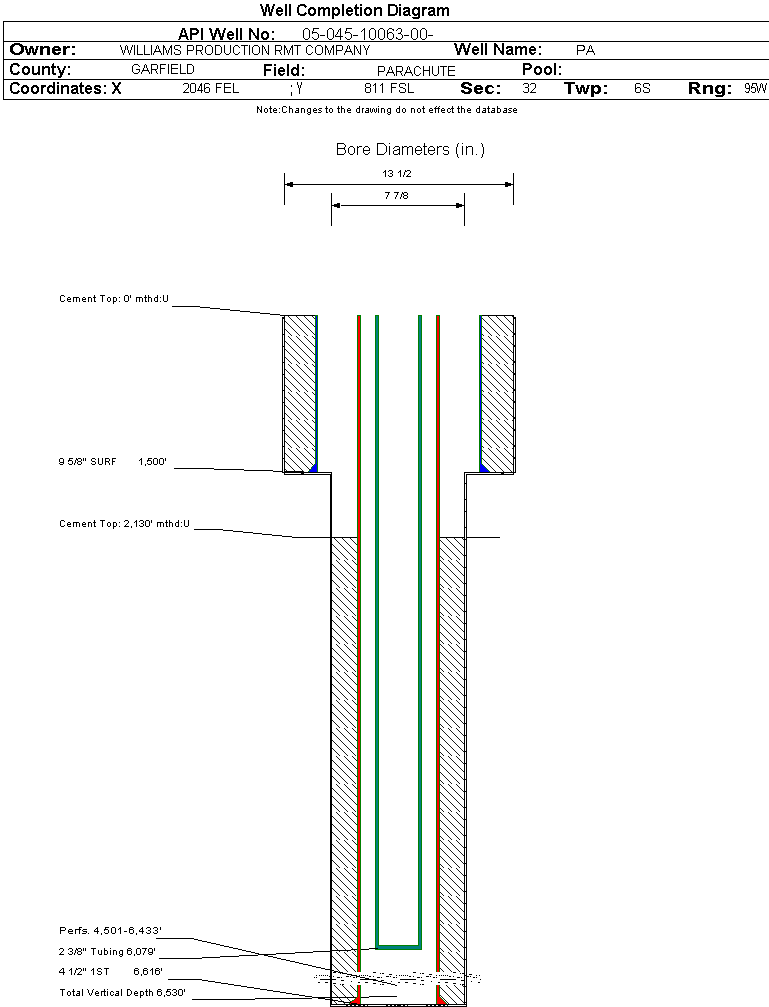

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1500 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 410, Top: 0 ft., Bottom: 1500 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6616 ft., Weight: , Citings Type: ACTUAL
Cement:Sacks: 885, Top: 2130 ft., Bottom: 6616 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1260 ft.NN
FORT UNION1530 ft.NN
MESAVERDE3351 ft.NN
CAMEO5828 ft.NN
ROLLINS6491 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 1/27/2006                 Interval Top: 4501 ft.    Interval Bottom: 6433 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:12/23/2005Choke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:12/20/2005
Treatment Summary:12/20/05 534 GALS 7 1/2% HCL; 4000 GALS 10% ACETIC ACID; 859100# 30/50 SAND; 16106 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:6079 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:1/27/2006Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1317
CASING_PRESS 1551
TUBING_PRESS 1439
Perforation Data:
Interval Top:4501 ft.# Of Holes:123
Interval Bottom:6433 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)25
Total Gas Produced (MCF)20189
GOR807560
GOR DeterminationMCFE
Average BOE per Day9.607
Average MCFE per Day55.728

 Federal Financial Assurance  i

 Tribal Well  i No
