Wellbore #00 Wellbore Classification: GW Status: PR - 4/19/2004 Measured TD: 8456 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/19/2004 | | Wellbore Permit | | | Permit #: | 20040949 | Expiration Date: | 5/12/2005 | | Proposed Depth/Form: | 8455 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

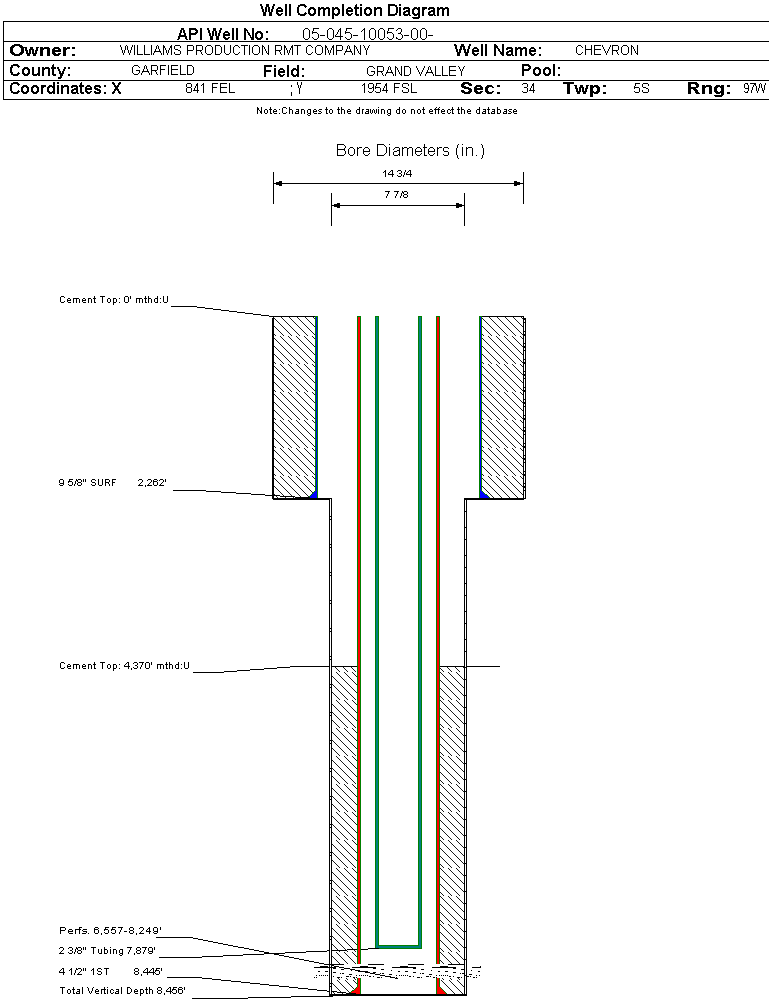

| Wellbore Completed | | Completion Date: | 11/8/2004 | | Spud Date: | 7/21/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 8456 ft. | Measured PB depth: | 8376 ft. | | True Vertical TD: | | True Vertical PB depth: | | | Log Types: | INDUCTION - BHC SONIC, NEUTRON DENSITY, CBL | | Casing: | String Type: SURF, Hole Size: 14.75 in., Size: 9.625 in., Top: 0 ft., Depth: 2262 ft., Weight: 32.3 , Citings Type: ACTUAL | | Cement: | Sacks: 940, Top: 0 ft., Bottom: 2262 ft., Determination Method: | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8445 ft., Weight: 13.5 , Citings Type: ACTUAL | | Cement: | Sacks: 732, Top: 4370 ft., Bottom: 8445 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 3903 ft. | | N | N | | FORT UNION | 4121 ft. | | N | N | | MESAVERDE | 5529 ft. | | N | N | | CAMEO | 7885 ft. | | N | N | | ROLLINS | 8290 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 4/1/2013 Interval Top: 6557 ft. Interval Bottom: 8249 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.500 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/8/2004 | | Treatment Summary: | 3500 GALS 7-1/2% HCL, 459154# 20/40, 10182 BBLS SLICK WATER, 248 TONS CO2 (SUMMARY) |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7879 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/20/2004 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1336 | | CASING_PRESS | 763 | | MCF_GAS | 1336 | | TUBING_PRESS | 425 |
| | Perforation Data: | | Interval Top: | 6557 ft. | # Of Holes: | 91 | | Interval Bottom: | 8249 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 37 |
| Total Gas Produced (MCF) | 16158 |
| GOR | 436702 |
| GOR Determination | MCFE |
| Average BOE per Day | 7.738 |
| Average MCFE per Day | 44.862 |
| Federal Financial Assurance | i | |
|
|
