Wellbore #00 Wellbore Classification: GW Status: PR - 11/11/2004 Measured TD: 7738 ft. Vertical TD: 7548 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 11/11/2004 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20040855 | Expiration Date: | 4/29/2005 | | Proposed Top PZ Location: | Sec: Twp: | Footage: 2359 FNL 666 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 2359 FNL 666 FWL | | Proposed Depth/Form: | 8380 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: W/2 |
| | |

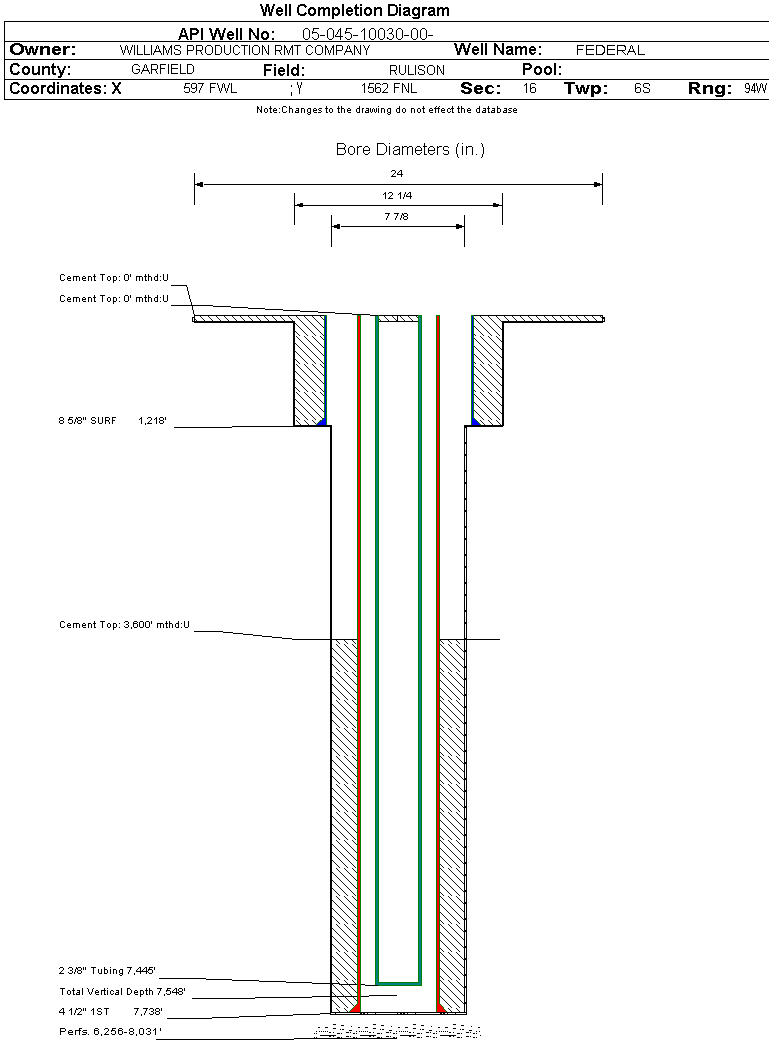

| Wellbore Completed | | Completion Date: | 12/29/2004 | | Spud Date: | 8/15/2005 | Spud Date Is: | ACTUAL | | Measured TD: | 7738 ft. | Measured PB depth: | 7320 ft. | | True Vertical TD: | 7548 ft. | True Vertical PB depth: | 0 ft. | | Top PZ Location: | Sec: Twp: | Footage: 2359 FNL 666 FWL | | Bottom Hole Location: | Sec: Twp: | Footage: 2359 FNL 666 FWL | | Log Types: | RESERVOIR MONITOR TOOL ELITE, CBL | | Log Types: | CBL, PEX, PEX | | Casing: | String Type: CONDUCTOR, Hole Size: 24 in., Size: 16 in., Top: 0 ft., Depth: 54 ft., Weight: 42.0 , Citings Type: ACTUAL | | Cement: | Sacks: 4, Top: 0 ft., Bottom: 54 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1218 ft., Weight: 24.0 , Citings Type: ACTUAL | | Cement: | Sacks: 635, Top: 0 ft., Bottom: 1218 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7738 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1640, Top: 3600 ft., Bottom: 7738 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 4343 ft. | N | N | | WASATCH G | 2144 ft. | | N | N | | WILLIAMS FORK | 4344 ft. | 7439 ft. | N | N | | MESAVERDE | 4642 ft. | | N | N | | ROLLINS | 7440 ft. | 7738 ft. | N | N | | CAMEO | 7447 ft. | | N | N |
Formation WFCM Formation Classification: GW Status: PR - 11/11/2004 Interval Top: 6256 ft. Interval Bottom: 8031 ft.| Completed Information for Formation WILLIAMS FORK - CAMEO | | 1st Production Date: | N/A | Choke Size: | 0.188 in. | | Formation Name: | WILLIAMS FORK - CAMEO | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/29/2004 | | Treatment Summary: | 3000 GALS 7-1/2% HCL, 460,021# 30/50, 11,200 BBLS SLICKWATER |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7445 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/11/2004 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | DRY | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1836 | | CASING_PRESS | 2459 | | MCF_GAS | 1836 | | TUBING_PRESS | 2444 |
| | Perforation Data: | | Interval Top: | 6256 ft. | # Of Holes: | 78 | | Interval Bottom: | 8031 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 36 |
| Total Gas Produced (MCF) | 13744 |
| GOR | 381777 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.589 |
| Average MCFE per Day | 38.223 |
| Federal Financial Assurance | i | Y |
|
|
