COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10018		Well Classification: GW Status: PR - 9/1/2004
Well Name/No:FEDERAL #GM 332-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date9/1/2004
FacilityID:272086LocationID:334969
County:GARFIELD #045Location:SWNE 11 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5596 ft.
Basin:PICEANCE BASIN
Planned Location:1949FNL  2044 FELLat/Long: 39.453949 / -108.075225Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.454284 / -108.075439Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/1/2004             Measured TD: 6473 ft.    Vertical TD: 6471 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/1/2004
Wellbore PermitDIRECTIONAL
Permit #:20040820 Expiration Date:4/28/2005
Proposed Top PZ Location:Sec: Twp: Footage: 1989 FNL  1914 FEL
Bottom Hole Location:Sec: Twp: Footage: 1989 FNL  1914 FEL
Proposed Depth/Form:6520 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:7/24/2004
Spud Date:6/13/2004Spud Date Is:ACTUAL
Measured TD:6473 ft.Measured PB depth:6420 ft.
True Vertical TD:6471 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1989 FNL  1914 FEL
Bottom Hole Location:Sec: Twp: Footage: 1989 FNL  1914 FEL
Log Types:HI DEF IND COMP Z-DENSILOG COMP NEU GR/CAL,CBL

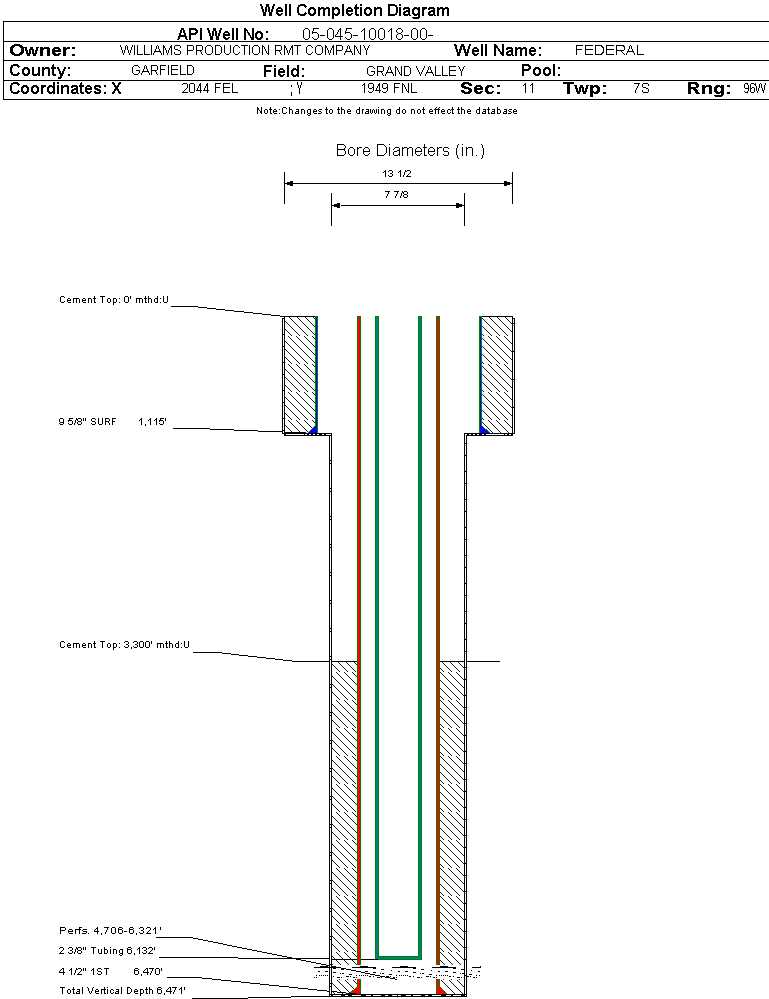

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1115 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 0 ft., Bottom: 1115 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6470 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 750, Top: 3300 ft., Bottom: 6470 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1720 ft.NN
FORT UNION2015 ft.NN
MESAVERDE3432 ft.NN
CAMEO5878 ft.NN
ROLLINS6420 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 9/1/2004                  Interval Top: 4706 ft.    Interval Bottom: 6321 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:7/24/2004
Treatment Summary:SEE SCANNED DOC # 1268043
Tubing Size:2.375 in.Tubing Setting Depth:6132 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/1/2004Test Method:
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1089
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1283
CASING_PRESS 1722
MCF_GAS 1283
TUBING_PRESS 1556
Perforation Data:
Interval Top:4706 ft.# Of Holes:79
Interval Bottom:6321 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)17
Total Gas Produced (MCF)13856
GOR815058
GOR DeterminationMCFE
Average BOE per Day6.589
Average MCFE per Day38.240

 Federal Financial Assurance  i Y

 Tribal Well  i No
