COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-10016		Well Classification: GW Status: PR - 8/30/2004
Well Name/No:FEDERAL #GM 32-11
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/30/2004
FacilityID:272084LocationID:334969
County:GARFIELD #045Location:SWNE 11 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5607 ft.
Basin:PICEANCE BASIN
Planned Location:1934FNL  2039 FELLat/Long: 39.453989 / -108.075205Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.454322 / -108.075421Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/30/2004             Measured TD: 6614 ft.    Vertical TD: 6594 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/30/2004
Wellbore PermitDIRECTIONAL
Permit #:20040819 Expiration Date:4/28/2005
Proposed Top PZ Location:Sec: Twp: Footage: 1629 FNL  1807 FEL
Bottom Hole Location:Sec: Twp: Footage: 1629 FNL  1807 FEL
Proposed Depth/Form:6540 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:7/25/2004
Spud Date:6/26/2004Spud Date Is:ACTUAL
Measured TD:6614 ft.Measured PB depth:6528 ft.
True Vertical TD:6594 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1629 FNL  1807 FEL
Bottom Hole Location:Sec: Twp: Footage: 1629 FNL  1807 FEL
Log Types:C B L

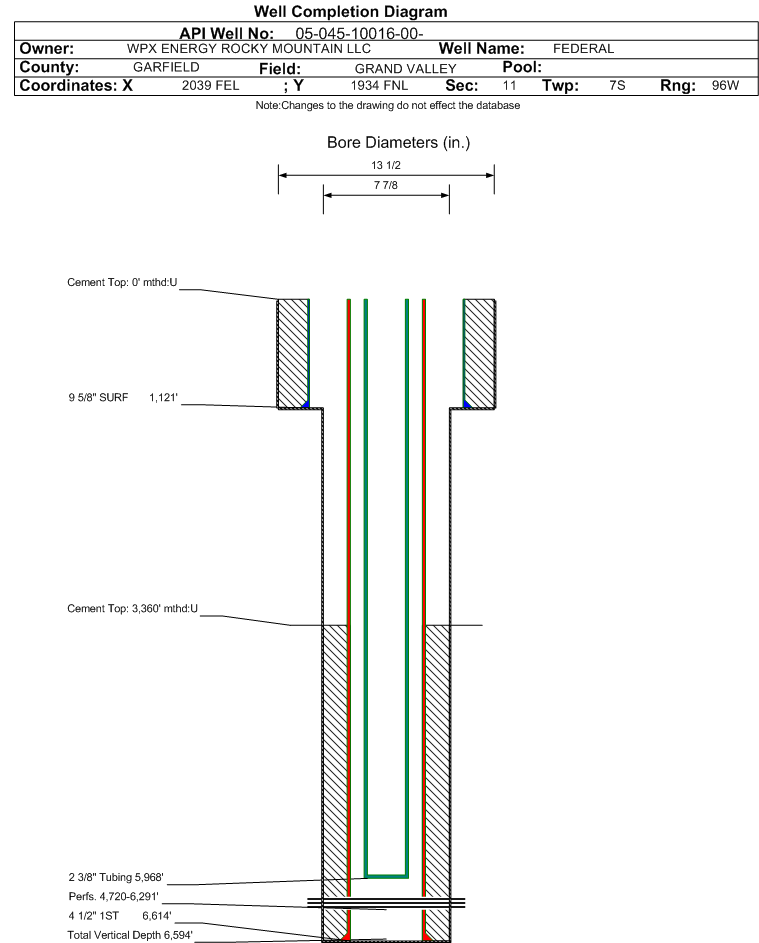

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1121 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 0 ft., Bottom: 1121 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6614 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 750, Top: 3360 ft., Bottom: 6613 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1725 ft.NN
FORT UNION2007 ft.NN
MESAVERDE3426 ft.NN
CAMEO5888 ft.NN
ROLLINS6410 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/30/2004                 Interval Top: 4720 ft.    Interval Bottom: 6291 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:7/25/2004
Treatment Summary:1000 GALS 7 1/2% HCL, 129272# 30/50 SAND, 3033 BBLS SLICKWATER // 750 GALS 7 1/2% HCL, 136852# 30/50 SAND, 3227 BBLS SLICK WATER // 750 GALS 7 1/2% HCL, 119651# 30/50 SAND, 2755 BBLS SLICK WATER // 750 GALS 7 1/2% HCL, 131896# 30/50 SAND, 3312 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:5968 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/30/2004Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1320
CASING_PRESS 1621
MCF_GAS 1320
TUBING_PRESS 1504
Perforation Data:
Interval Top:4720 ft.# Of Holes:78
Interval Bottom:6291 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)13
Total Gas Produced (MCF)11105
GOR854230
GOR DeterminationMCFE
Average BOE per Day5.279
Average MCFE per Day30.635

 Federal Financial Assurance  i Y

 Tribal Well  i No
