COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09996		Well Classification: GW Status: PR - 11/29/2004
Well Name/No:FEDERAL #PA 22-27
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62161
Facility Status:PRStatus Date11/29/2004
FacilityID:271986LocationID:335168
County:GARFIELD #045Location:SENW 27 6S95W 6
Field:PARACHUTE - #67350Elevation:5837 ft.
Basin:PICEANCE BASIN
Planned Location:2159FNL  1287 FWLLat/Long: 39.496459 / -107.989223Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.496591 / -107.989128Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 11/29/2004             Measured TD: 8320 ft.    Vertical TD: 8260 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 11/29/2004
Wellbore PermitDIRECTIONAL
Permit #:20040722 Expiration Date:4/19/2005
Proposed Top PZ Location:Sec: Twp: Footage: 1777 FNL  2029 FWL
Bottom Hole Location:Sec: Twp: Footage: 1777 FNL  2029 FWL
Proposed Depth/Form:8385 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:10/5/2004
Spud Date:8/10/2004Spud Date Is:ACTUAL
Measured TD:8320 ft.Measured PB depth:8284 ft.
True Vertical TD:8260 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1777 FNL  2029 FWL
Bottom Hole Location:Sec: Twp: Footage: 1777 FNL  2029 FWL
Log Types:HIGH RESOLUTION INDUCTION-SPECTRAL DENSITY-DUAL SPACED NEUTRON, CBL

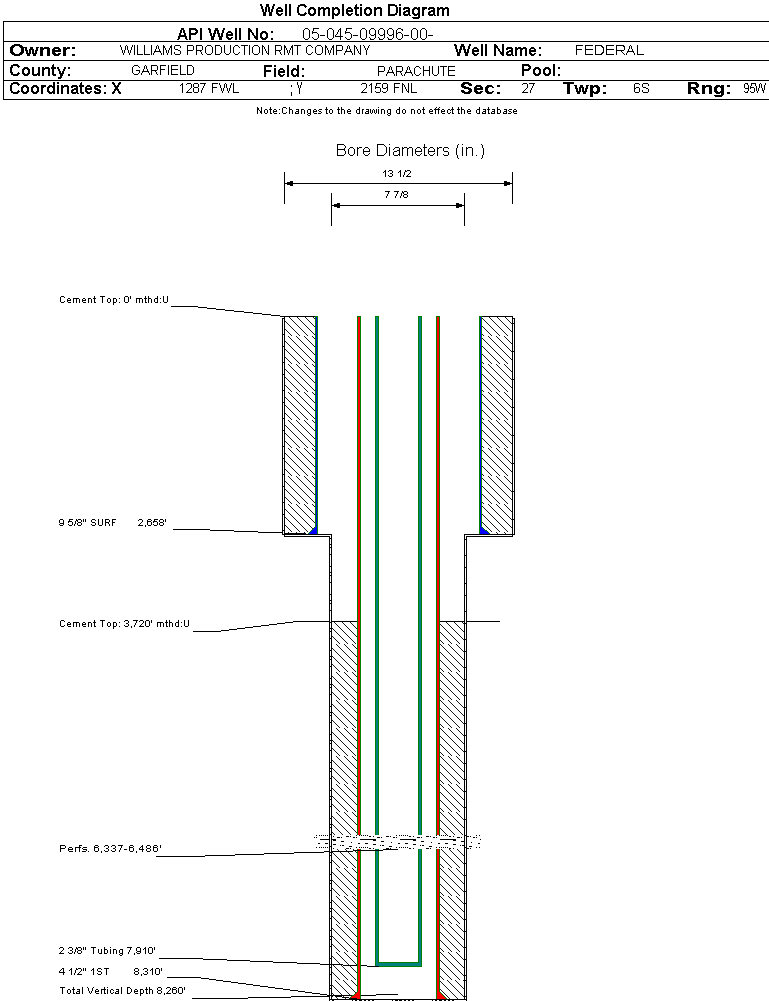

Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2658 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 860, Top: 0 ft., Bottom: 2658 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8310 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 890, Top: 3720 ft., Bottom: 8310 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2504 ft.NN
FORT UNION2760 ft.NN
MESAVERDE4793 ft.NN
CAMEO7539 ft.NN
ROLLINS8296 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 11/29/2004                Interval Top: 6337 ft.    Interval Bottom: 6486 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.203 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:10/5/2004
Treatment Summary:4000 GALS 7-1/2% HCL, 496,530# 20/40, 13,043 BBLS SLICK WATER
Tubing Size:2.375 in.Tubing Setting Depth:7910 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:11/29/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1282
CASING_PRESS 1743
MCF_GAS 1282
TUBING_PRESS 1585
Perforation Data:
Interval Top:6337 ft.# Of Holes:85
Interval Bottom:6486 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)27
Total Gas Produced (MCF)15598
GOR577703
GOR DeterminationMCFE
Average BOE per Day7.445
Average MCFE per Day43.169

 Federal Financial Assurance  i Y

 Tribal Well  i No
