Wellbore #00 Wellbore Classification: GW Status: PR - 9/6/2004 Measured TD: 8861 ft. Vertical TD: 8616 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/6/2004 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20040781 | Expiration Date: | 4/15/2005 | | Proposed Top PZ Location: | Sec:23 Twp: | Footage: 10 FNL 1310 FWL | | Bottom Hole Location: | Sec:23 Twp: | Footage: 10 FNL 1310 FWL | | Proposed Depth/Form: | 9200 ft. | | Surface Mineral Owner Same: | Not available | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55972X | | Formation And Spacing: | Code: CZ-CR , Formation: COZZETTE-CORCORAN , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

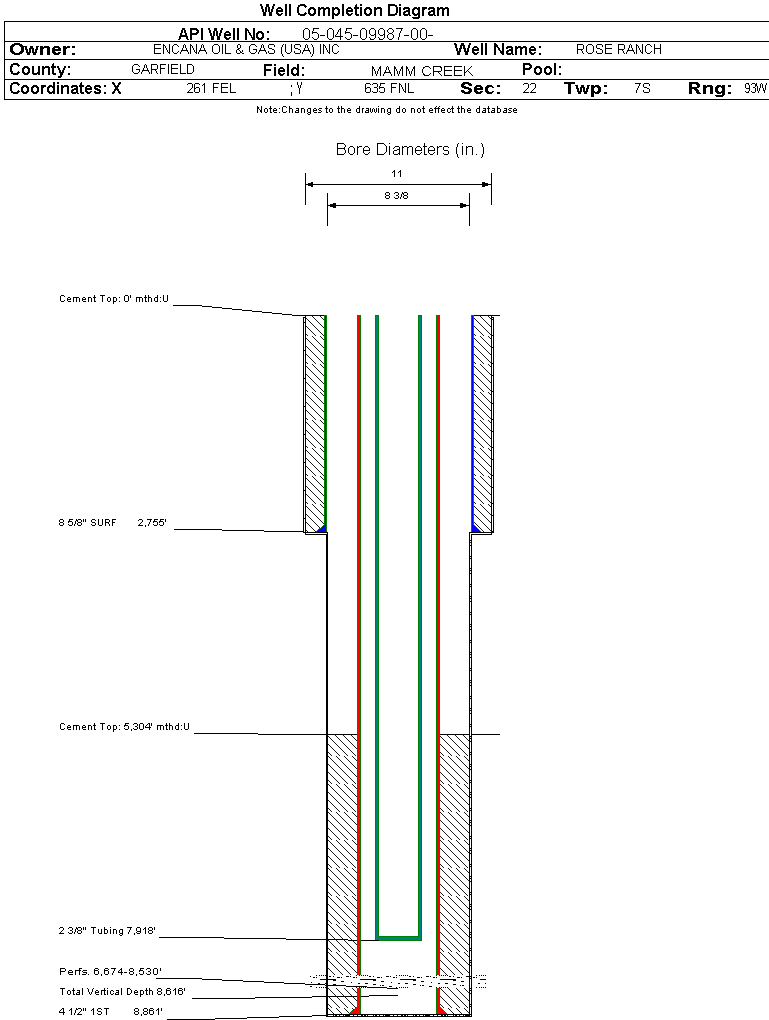

| Wellbore Completed | | Completion Date: | 9/4/2004 | | Spud Date: | 6/28/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 8861 ft. | Measured PB depth: | 8784 ft. | | True Vertical TD: | 8616 ft. | True Vertical PB depth: | 8539 ft. | | Top PZ Location: | Sec:23 Twp: | Footage: 10 FNL 1310 FWL | | Bottom Hole Location: | Sec:23 Twp: | Footage: 10 FNL 1310 FWL | | Log Types: | GR-RST,CBL/GR/COLLAR TEMP W/VDL MAP | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 2755 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 705, Top: 0 ft., Bottom: 2755 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8861 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1000, Top: 5304 ft., Bottom: 8861 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 5674 ft. | N | N | | WILLIAMS FORK | 5675 ft. | 8723 ft. | N | N | | ROLLINS | 8724 ft. | 8861 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 9/6/2004 Interval Top: 6674 ft. Interval Bottom: 8530 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.281 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/4/2004 | | Treatment Summary: | STAGES 1 THROUGH 8 WERE TREATED W/TOTAL OF 25,078 BBL SLICKWATER AND 1,033,000# OF 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7918 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 9/6/2004 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 0 | | BBLS_OIL | 0 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 0 | | CALC_BBLS_OIL | 0 | | CALC_MCF_GAS | 1494 | | CASING_PRESS | 2000 | | MCF_GAS | 1494 | | TUBING_PRESS | 1400 |
| | Perforation Data: | | Interval Top: | 6674 ft. | # Of Holes: | 146 | | Interval Bottom: | 8530 ft. | Hole Size: | 0.32 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 9 |
| Total Gas Produced (MCF) | 13689 |
| GOR | 1521000 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.493 |
| Average MCFE per Day | 37.618 |
| Federal Financial Assurance | i | Y |
|
|
