Wellbore #00 Wellbore Classification: GW Status: PR - 4/9/2005 Measured TD: 8135 ft. Vertical TD: 8023 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/9/2005 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20040679 | Expiration Date: | 4/14/2005 | | Proposed Top PZ Location: | Sec:11 Twp: | Footage: 1350 FSL 2604 FEL | | Bottom Hole Location: | Sec:11 Twp: | Footage: 1350 FSL 2600 FEL | | Proposed Depth/Form: | 8500 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA UNI | Unit Number: | COC 55972X | | Formation And Spacing: | Code: CZ-CR , Formation: COZZETTE-CORCORAN , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

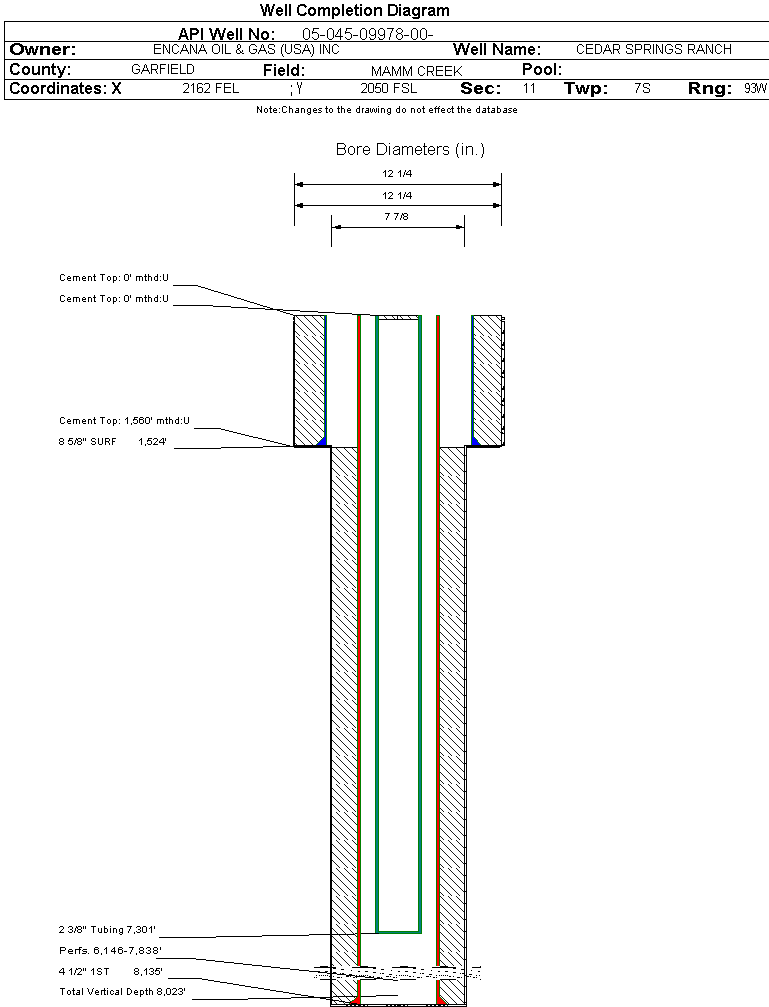

| Wellbore Completed | | Completion Date: | 4/8/2005 | | Spud Date: | 12/30/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 8135 ft. | Measured PB depth: | 8086 ft. | | True Vertical TD: | 8023 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:11 Twp: | Footage: 1350 FSL 2604 FEL | | Bottom Hole Location: | Sec:11 Twp: | Footage: 1350 FSL 2600 FEL | | Log Types: | CBL, PEX | | Casing: | String Type: CONDUCTOR, Hole Size: 12.25 in., Size: 16 in., Top: 0 ft., Depth: 40 ft., Weight: 42 , Citings Type: ACTUAL | | Cement: | Sacks: , Top: 0 ft., Bottom: 40 ft., Determination Method: CALC | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 1524 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 1075, Top: 0 ft., Bottom: 1525 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8135 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1625, Top: 1560 ft., Bottom: 8135 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 4959 ft. | N | N | | WILLIAMS FORK | 4960 ft. | 7994 ft. | N | N | | ROLLINS | 7995 ft. | 8135 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 4/9/2005 Interval Top: 6146 ft. Interval Bottom: 7838 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.188 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 4/8/2005 | | Treatment Summary: | STAGES 1 THROUGH 6 WERE TREATED WITH A TOTAL OF 28,009 BBLS SLICKWATER AND 969,172# OF 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7301 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 4/9/2005 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 40 | | BBLS_OIL | 5 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 40 | | CALC_BBLS_OIL | 5 | | CALC_GOR | 385 | | CALC_MCF_GAS | 1923 | | CASING_PRESS | 2208 | | MCF_GAS | 1923 | | TUBING_PRESS | 2046 |
| | Perforation Data: | | Interval Top: | 6146 ft. | # Of Holes: | 114 | | Interval Bottom: | 7838 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 56 |
| Total Gas Produced (MCF) | 38996 |
| GOR | 696357 |
| GOR Determination | MCFE |
| Average BOE per Day | 18.573 |
| Average MCFE per Day | 107.713 |
| Federal Financial Assurance | i | Y |
|
|
