COGIS - WELL SCOUT CARD

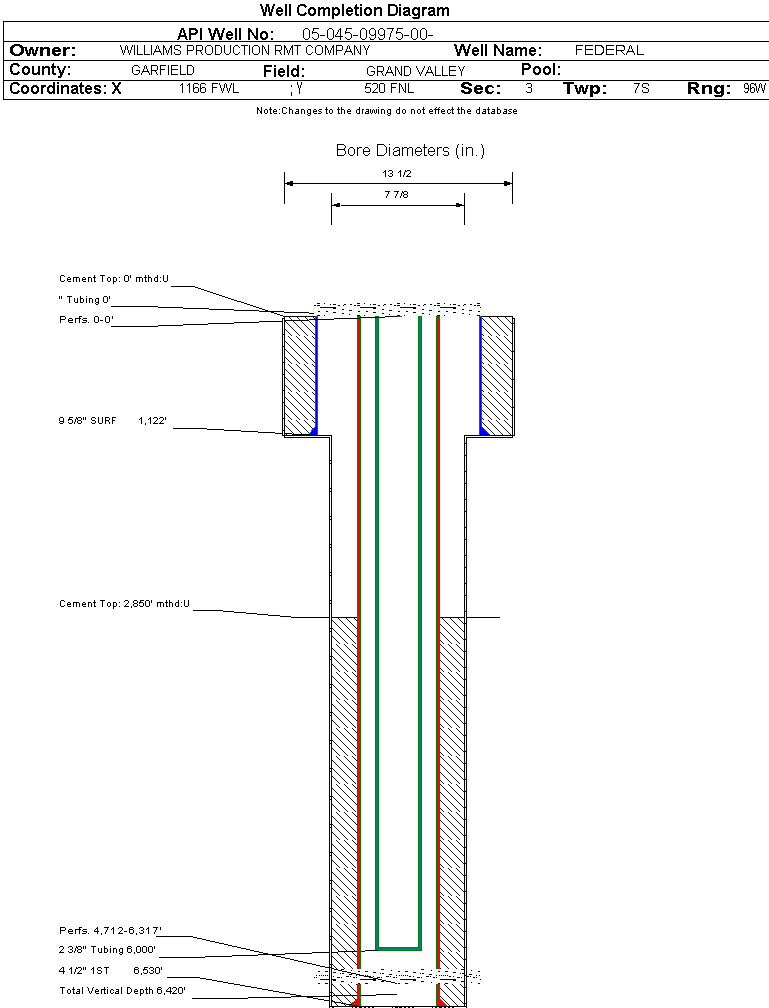

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09975		Well Classification: GW Status: PR - 8/2/2004
Well Name/No:FEDERAL #GM 511-3
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:
Facility Status:PRStatus Date8/2/2004
FacilityID:271855LocationID:334818
County:GARFIELD #045Location:NWNW 3 7S96W 6
Field:GRAND VALLEY - #31290Elevation:5456 ft.
Basin:PICEANCE BASIN
Planned Location:520FNL  1166 FWLLat/Long: 39.471768 / -108.099926Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.471854 / -108.099825Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/2/2004             Measured TD: 6530 ft.    Vertical TD: 6420 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/2/2004
Wellbore PermitDIRECTIONAL
Permit #:20040643 Expiration Date:4/7/2005
Proposed Top PZ Location:Sec: Twp: Footage: 1140 FNL  655 FWL
Bottom Hole Location:Sec: Twp: Footage: 1140 FNL  655 FWL
Proposed Depth/Form:6426 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:6/27/2004
Spud Date:5/15/2004Spud Date Is:ACTUAL
Measured TD:6530 ft.Measured PB depth:6125 ft.
True Vertical TD:6420 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1140 FNL  655 FWL
Bottom Hole Location:Sec: Twp: Footage: 1140 FNL  655 FWL
Log Types:HIGH RESOLUION SPECTRAL DENSITY DUAL SPACED NEUTRON, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1122 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 515, Top: 0 ft., Bottom: 1122 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 6530 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 730, Top: 2850 ft., Bottom: 6530 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1732 ft.NN
FORT UNION2028 ft.NN
MESAVERDE3438 ft.NN
CAMEO5858 ft.NN
ROLLINS6378 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/2/2004                  Interval Top: 4712 ft.    Interval Bottom: 6317 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:6/27/2004
Treatment Summary:1000 GALS 7 1/2% HCL, 114744# 20/40, 2708 BBLS SLICK WATER // 750 GALS 7 1/2% HCL, 135772# 20/40, 3165 BBLS SLICK WATER // 750 GALS 7 1/2% HCL, 96224# 20/40, 2322 BBLS SLICK WATER // 750 GALS 7 1/2% HCL, 169345# 20/40, 3850 BBLS SLICKWATER
Tubing Size:2.375 in.Tubing Setting Depth:6000 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/2/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1072
CASING_PRESS 1160
MCF_GAS 1072
TUBING_PRESS 1069
Perforation Data:
Interval Top:4712 ft.# Of Holes:61
Interval Bottom:6317 ft.Hole Size:0.34 in.

Formation WMFK                     Formation Classification:  GW                     Status:  CM - 8/2/2004

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:
Formation Name:WILLIAMS FORKCommingled:No
Production Method:
Open Hole Completion:No
Formation Treatment
Treatment Date:6/27/2004
Treatment Summary:
Tubing Size:Tubing Setting Depth:
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
No Initial Test Data was found for formation WMFK.
Perforation Data:
Interval Top:# Of Holes:
Interval Bottom:Hole Size:
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
December 2024 - November 2025i
Total Oil Produced (Barrels)14
Total Gas Produced (MCF)8414
GOR601000
GOR DeterminationMCFE
Average BOE per Day4.011
Average MCFE per Day23.281

 Federal Financial Assurance  i Y

 Tribal Well  i No
