COGIS - WELL SCOUT CARD

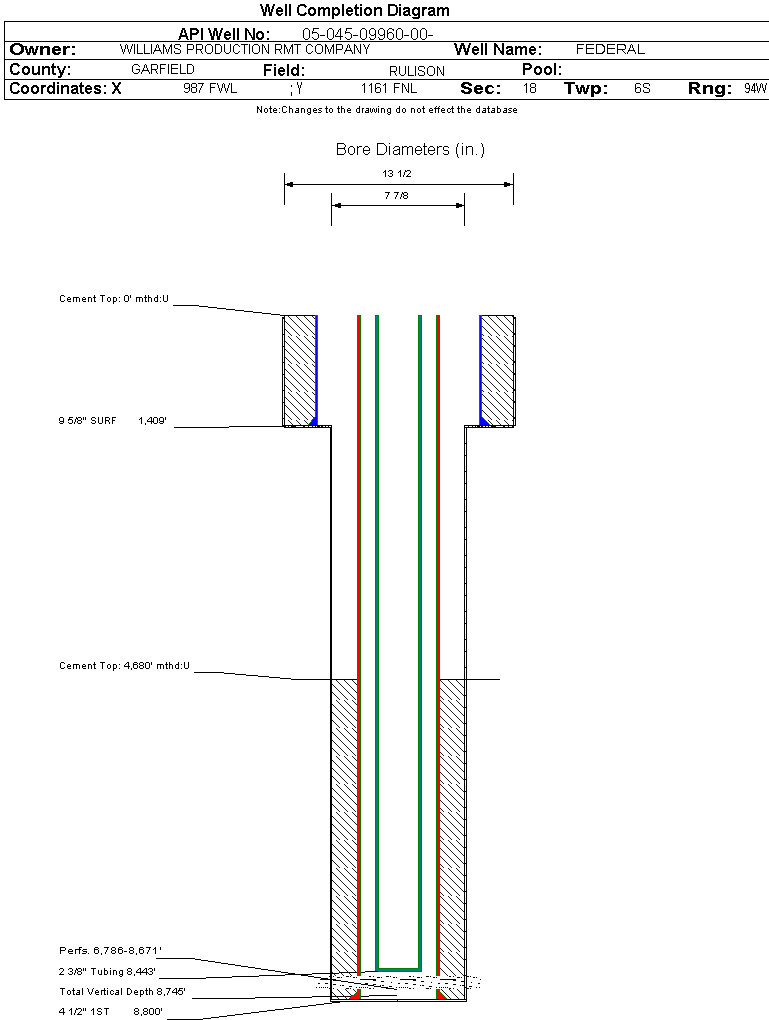

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09960		Well Classification: GW Status: PR - 8/22/2004
Well Name/No:FEDERAL #RWF 11-18
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62160
Facility Status:PRStatus Date8/22/2004
FacilityID:271812LocationID:335569
County:GARFIELD #045Location:NENW 18 6S94W 6
Field:RULISON - #75400Elevation:6164 ft.
Basin:PICEANCE BASIN
Planned Location:1161FNL  987 FWLLat/Long: 39.528839 / -107.934772Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.528931 / -107.934746Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 8/22/2004             Measured TD: 8823 ft.    Vertical TD: 8745 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 8/22/2004
Wellbore Permit
Permit #:20040604 Expiration Date:4/5/2005
Proposed Depth/Form:8950 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-40 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:7/15/2004
Spud Date:5/30/2004Spud Date Is:ACTUAL
Measured TD:8823 ft.Measured PB depth:8765 ft.
True Vertical TD:8745 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 795 FNL  219 FWL
Bottom Hole Location:Sec: Twp: Footage: 809 FNL  232 FWL
Log Types:THERMAL MULTIGATE DECAY LOG, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1409 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 541, Top: 0 ft., Bottom: 1409 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8800 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1020, Top: 4680 ft., Bottom: 8800 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2978 ft.NN
MESAVERDE5370 ft.NN
CAMEO8018 ft.NN
ROLLINS8968 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 8/22/2004                 Interval Top: 6786 ft.    Interval Bottom: 8671 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:7/15/2004
Treatment Summary:750 GALS 7 1/2% HCL, 107879# 30/50, 2542 BBLS SLICK WATER // 1000 GALS 7 1/2% HCL, 112291# 30/50, 2721 BBLS SLICK WATER. // 750 GALS 7 1/2% HCL, 87142# 30/50, 2188 BBLS SLICK WATER // 750 GALS 7 1/2% HCL, 148193# 30/50, 3432 BBLS SLICK WATER
Tubing Size:2.375 in.Tubing Setting Depth:8443 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:8/22/2004Test Method:FLOWING
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 0
BBLS_OIL 0
BTU_GAS 1082
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1465
CASING_PRESS 1658
MCF_GAS 1465
TUBING_PRESS 1494
Perforation Data:
Interval Top:6786 ft.# Of Holes:104
Interval Bottom:8671 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)69
Total Gas Produced (MCF)16102
GOR233362
GOR DeterminationMCFE
Average BOE per Day7.795
Average MCFE per Day45.213

 Federal Financial Assurance  i Y

 Tribal Well  i No
