COGIS - WELL SCOUT CARD

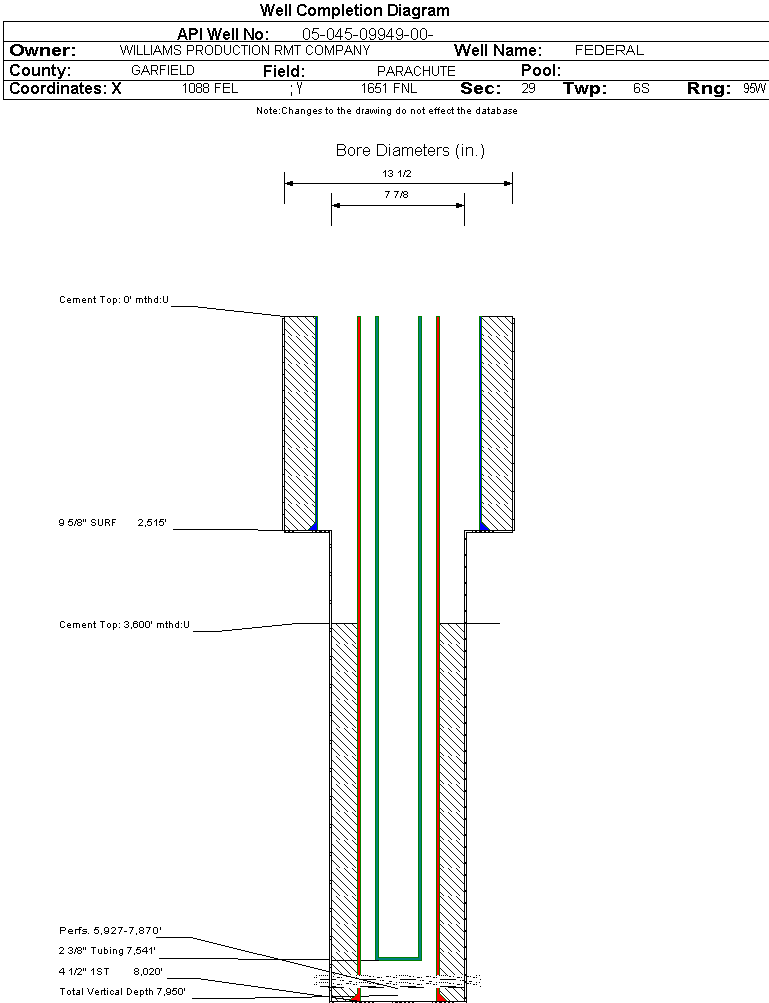

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09949		Well Classification: GW Status: PR - 9/20/2004
Well Name/No:FEDERAL #PA 331-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62162
Facility Status:PRStatus Date9/20/2004
FacilityID:271765LocationID:335255
County:GARFIELD #045Location:SENE 29 6S95W 6
Field:PARACHUTE - #67350Elevation:5890 ft.
Basin:PICEANCE BASIN
Planned Location:1651FNL  1088 FELLat/Long: 39.497959 / -108.016214Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.497968 / -108.016167Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 9/20/2004             Measured TD: 8040 ft.    Vertical TD: 7950 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 9/20/2004
Wellbore PermitDIRECTIONAL
Permit #:20040509 Expiration Date:3/30/2005
Proposed Top PZ Location:Sec: Twp: Footage: 1239 FNL  1996 FEL
Bottom Hole Location:Sec: Twp: Footage: 1239 FNL  2004 FEL
Proposed Depth/Form:8005 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit:
Wellbore Completed
Completion Date:8/17/2004
Spud Date:7/8/2004Spud Date Is:ACTUAL
Measured TD:8040 ft.Measured PB depth:7996 ft.
True Vertical TD:7950 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1239 FNL  1996 FEL
Bottom Hole Location:Sec: Twp: Footage: 1239 FNL  2004 FEL
Log Types:HI DEFINITION INDUCTION COMP Z-DENSILOG COMP NEUTRON GR/CAL, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 2515 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 770, Top: 0 ft., Bottom: 2514 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8020 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 931, Top: 3600 ft., Bottom: 8020 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G2364 ft.NN
FORT UNION2721 ft.NN
MESAVERDE4549 ft.NN
CAMEO7317 ft.NN
ROLLINS7937 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 9/20/2004                 Interval Top: 5927 ft.    Interval Bottom: 7870 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.188 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:8/17/2004
Treatment Summary:1000 GALS 7 1/2% HCL, 121321# 30/50, 2809 BBLS SLICK WATER // 750 GALS 7 1/2% HCL, 140950# 30/50, 3240 BBLS SLICK WATER // 750 GALS 7 1/2% HCL, 121287# 30/50, 3050 BBLS SLICK WATER // 750 GALS 7 1/2% HCL, 93280# 30/50, 2649 BBLS SLICK WATER
Tubing Size:2.375 in.Tubing Setting Depth:7541 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:9/20/2004Test Method:
Hours Tested:24Gas Type:DRY
Gas Disposal:SOLD
Test TypeMeasure
CALC_BBLS_H2O 0
CALC_BBLS_OIL 0
CALC_MCF_GAS 1480
CASING_PRESS 2045
TUBING_PRESS 1929
Perforation Data:
Interval Top:5927 ft.# Of Holes:74
Interval Bottom:7870 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)15
Total Gas Produced (MCF)8643
GOR576200
GOR DeterminationMCFE
Average BOE per Day4.123
Average MCFE per Day23.925

 Federal Financial Assurance  i Y

 Tribal Well  i No
