Wellbore #00 Wellbore Classification: GW Status: PR - 9/1/2023 Measured TD: 9130 ft. Vertical TD: 8957 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/1/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20040571 | Expiration Date: | 3/30/2005 | | Proposed Top PZ Location: | Sec:28 Twp: | Footage: 10 FSL 10 FEL | | Bottom Hole Location: | Sec:28 Twp: | Footage: 10 FSL 10 FEL | | Proposed Depth/Form: | 9500 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GRASS MESA UNIT | Unit Number: | COC 56608X | | Formation And Spacing: | Code: CZ-CR , Formation: COZZETTE-CORCORAN , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

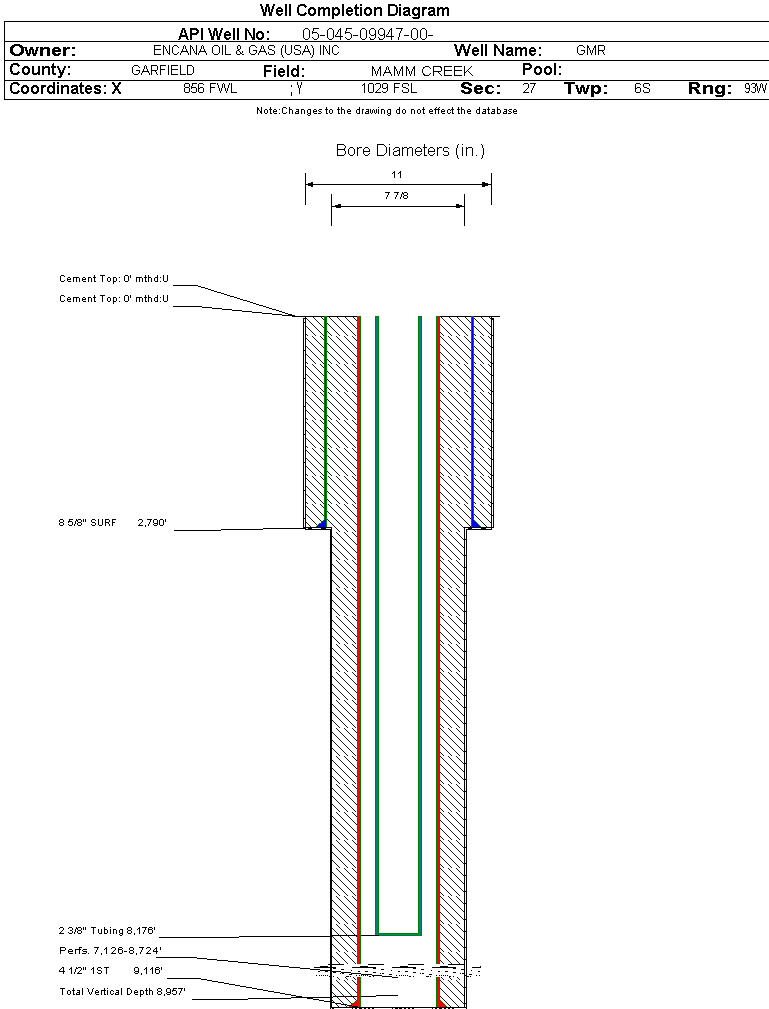

| Wellbore Completed | | Completion Date: | 11/23/2004 | | Spud Date: | 5/19/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 9130 ft. | Measured PB depth: | 9031 ft. | | True Vertical TD: | 8957 ft. | True Vertical PB depth: | 8858 ft. | | Top PZ Location: | Sec:28 Twp: | Footage: 10 FSL 10 FEL | | Bottom Hole Location: | Sec:28 Twp: | Footage: 10 FSL 10 FEL | | Log Types: | GR-PEX,GR-CBL/TEMP | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 2790 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 670, Top: 0 ft., Bottom: 2790 ft., Determination Method: CBL | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 9116 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1450, Top: 0 ft., Bottom: 9116 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 5964 ft. | N | N | | WILLIAMS FORK | 5965 ft. | 9015 ft. | N | N | | ROLLINS | 9016 ft. | 9130 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 9/1/2023 Interval Top: 7126 ft. Interval Bottom: 8724 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 11/23/2004 | | Treatment Summary: | STAGE 1 THROUGH 6 WERE TREATED W/TOTAL OF 20,507 BBL SLICKWATER, 701,500# OF 20-40 SAND, AND 56,000# OF 20-40 PR6000. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8176 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 11/24/2004 | Test Method: | FLOWING | | Hours Tested: | 22 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 264 | | BBLS_OIL | 5 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 288 | | CALC_BBLS_OIL | 5 | | CALC_GOR | 167717 | | CALC_MCF_GAS | 842 | | CASING_PRESS | 1855 | | MCF_GAS | 772 | | TUBING_PRESS | 1414 |
| | Perforation Data: | | Interval Top: | 7126 ft. | # Of Holes: | 94 | | Interval Bottom: | 8724 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 76 |
| Total Gas Produced (MCF) | 14327 |
| GOR | 188513 |
| GOR Determination | MCFE |
| Average BOE per Day | 6.976 |
| Average MCFE per Day | 40.450 |
| Federal Financial Assurance | i | Y |
|
|
