COGIS - WELL SCOUT CARD

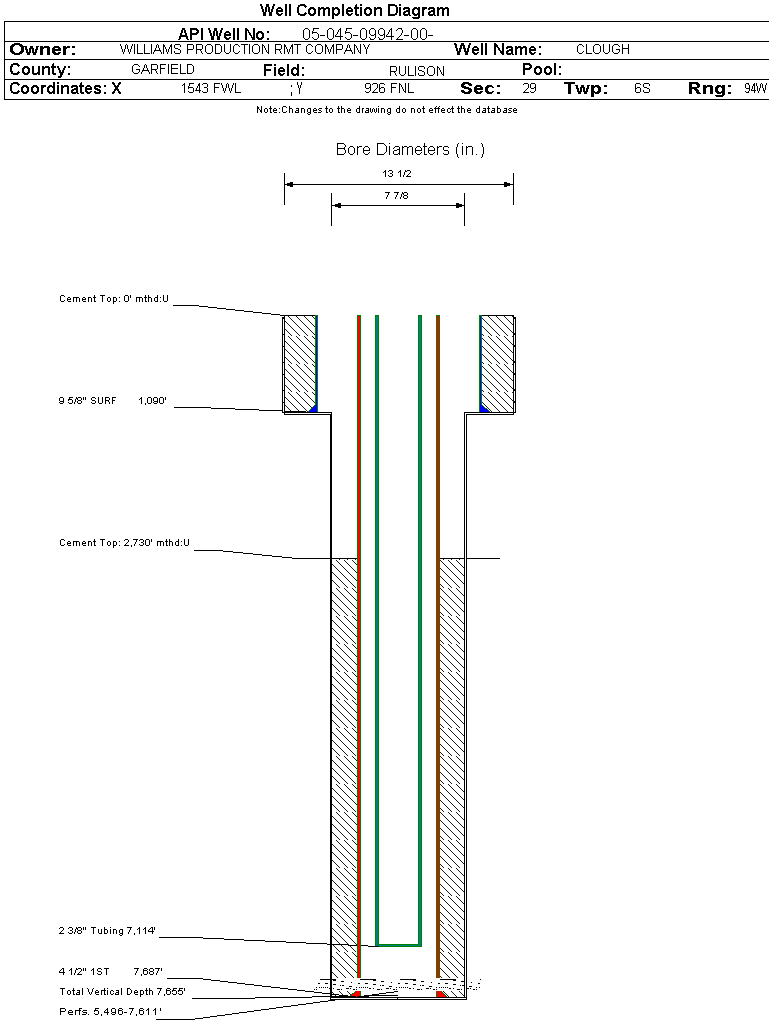

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITGIS Map GISOld GIS Map Old GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09942		Well Classification: GW Status: PR - 6/23/2004
Well Name/No:CLOUGH #RWF 421-29
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COC 62978
Facility Status:PRStatus Date6/23/2004
FacilityID:271709LocationID:335371
County:GARFIELD #045Location:NENW 29 6S94W 6
Field:RULISON - #75400Elevation:5265 ft.
Basin:PICEANCE BASIN
Planned Location:926FNL  1543 FWLLat/Long: 39.500749 / -107.915561Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.500825 / -107.915708Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/23/2004             Measured TD: 7690 ft.    Vertical TD: 7655 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/23/2004
Wellbore PermitDIRECTIONAL
Permit #:20040525 Expiration Date:3/25/2005
Proposed Top PZ Location:Sec: Twp: Footage: 802 FNL  2015 FWL
Bottom Hole Location:Sec: Twp: Footage: 802 FNL  2015 FWL
Proposed Depth/Form:7660 ft.
Surface Mineral Owner Same:Not available
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: N/2
Wellbore Completed
Completion Date:5/20/2004
Spud Date:4/22/2004Spud Date Is:ACTUAL
Measured TD:7690 ft.Measured PB depth:7625 ft.
True Vertical TD:7655 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 802 FNL  2015 FWL
Bottom Hole Location:Sec: Twp: Footage: 802 FNL  2015 FWL
Log Types:CHI PROCESSED TRIPLE COMBO,RESERVOIR MONITOR TOOL ELITE,CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1090 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 480, Top: 0 ft., Bottom: 1089 ft., Determination Method:
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7687 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1085, Top: 2730 ft., Bottom: 7687 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1735 ft.NN
MESAVERDE4123 ft.NN
CAMEO6771 ft.NN
ROLLINS7683 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 6/23/2004                 Interval Top: 5496 ft.    Interval Bottom: 7611 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/20/2004
Treatment Summary:
Tubing Size:2.375 in.Tubing Setting Depth:7114 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/23/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_GOR 155700
CALC_MCF_GAS 1557
CASING_PRESS 1590
MCF_GAS 1557
TUBING_PRESS 1486
Perforation Data:
Interval Top:5496 ft.# Of Holes:99
Interval Bottom:7611 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
February 2025 - January 2026i
Total Oil Produced (Barrels)39
Total Gas Produced (MCF)16723
GOR428794
GOR DeterminationMCFE
Average BOE per Day8.007
Average MCFE per Day46.442

 Federal Financial Assurance  i

 Tribal Well  i No
