Wellbore #00 Wellbore Classification: GW Status: PR - 9/1/2024 Measured TD: 7755 ft. Vertical TD: 7596 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 9/1/2024 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20040675 | Expiration Date: | 3/21/2005 | | Proposed Top PZ Location: | Sec:36 Twp: | Footage: 10 FSL 2310 FWL | | Bottom Hole Location: | Sec:36 Twp: | Footage: 10 FSL 2310 FWL | | Proposed Depth/Form: | 8000 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GRASS MESA UNIT | Unit Number: | COC 56608X | | Formation And Spacing: | Code: CZ-CR , Formation: COZZETTE-CORCORAN , Order: 139-42 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: 139-42 , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-42 , Unit Acreage: , Drill Unit: |
| | |

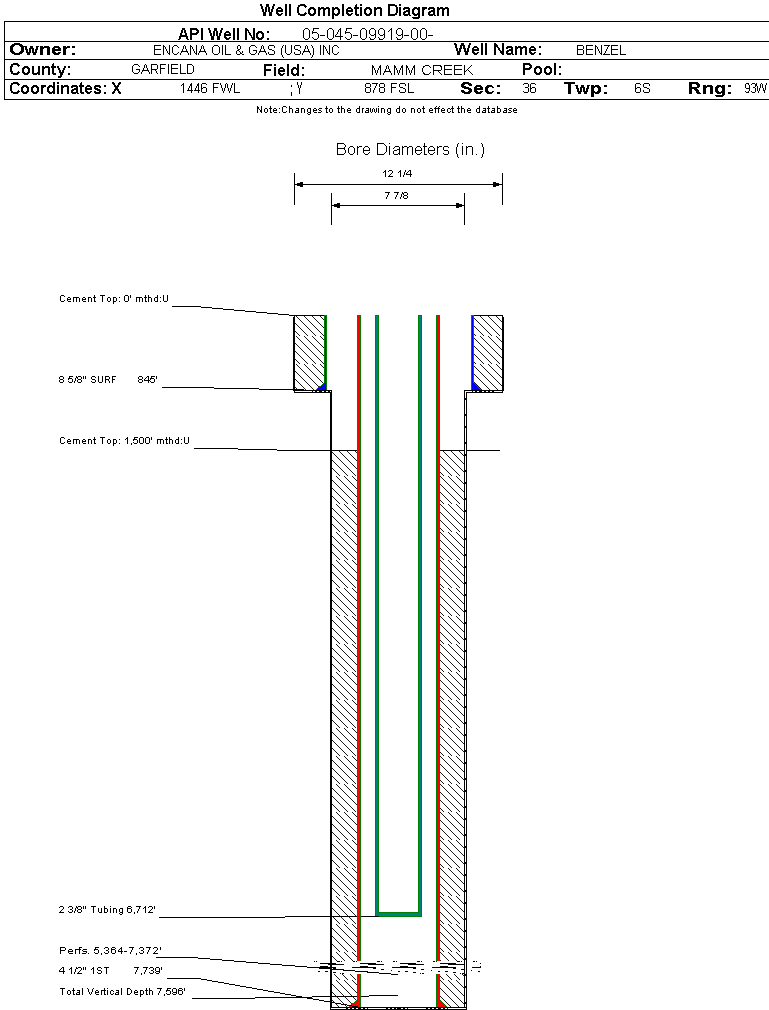

| Wellbore Completed | | Completion Date: | 9/29/2004 | | Spud Date: | 4/21/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 7755 ft. | Measured PB depth: | 7665 ft. | | True Vertical TD: | 7596 ft. | True Vertical PB depth: | 7507 ft. | | Top PZ Location: | Sec:36 Twp: | Footage: 10 FSL 2310 FWL | | Bottom Hole Location: | Sec:36 Twp: | Footage: 10 FSL 2310 FWL | | Log Types: | GR-RST, GR-CBL/TEMP | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 845 ft., Weight: 24 , Citings Type: ACTUAL | | Cement: | Sacks: 450, Top: 0 ft., Bottom: 845 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7739 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1165, Top: 1500 ft., Bottom: 7745 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 4467 ft. | N | N | | WILLIAMS FORK | 4468 ft. | 7557 ft. | N | N | | ROLLINS | 7558 ft. | 7755 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 9/1/2024 Interval Top: 5364 ft. Interval Bottom: 7372 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.281 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 9/29/2004 | | Treatment Summary: | STAGES 1-8 WERE TREATED WITH A TOTAL OF 24,885 BBLS SLICKWATER AND 1,073,000# 20/40 SAND |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6712 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 10/1/2004 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 438 | | BBLS_OIL | 13 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 438 | | CALC_BBLS_OIL | 13 | | CALC_GOR | 166616 | | CALC_MCF_GAS | 2206 | | CASING_PRESS | 1732 | | MCF_GAS | 2206 | | TUBING_PRESS | 1376 |
| | Perforation Data: | | Interval Top: | 5364 ft. | # Of Holes: | 140 | | Interval Bottom: | 7372 ft. | Hole Size: | 0.41 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 33 |
| Total Gas Produced (MCF) | 27391 |
| GOR | 830030 |
| GOR Determination | MCFE |
| Average BOE per Day | 13.032 |
| Average MCFE per Day | 75.583 |
| Federal Financial Assurance | i | Y |
|
|
