Wellbore #00 Wellbore Classification: GW Status: PR - 7/30/2004 Measured TD: 7920 ft. Vertical TD: 7615 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 7/30/2004 | | Wellbore Permit | DIRECTIONAL | | Permit #: | | Expiration Date: | 3/21/2005 | | Proposed Top PZ Location: | Sec:1 Twp: | Footage: 1990 FSL 2630 FWL | | Bottom Hole Location: | Sec:1 Twp: | Footage: 1990 FSL 2630 FWL | | Proposed Depth/Form: | 8100 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | HUNTER MESA FED | Unit Number: | COC 55972X | | Formation And Spacing: | Code: CZ-CR , Formation: COZZETTE-CORCORAN , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

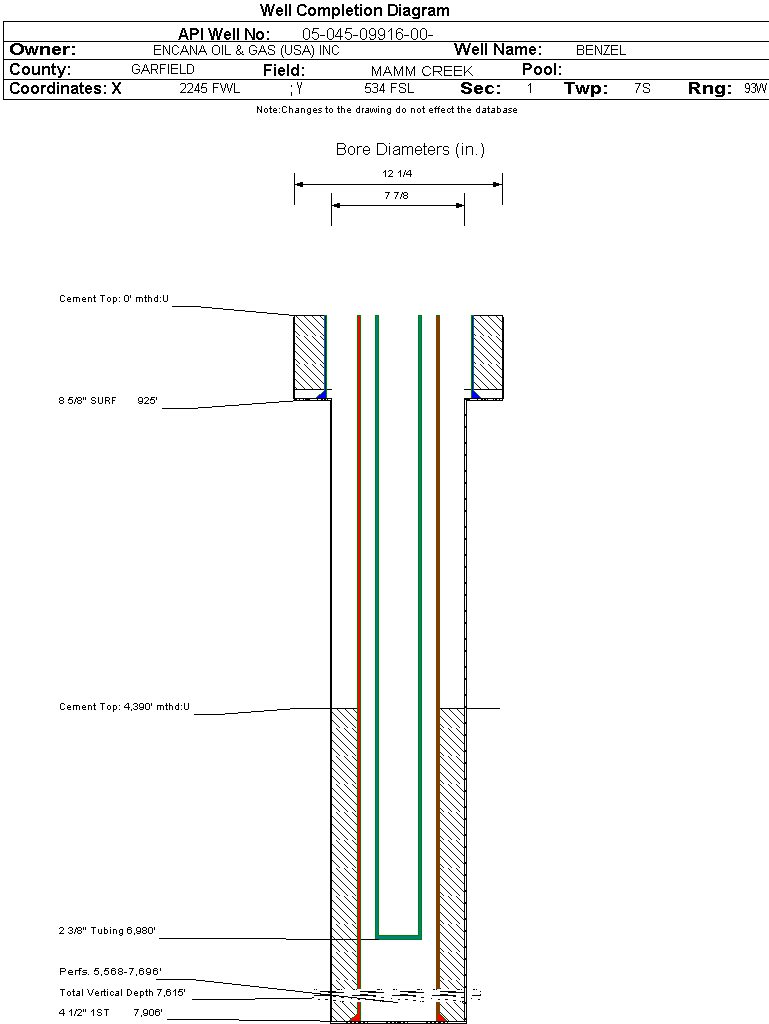

| Wellbore Completed | | Completion Date: | 7/23/2004 | | Spud Date: | 3/26/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 7920 ft. | Measured PB depth: | 7858 ft. | | True Vertical TD: | 7615 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:1 Twp: | Footage: 1990 FSL 2630 FWL | | Bottom Hole Location: | Sec:1 Twp: | Footage: 1990 FSL 2630 FWL | | Log Types: | CBL / GR, RES / SAT | | Casing: | String Type: SURF, Hole Size: 12.25 in., Size: 8.625 in., Top: 0 ft., Depth: 925 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 475, Top: 0 ft., Bottom: 825 ft., Determination Method: CBL | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7906 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 967, Top: 4390 ft., Bottom: 7906 ft., Determination Method: CALC | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 4677 ft. | N | N | | WILLIAMS FORK | 4678 ft. | 7920 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 7/30/2004 Interval Top: 5568 ft. Interval Bottom: 7696 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.313 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 7/23/2004 | | Treatment Summary: | STAGES 1 THROUGH 7 WERE TREATED WITH A TOTAL OF 22,620 BBLS SLICKWATER AND 930,840# OF 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 6980 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 7/30/2004 | Test Method: | FLOWING | | Hours Tested: | 1500 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 21 | | BBLS_OIL | 1120 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 21 | | CALC_BBLS_OIL | 15 | | CALC_GOR | 162267 | | CALC_MCF_GAS | 2434 | | CASING_PRESS | 1500 | | MCF_GAS | 2434 | | TUBING_PRESS | 1120 |
| | Perforation Data: | | Interval Top: | 5568 ft. | # Of Holes: | 126 | | Interval Bottom: | 7696 ft. | Hole Size: | 0.32 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 11 |
| Total Gas Produced (MCF) | 10176 |
| GOR | 925090 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.839 |
| Average MCFE per Day | 28.067 |
| Federal Financial Assurance | i | Y |
|
|
