Wellbore #00 Wellbore Classification: GW Status: PR - 4/1/2023 Measured TD: 8841 ft. Vertical TD: 8763 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 4/1/2023 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20040563 | Expiration Date: | 3/15/2005 | | Proposed Top PZ Location: | Sec:34 Twp: | Footage: 1310 FSL 1990 FEL | | Bottom Hole Location: | Sec:34 Twp: | Footage: 1310 FSL 1990 FEL | | Proposed Depth/Form: | 9200 ft. | | Surface Mineral Owner Same: | No | | Mineral Owner: | FEE | Surface Owner: | FEE | | Unit: | GRASS MESA UNIT | Unit Number: | COC 56608X | | Formation And Spacing: | Code: CZ-CR , Formation: COZZETTE-CORCORAN , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: RLNS , Formation: ROLLINS , Order: , Unit Acreage: , Drill Unit: | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: , Unit Acreage: , Drill Unit: |
| | |

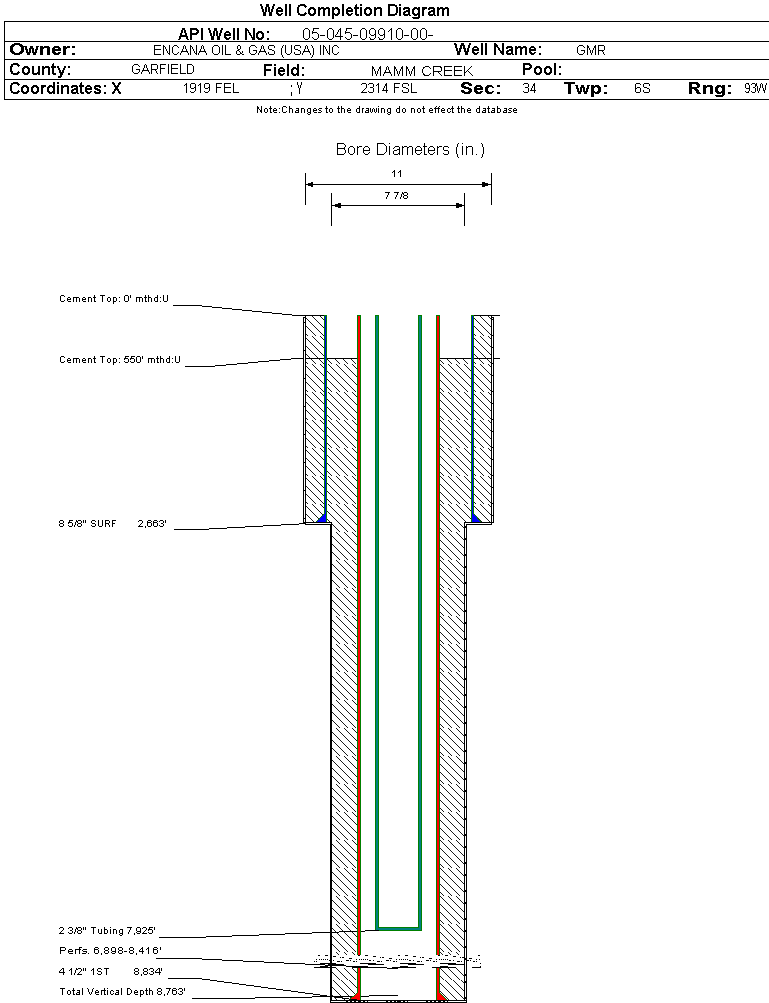

| Wellbore Completed | | Completion Date: | 8/8/2004 | | Spud Date: | 4/21/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 8841 ft. | Measured PB depth: | 8448 ft. | | True Vertical TD: | 8763 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:34 Twp: | Footage: 1310 FSL 1990 FEL | | Bottom Hole Location: | Sec:34 Twp: | Footage: 1310 FSL 1990 FEL | | Log Types: | CBL / TEMP / GR, PEX | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 8.625 in., Top: 0 ft., Depth: 2663 ft., Weight: 32 , Citings Type: ACTUAL | | Cement: | Sacks: 670, Top: 0 ft., Bottom: 2663 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 8834 ft., Weight: 11.6 , Citings Type: ACTUAL | | Cement: | Sacks: 1170, Top: 550 ft., Bottom: 8834 ft., Determination Method: CBL | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 0 ft. | 5811 ft. | N | N | | WILLIAMS FORK | 5812 ft. | 8841 ft. | N | N |
Formation WMFK Formation Classification: GW Status: PR - 4/1/2023 Interval Top: 6898 ft. Interval Bottom: 8416 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.250 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 8/8/2004 | | Treatment Summary: | STAGES 1 THROUGH 4 WERE TREATED WITH A TOTAL OF 13,904 BBLS SLICKWATER AND 569,460# OF 20-40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 7925 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 8/2/2004 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 373 | | BBLS_OIL | 7 | | CALC_BBLS_H2O | 373 | | CALC_BBLS_OIL | 7 | | CALC_GOR | 166620 | | CALC_MCF_GAS | 1198 | | CASING_PRESS | 1244 | | MCF_GAS | 1198 |
| | Perforation Data: | | Interval Top: | 6898 ft. | # Of Holes: | 70 | | Interval Bottom: | 8416 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 17 |
| Total Gas Produced (MCF) | 9268 |
| GOR | 545176 |
| GOR Determination | MCFE |
| Average BOE per Day | 4.425 |
| Average MCFE per Day | 25.647 |
| Federal Financial Assurance | i | Y |
|
|
