COGIS - WELL SCOUT CARD
Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09901		Well Classification: GW Status: PR - 6/21/2004
Well Name/No:CLOUGH #RWF 432-20
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:TEP ROCKY MOUNTAIN LLC - 96850
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:COGJ05
Facility Status:PRStatus Date6/21/2004
FacilityID:271517LocationID:335273
County:GARFIELD #045Location:SWNE 20 6S94W 6
Field:RULISON - #75400Elevation:5411 ft.
Basin:PICEANCE BASIN
Planned Location:2402FNL  1514 FELLat/Long: 39.511269 / -107.908151Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.511344 / -107.908194Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 6/21/2004             Measured TD: 7905 ft.    Vertical TD: 7853 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 6/21/2004
Wellbore PermitDIRECTIONAL
Permit #:20040403 Expiration Date:3/10/2005
Proposed Top PZ Location:Sec: Twp: Footage: 1999 FFN  2031 FEL
Bottom Hole Location:Sec: Twp: Footage: 1999 FNL  2031 FEL
Proposed Depth/Form:7980 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEESurface Owner:FEE
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-38 , Unit Acreage: 320, Drill Unit: E/2

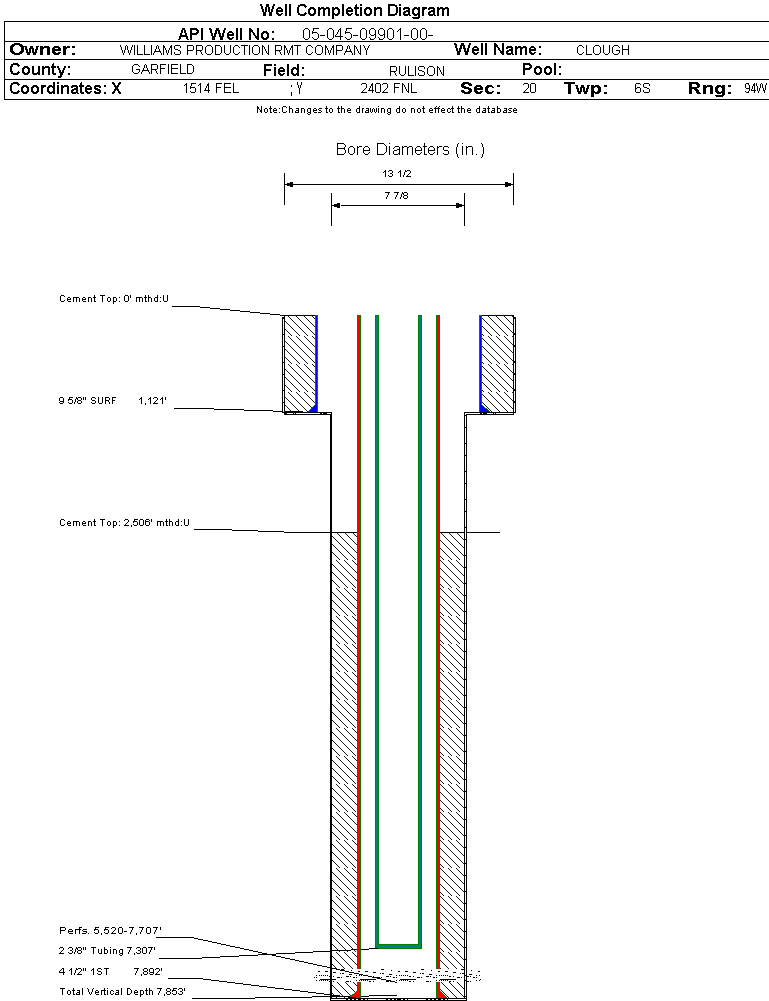

Wellbore Completed
Completion Date:5/22/2004
Spud Date:4/23/2004Spud Date Is:ACTUAL
Measured TD:7905 ft.Measured PB depth:7458 ft.
True Vertical TD:7853 ft.True Vertical PB depth:
Top PZ Location:Sec: Twp: Footage: 1999 FNL  2031 FEL
Bottom Hole Location:Sec: Twp: Footage: 1999 FNL  2031 FEL
Log Types:RESERVOIR MONITOR TOOL ELITE, CBL
Casing:String Type: SURF, Hole Size: 13.5 in., Size: 9.625 in., Top: 0 ft., Depth: 1121 ft., Weight: 32.3 , Citings Type: ACTUAL
Cement:Sacks: 515, Top: 0 ft., Bottom: 1121 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 4.5 in., Top: 0 ft., Depth: 7892 ft., Weight: 11.6 , Citings Type: ACTUAL
Cement:Sacks: 1125, Top: 2506 ft., Bottom: 7891 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH G1847 ft.NN
MESAVERDE4303 ft.NN
CAMEO6958 ft.NN

Formation WFCM                     Formation Classification:  GW                     Status:  PR - 6/21/2004                 Interval Top: 5520 ft.    Interval Bottom: 7707 ft.

 Completed Information for Formation WILLIAMS FORK - CAMEO
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORK - CAMEOCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:5/22/2004
Treatment Summary:5520-5646: 750GALS 7 1/2% HCL, 13850# 20/40, 2405 BBLS SLICK WATER, 509.9 BBLS CO2; 5746-6085: 750 GALS 7 1/2% HCL, 142550# 20/40, 2610 BBLS SLICK WATER, 604.9 BBLS CO2; 6170-6381: 750 GALS 7 1/2% HCL, 149804# 20/40, 2683 BBLS SLICK WATER, 607.6 BBLS
Tubing Size:2.375 in.Tubing Setting Depth:7307 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:6/21/2004Test Method:
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
CALC_GOR 167200
CALC_MCF_GAS 1672
CASING_PRESS 1578
TUBING_PRESS 1475
Perforation Data:
Interval Top:5520 ft.# Of Holes:94
Interval Bottom:7707 ft.Hole Size:0.34 in.
Primary Well Designation:
None      i
            All DesignationsDate
Reported PluggedN
Out Of Service RepurposedN
Out Of ServiceN
Inactive ExceptionN
Noticed InactiveN
Defined InactiveN
Low ProducingN

BOE/MCFE/GOR Calculations
Production for Previous 12 Months
November 2024 - October 2025i
Total Oil Produced (Barrels)58
Total Gas Produced (MCF)16779
GOR289293
GOR DeterminationMCFE
Average BOE per Day8.087
Average MCFE per Day46.904

 Federal Financial Assurance  i

 Tribal Well  i No
