Wellbore #00 Wellbore Classification: GW Status: PR - 12/9/2004 Measured TD: 8970 ft. Vertical TD: 8885 ft.| Wellbore Data for Original Wellbore | Wellbore Classification: GW PR - 12/9/2004 | | Wellbore Permit | DIRECTIONAL | | Permit #: | 20040343 | Expiration Date: | 3/10/2005 | | Proposed Top PZ Location: | Sec:1 Twp: 7S 94W | Footage: 1800 FSL 500 FWL | | Bottom Hole Location: | Sec:1 Twp: 7S 94W | Footage: 1800 FSL 500 FWL | | Proposed Depth/Form: | 8941 ft. | | Surface Mineral Owner Same: | Yes | | Mineral Owner: | FEDERAL | Surface Owner: | FEDERAL | | Unit: | | Unit Number: | | | Formation And Spacing: | Code: WMFK , Formation: WILLIAMS FORK , Order: 139-39 , Unit Acreage: 640, Drill Unit: 640 | | Casing: | String Type: CONDUCTOR, Hole Size: 16 in., Size: 13.375 in., Top: , Depth: 90 ft., Weight: 54 , Citings Type: PLANNED | | Cement: | Sacks: 10, Top: 0 ft., Bottom: 90 ft. |
| | |

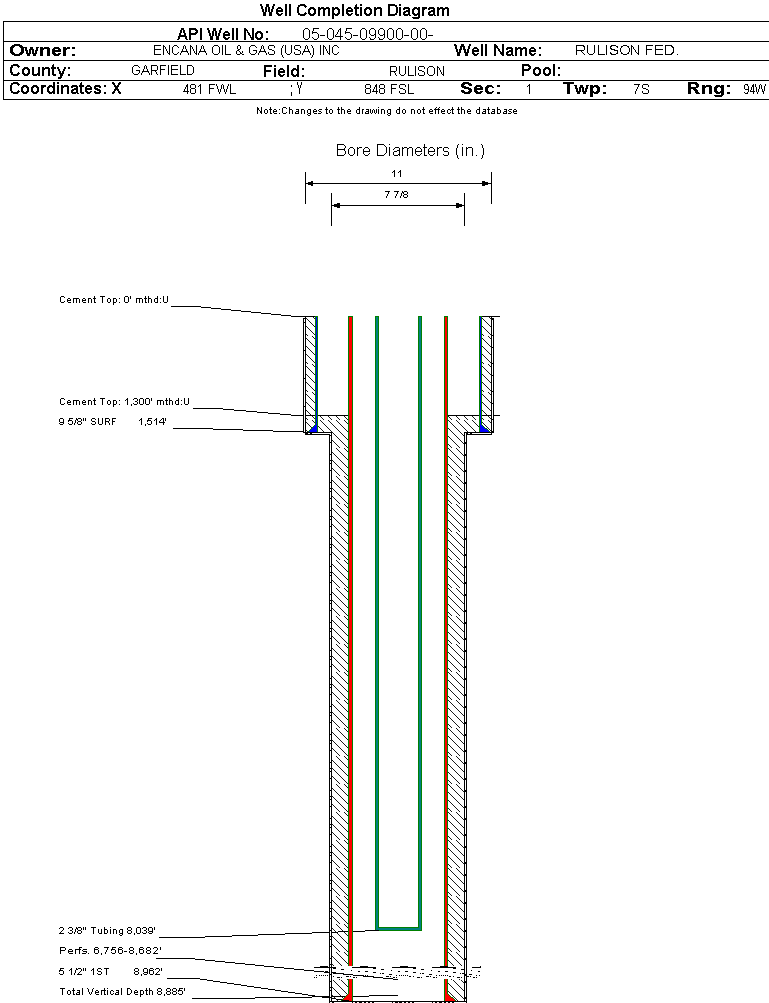

| Wellbore Completed | | Completion Date: | 12/8/2004 | | Spud Date: | 5/25/2004 | Spud Date Is: | ACTUAL | | Measured TD: | 8970 ft. | Measured PB depth: | 8883 ft. | | True Vertical TD: | 8885 ft. | True Vertical PB depth: | | | Top PZ Location: | Sec:1 Twp: 7S 94W | Footage: 1800 FSL 500 FWL | | Bottom Hole Location: | Sec:1 Twp: 7S 94W | Footage: 1800 FSL 500 FWL | | Log Types: | RESERVOIR SATURATION TOOL/GR/CCL, CBL/GR/CCL/TEMPERATURE LOG | | Log Types: | CBL/GR/CCL, RTS/GR/CCL | | Casing: | String Type: SURF, Hole Size: 11 in., Size: 9.625 in., Top: 0 ft., Depth: 1514 ft., Weight: 36 , Citings Type: ACTUAL | | Cement: | Sacks: 500, Top: 0 ft., Bottom: 1514 ft., Determination Method: CALC | | Casing: | String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8962 ft., Weight: 17 , Citings Type: ACTUAL | | Cement: | Sacks: 600, Top: 1300 ft., Bottom: 8970 ft., Determination Method: CBL | | Casing: | String Type: S.C. 2.1, Hole Size: , Size: , Top: , Depth: 6593 ft., Weight: , Citings Type: ACTUAL | | Cement: | Sacks: 50, Top: , Bottom: , Determination Method: | | Formation | Interval Top | Log Bottom | Cored | DSTs | | WASATCH | 2450 ft. | | N | N | | WILLIAMS FORK | 5972 ft. | | N | N |
Formation WMFK Formation Classification: GW Status: PR - 12/9/2004 Interval Top: 6756 ft. Interval Bottom: 8682 ft.| Completed Information for Formation WILLIAMS FORK | | 1st Production Date: | N/A | Choke Size: | 0.219 in. | | Formation Name: | WILLIAMS FORK | Commingled: | No | | Production Method: | FLOWING | | Open Hole Completion: | No |
| | Formation Treatment | | Treatment Date: | 12/8/2004 | | Treatment Summary: | STAGES 1-7 TREATED WITH 25077 BBLS SLICKWATER, 938,690 LBS 20/40 SAND. |
| | Tubing Size: | 2.375 in. | Tubing Setting Depth: | 8039 ft. | | Tubing Packer Depth: | | Tubing Multiple Packer: | | | Open Hole Top: | | Open Hole Bottom: | | | Initial Test Data: | | Test Date: | 12/9/2004 | Test Method: | FLOWING | | Hours Tested: | 24 | Gas Type: | | | Gas Disposal: | SOLD | |
| Test Type | Measure |
|---|
| BBLS_H2O | 154 | | BBLS_OIL | 15 | | BTU_GAS | 1170 | | CALC_BBLS_H2O | 154 | | CALC_BBLS_OIL | 15 | | CALC_GOR | 79667 | | CALC_MCF_GAS | 1195 | | CASING_PRESS | 2346 | | MCF_GAS | 1195 | | TUBING_PRESS | 1836 |
| | Perforation Data: | | Interval Top: | 6756 ft. | # Of Holes: | 130 | | Interval Bottom: | 8682 ft. | Hole Size: | 0.34 in. |
|
|
|
|
|
|
|
| Reported Plugged | N | |
| Out Of Service Repurposed | N | |
| Out Of Service | N | |
| Inactive Exception | N | |
| Noticed Inactive | N | |
| Defined Inactive | N | |
| Low Producing | N | |
| Total Oil Produced (Barrels) | 0 |
| Total Gas Produced (MCF) | 23726 |
| GOR | |
| GOR Determination | MCFE |
| Average BOE per Day | 11.204 |
| Average MCFE per Day | 64.994 |
| Federal Financial Assurance | i | Y |
|
|
