Facility Detail

COGIS - WELL SCOUT CARD

Related Insp MIT GIS Doc COA Wellbore Orders Bradenhead
Surface Location API# 05-045-09899		Well Classification: GW	Status: PR - 9/1/2017
Well Name/No:	RULISON FED #2-444D (Click Well Name for Production Data)	Click Here for Transporter Gatherer Info
Operator:	QB ENERGY OPERATING LLC - 10844 (Click Operator Name for Company Detail Report)	Federal Or State Lease #:	C 46029
Facility Status:	PR	Status Date	9/1/2017
FacilityID:	271519	LocationID:	334667
County:	GARFIELD #045	Location:	SWSW 1 7S94W 6
Field:	RULISON - #75400	Elevation:	6813 ft.
Basin:	PICEANCE BASIN
Planned Location:	845FSL 467 FWL	Lat/Long: 39.462650 / -107.843608	Lat/Long Source: Calculated From Footages
As Drilled Location:	Footages Not Available	Lat/Long: 39.462790 / -107.843700	Lat/Long Source: Field Measured


Wellbore And Formation Details -- select either a wellbore Or formation to expand.

Wellbore #00 Wellbore Classification: GW Status: PR - 9/1/2017 Measured TD: 8956 ft. Vertical TD: 8871 ft.

Wellbore Data for Original Wellbore		Wellbore Classification: GW PR - 9/1/2017
Wellbore Permit			DIRECTIONAL
Permit #:	20040342	Expiration Date:	3/10/2005
Proposed Top PZ Location:	Sec:2 Twp: 7S 94W	Footage: 400 FSL 400 FEL
Bottom Hole Location:	Sec:2 Twp: 7S 94W	Footage: 400 FSL 400 FEL
Proposed Depth/Form:	8906 ft.
Surface Mineral Owner Same:	Yes
Mineral Owner:	FEDERAL	Surface Owner:	FEDERAL
Unit:		Unit Number:
Formation And Spacing:	Code: WMFK , Formation: WILLIAMS FORK , Order: 139-39 , Unit Acreage: 640, Drill Unit: SEC.2
Casing:	String Type: CONDUCTOR, Hole Size: 16 in., Size: 13.375 in., Top: , Depth: 90 ft., Weight: 54 , Citings Type: PLANNED
Cement:	Sacks: 10, Top: 0 ft., Bottom: 90 ft.

Wellbore Completed
Completion Date:	12/11/2004
Spud Date:	6/8/2004	Spud Date Is:	ACTUAL
Measured TD:	8956 ft.	Measured PB depth:	8888 ft.
True Vertical TD:	8871 ft.	True Vertical PB depth:
Top PZ Location:	Sec:2 Twp: 7S 94W	Footage: 400 FSL 400 FEL
Bottom Hole Location:	Sec:2 Twp: 7S 94W	Footage: 400 FSL 400 FEL
Log Types:	RESERVOIR SATURATION TOOL/GR/CCL,CBL/GR/CCL/TEMP.LOG
Log Types:	CBL/GR/CCL, RTS/GR/CCL

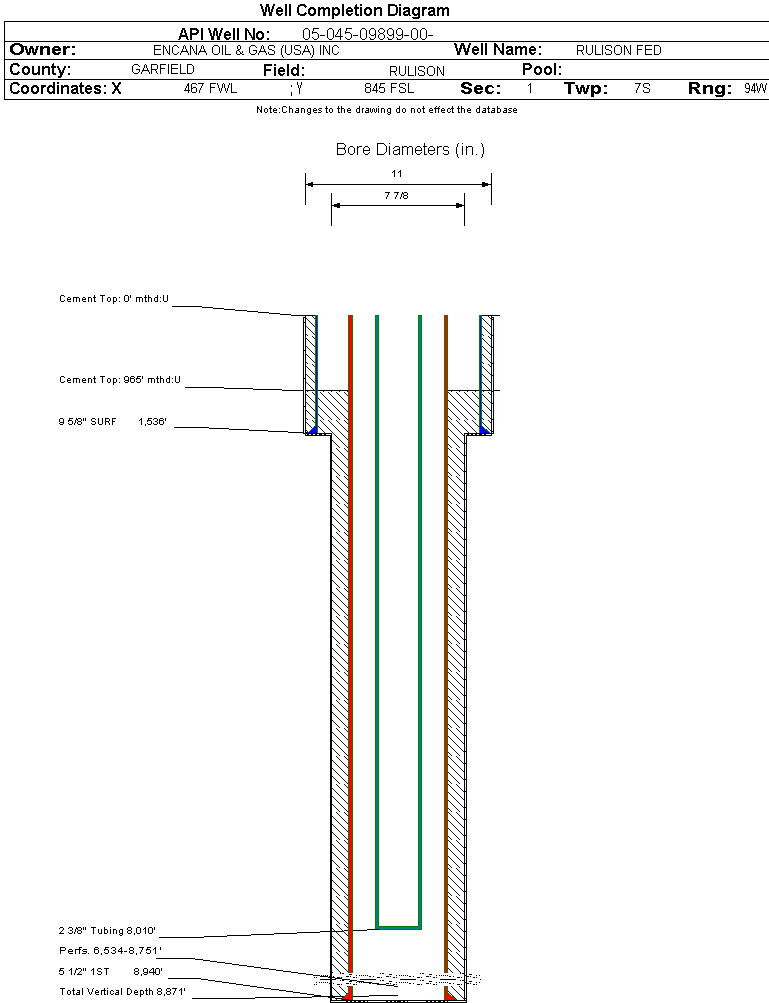

Casing:	String Type: SURF, Hole Size: 11 in., Size: 9.625 in., Top: 0 ft., Depth: 1536 ft., Weight: 36 , Citings Type: ACTUAL
Cement:	Sacks: 500, Top: 0 ft., Bottom: 1536 ft., Determination Method: CALC
Casing:	String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8940 ft., Weight: 17 , Citings Type: ACTUAL
Cement:	Sacks: 1550, Top: 965 ft., Bottom: 8956 ft., Determination Method: CBL
Formation	Interval Top	Log Bottom	Cored	DSTs
WASATCH	0 ft.		N	N
WASATCH G	2285 ft.		N	N
WILLIAMS FORK	5561 ft.		N	N
ROLLINS	8793 ft.		N	N

Formation WMFK Formation Classification: GW Status: PR - 9/1/2017 Interval Top: 6534 ft. Interval Bottom: 8751 ft.

Completed Information for Formation WILLIAMS FORK

1st Production Date:	N/A	Choke Size:	0.219 in.
Formation Name:	WILLIAMS FORK	Commingled:	No
Production Method:	FLOWING
Open Hole Completion:	No

Formation Treatment
Treatment Date:	12/11/2004
Treatment Summary:	STAGES 1-8 TREATED WITH; 42903 BBLS OF SLICKWATER, 876,000 LBS 20/40 SAND.

Test Type	Measure
Tubing Size:	2.375 in.	Tubing Setting Depth:	8010 ft.
Tubing Packer Depth:		Tubing Multiple Packer:
Open Hole Top:		Open Hole Bottom:
Initial Test Data:
Test Date:	12/11/2004	Test Method:	FLOWING
Hours Tested:	24	Gas Type:
Gas Disposal:	SOLD
BBLS_H2O	87
BBLS_OIL	10
BTU_GAS	1170
CALC_BBLS_H2O	87
CALC_BBLS_OIL	10
CALC_GOR	171800
CALC_MCF_GAS	1718
CASING_PRESS	2247
MCF_GAS	1718
TUBING_PRESS	1947

Perforation Data:
Interval Top:	6534 ft.	# Of Holes:	148
Interval Bottom:	8751 ft.	Hole Size:	0.36 in.

Federal Financial Assurance

Tribal Well
