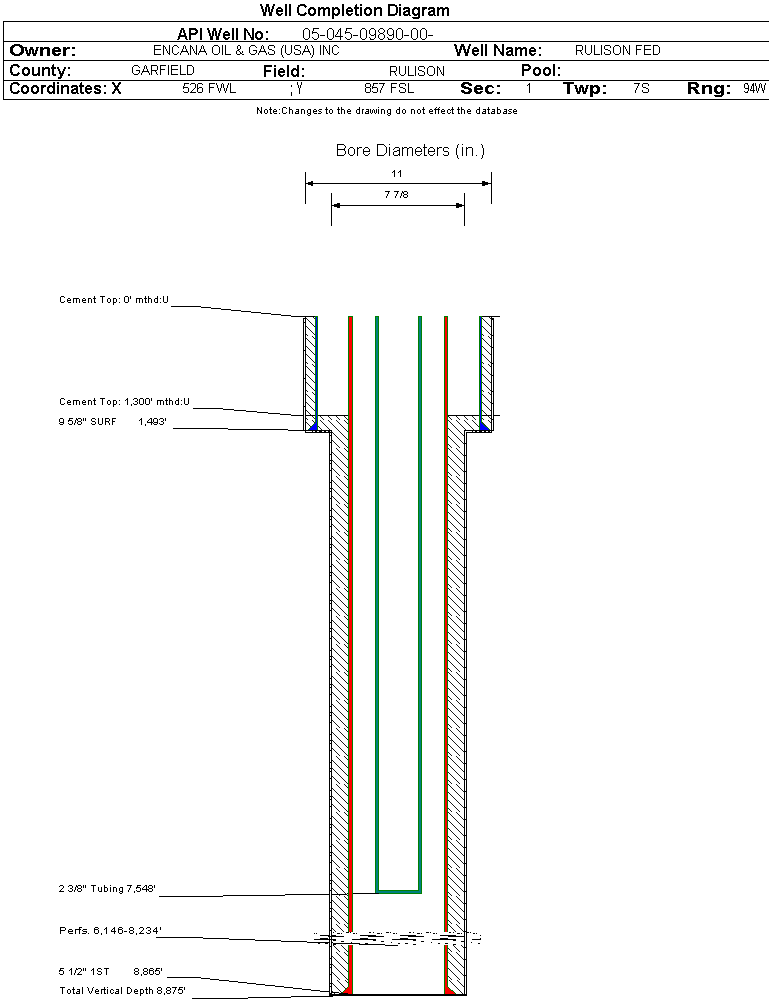

Click image to view related facilities. Related  Click image to view inspection information. InspClick image to view MIT information. MITClick image to access interactive map at well/facility location. GISClick image to view imaged documents for this well/facility. DocClick image to view imaged documents for this well/facility. COAClick image to view wellbore completion diagram. WellboreClick image to search for orders within this facility's section. OrdersClick image to view bradenhead scoutcard data. Bradenhead
 Surface Location
 API# 05-045-09890		Well Classification: GW Status: PR - 4/1/2021
Well Name/No:RULISON FED #1-423D
(Click Well Name for Production Data)		Click Here for Transporter Gatherer Info
Operator:QB ENERGY OPERATING LLC - 10844
(Click Operator Name for Company Detail Report)		Federal Or State Lease #:C 46029
Facility Status:PRStatus Date4/1/2021
FacilityID:271473LocationID:334667
County:GARFIELD #045Location:SWSW 1 7S94W 6
Field:RULISON - #75400Elevation:6813 ft.
Basin:PICEANCE BASIN
Planned Location:857FSL  526 FWLLat/Long: 39.462680 / -107.843398Lat/Long Source: Calculated From Footages
As Drilled Location:Footages Not AvailableLat/Long: 39.462830 / -107.843490Lat/Long Source: Field Measured
 Wellbore And Formation Details -- select either a wellbore Or formation to expand.


Wellbore #00             Wellbore Classification: GW             Status: PR - 4/1/2021             Measured TD: 8875 ft.

 Wellbore Data for Original WellboreWellbore Classification: GW        PR - 4/1/2021
Wellbore PermitDIRECTIONAL
Permit #:20040341 Expiration Date:3/8/2005
Proposed Top PZ Location:Sec:1 Twp: 94W SESW Footage: 400 FSL  1600 FWL
Bottom Hole Location:Sec:1 Twp: 7S 94W Footage: 400 FSL  1600 FWL
Proposed Depth/Form:8853 ft.
Surface Mineral Owner Same:Yes
Mineral Owner:FEDERALSurface Owner:FEDERAL
Unit: Unit Number:
Formation And Spacing:Code: WMFK , Formation: WILLIAMS FORK , Order: 139-39 , Unit Acreage: 640, Drill Unit: SEC.1
Casing:String Type: CONDUCTOR, Hole Size: 16 in., Size: 13.375 in., Top: , Depth: 90 ft., Weight: 54 , Citings Type: PLANNED
Cement:Sacks: 10, Top: 0 ft., Bottom: 90 ft.
Wellbore Completed
Completion Date:N/A
Spud Date:4/13/2004Spud Date Is:ACTUAL
Measured TD:8875 ft.Measured PB depth:
True Vertical TD:True Vertical PB depth:
Top PZ Location:Sec:1 Twp: 94W SESWFootage: 400 FSL  1600 FWL
Bottom Hole Location:Sec:1 Twp: 7S 94WFootage: 400 FSL  1600 FWL
Log Types:RESERVOIR SATURATION TOOL/GR/CCL, CBL/GR/CCL/TEMPERATURE LOG
Casing:String Type: SURF, Hole Size: 11 in., Size: 9.625 in., Top: 0 ft., Depth: 1493 ft., Weight: 36 , Citings Type: ACTUAL
Cement:Sacks: 575, Top: 0 ft., Bottom: 1493 ft., Determination Method: CALC
Casing:String Type: 1ST, Hole Size: 7.875 in., Size: 5.5 in., Top: 0 ft., Depth: 8865 ft., Weight: 17 , Citings Type: ACTUAL
Cement:Sacks: 1370, Top: 1300 ft., Bottom: 8875 ft., Determination Method: CBL
FormationInterval TopLog BottomCoredDSTs
WASATCH0 ft.NN
WILLIAMS FORK5454 ft.NN

Formation WMFK                     Formation Classification:  GW                     Status:  PR - 4/1/2021                  Interval Top: 6146 ft.    Interval Bottom: 8234 ft.

 Completed Information for Formation WILLIAMS FORK
1st Production Date:N/AChoke Size:0.219 in.
Formation Name:WILLIAMS FORKCommingled:No
Production Method:FLOWING
Open Hole Completion:No
Formation Treatment
Treatment Date:12/2/2004
Treatment Summary:STAGES 1-7 TREATED WITH: 25,632 BBLS OF SLICKWATER, 954,080 LBS 20/40 SAND.
Tubing Size:2.375 in.Tubing Setting Depth:7548 ft.
Tubing Packer Depth:Tubing Multiple Packer:
Open Hole Top:Open Hole Bottom:
Initial Test Data:
Test Date:12/2/2004Test Method:FLOWING
Hours Tested:24Gas Type:
Gas Disposal:SOLD
Test TypeMeasure
BBLS_H2O 3
BBLS_OIL 1
BTU_GAS 1170
CALC_BBLS_H2O 3
CALC_BBLS_OIL 1
CALC_GOR 148700
CALC_MCF_GAS 1487
CASING_PRESS 1913
MCF_GAS 14873
TUBING_PRESS 1578
Perforation Data:
Interval Top:6146 ft.# Of Holes:142
Interval Bottom:8234 ft.Hole Size:0.36 in.
